What Are the Different Types of Solar Panel Connectors?

Solar panel connectors are the unsung heroes of any photovoltaic (PV) system. These small but critical components are responsible for creating secure, reliable, and weatherproof electrical connections between your solar panels, inverters, charge controllers, and batteries. Without them, efficiently transferring the power generated by your panels would be nearly impossible, requiring complex, hard-wired installations that are impractical for maintenance or expansion.

This article will explore the different types of solar panel connectors available, explain why they are so important, and help you understand which one is the right choice for your system. While you’ll most commonly encounter the industry-standard connector, understanding the landscape of older and alternative types is crucial for compatibility and safety.

What Is a Solar Panel Connector?

A solar panel connector is a specialized electrical device designed to carry the direct current (DC) electricity produced by your solar panels. Its primary function is to link panels together (in series or parallel) and connect them to other key components in your PV system, such as inverters and charge controllers.

The ideal solar connector is built for the long haul. It must be:

• Weatherproof and UV-Resistant: Solar installations are exposed to rain, snow, extreme heat, and constant sunlight. Connectors must withstand these harsh conditions for 25-30 years.
• Secure and Locking: A robust locking mechanism prevents accidental disconnections, which can cause arcing, power loss, or even fire hazards.
• Polarized: Connectors come in male and female versions to ensure correct polarity and prevent dangerous reverse connections.
• Low Resistance: High-quality materials ensure minimal power loss as electricity flows through the connection.

A failure in the connector can become the weak link in your entire system, introducing vulnerabilities and inefficiencies.

Why Are Connectors So Important For Solar Panels?

Don't underestimate the importance of a good connector. They are fundamental to your system's performance, safety, and longevity.

• Electrical Efficiency & Safety: A secure, low-resistance connection minimizes power loss and prevents dangerous electrical faults like arcing or short-circuiting.
• Durability & Weather Resistance: They protect the electrical connection from environmental damage caused by moisture, dust, UV radiation, and temperature extremes.
• Scalability & Flexibility: Connectors make it easy to expand your solar array or reconfigure panels in series or parallel to meet your specific voltage and current needs.
• Ease of Installation & Maintenance: They allow for quick, tool-free (or tool-assisted) connections and disconnections, simplifying both the initial setup and any future repairs or upgrades.
• Compatibility: Standardized connectors ensure that panels and components from different manufacturers can work together seamlessly.

In short, a high-quality connector is an investment in the overall reliability and efficiency of your solar power system.

What Types of Connectors Are Used For Solar Panels?

While one type dominates the market, several others exist, often found in older systems or specific applications. Here are the five most common types:

1. MC4: The Universal Industry Standard

MC4 connectors are the undisputed industry standard for modern solar installations. When people refer to "Universal Solar Connectors," they are almost always talking about MC4s.

• Why They're Standard: MC4 connectors offer an exceptional balance of safety, reliability, weather resistance (IP68 rating), and ease of use. Their simple push-in and twist-lock mechanism creates a secure connection that won't come apart accidentally.
• Design: They come in male and female versions to prevent reverse polarity. Made with tin-plated copper contacts for excellent conductivity.
• Performance: Rated for high voltages (up to 1,000V or 1,500V depending on the model) and currents (up to 30A+ per pair), making them suitable for virtually all residential and commercial systems.
• Ubiquity: If you buy a new solar panel today, it almost certainly comes with MC4 connectors. This universal adoption ensures maximum compatibility across brands and components.

2. MC3: The Obsolete Predecessor

MC3 connectors were the standard before MC4s took over. You'll only encounter them in older solar installations (typically more than 10-15 years old).

• Key Differences: MC3s use a simple snap-in mechanism without a positive locking feature. This makes them less secure and more prone to accidental disconnection.
• Drawbacks: They are generally less weather-resistant (IP65) and more susceptible to corrosion and wear over time compared to MC4s.
• Recommendation: If you have an older system with MC3 connectors, it’s highly advisable to upgrade them to MC4s for improved safety and reliability.

3. Amphenol H4 / T4: The High-Performance Alternative

Developed by Amphenol, the H4 (often referred to as T4) connector is designed as a premium alternative to the MC4.

• Advantages: T4 connectors boast a higher current-carrying capacity and a higher maximum operating temperature (120°C vs. 105°C for standard MC4s), making them suitable for larger, high-output systems or hotter climates.
• Design: They feature a toolless, push-button locking mechanism that is very user-friendly for installation and maintenance.
• Adoption: While technically superior in some aspects, T4 connectors have not achieved the same level of universal adoption as MC4s. Compatibility can be an issue, as not all components are designed for them.

4. TYCO Solarlok: The Gender-Neutral Option

Manufactured by TE Connectivity, Solarlok connectors offer a unique design philosophy.

• Key Feature: They are gender-neutral, meaning any two connectors can mate with each other. This eliminates the need to manage male and female ends.
• Performance: Known for high-quality materials and excellent durability against environmental factors. They often have a high voltage rating (up to 1,500V).
• Consideration: Their lack of universal adoption means compatibility is a significant concern. You need to ensure all your panels and components are specifically designed for Solarlok connectors.

5. Radox: The European Specialist

Radox connectors, made by HUBER+SUHNER, are another high-quality option, more commonly found in European markets.

• Strengths: Renowned for exceptional performance and durability in harsh environments. They use a twist-lock mechanism and are often paired with specialized, highly flexible Radox-brand cabling.
• Material: Typically use tin-plated brass contacts.
• Niche Use: Like Solarlok and T4, they are not the universal standard, so their use is often limited to specific manufacturers or regional markets.

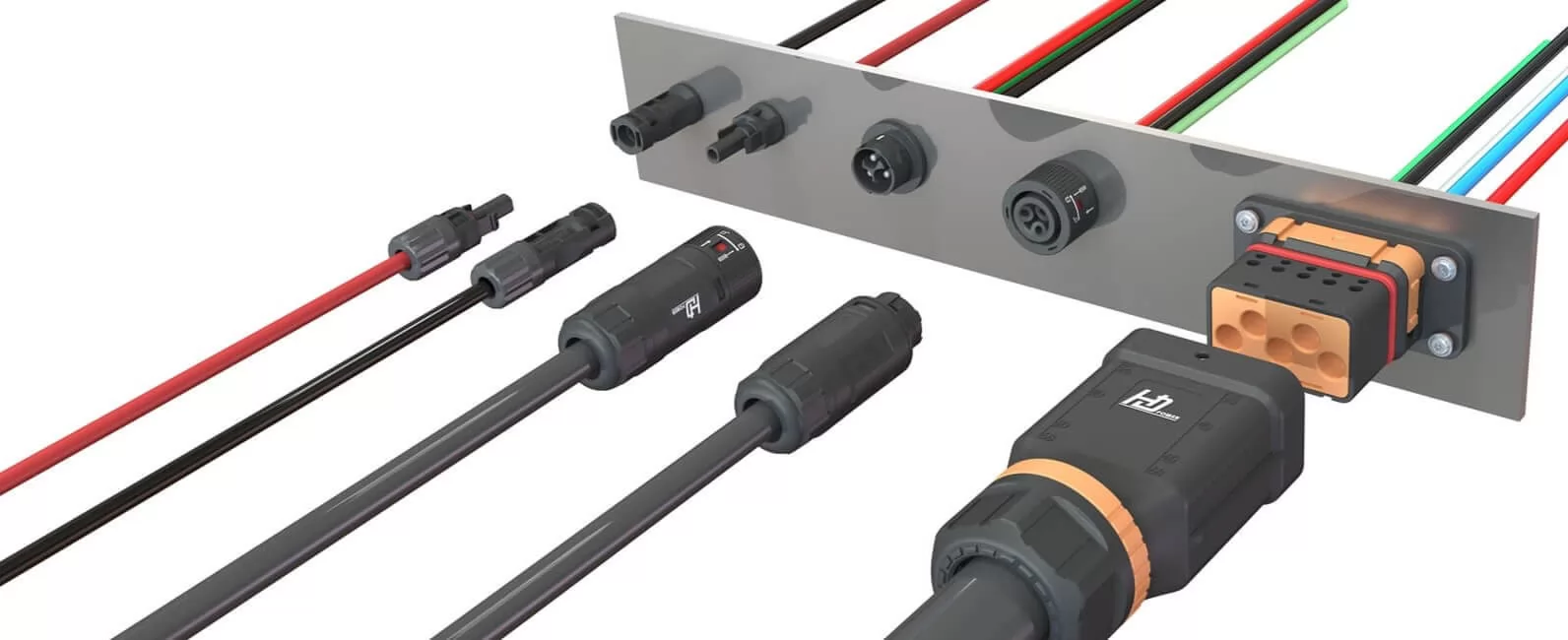

PV Solar Male Female Cable Connector

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage category/Pollution degree	CAT III/2
Safety class	II

PV Solar Male Female Panel Mount Connector

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage category/Pollution degree	CAT III/2
Safety class	II

PV Panel Mount Positive Negative Connector

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.3mΩ

PV Panel Mount On-Board Connector

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.3mΩ

How Do These Connectors Compare? A Quick Reference Guide

To help you understand the key differences at a glance, here’s a comparison of the major connector types:

Key Takeaways from the Table:

• Rated Current & Voltage: Always choose a connector whose ratings exceed your system's maximum output to prevent overheating.
• IP Rating: Look for IP67 or IP68 for the best protection against dust and water immersion.
• Locking Mechanism: Avoid any connector without a positive locking feature (like the old MC3). Security is non-negotiable.
• Compatibility: MC4 is the safest bet for ensuring all your components work together.

How to Connect and Disconnect Solar Panel Connectors (MC4 Example)

Working with solar connectors is straightforward but requires attention to safety.

Safety First: Always turn off your solar system and cover the panels (if possible) before working on the connections to eliminate the risk of electric shock.

Connecting MC4 Connectors:

1. Align: Take the male and female connectors.
2. Push & Twist: Push them straight together until they meet, then give the collar a quarter-turn clockwise. You should hear and feel a distinct "click," indicating the lock has engaged.

Disconnecting MC4 Connectors:

1. Use the Tool: MC4 connectors require a specialized disconnect tool (often called an MC4 spanner).
2. Insert Tool: Place the tool around the connected pair, aligning its grooves with the connector housings.
3. Squeeze & Pull: Squeeze the tool's handles. This compresses the locking collar, releasing the lock. While squeezing, gently pull the connectors apart.

Never try to force MC4 connectors apart without the proper tool, as this can damage the locking mechanism.

Frequently Asked Questions

Q: What’s the main difference between MC3 and MC4 connectors?
A: The MC4 is the direct successor to the MC3. The key improvement is the MC4's positive locking mechanism, which is far more secure than the MC3's simple snap-in design. MC4s are also more weather-resistant and have become the universal standard.

Q: Do all new solar panels use MC4 connectors?
A: Yes, virtually all solar panels manufactured in the last decade use MC4 connectors. It’s the industry standard that ensures compatibility and safety. If you encounter a panel without MC4s, it’s likely very old or uses a proprietary system, which can create compatibility headaches.

Q: Can I connect MC4 and MC3 connectors together?
A: No, you should never directly connect MC4 and MC3 connectors. They are physically incompatible and have different safety ratings. To connect components with different connector types, you must use a properly rated adapter cable.

Conclusion

Solar panel connectors are a small component with a massive impact. Choosing the right type is not just about making a connection—it’s about ensuring the safety, efficiency, and longevity of your entire solar investment.

For any new installation or upgrade, MC4 connectors are the clear, universal choice. Their combination of safety, reliability, weather resistance, and near-universal compatibility makes them the benchmark against which all others are measured.

When purchasing solar panels or components, always verify they use high-quality, certified MC4 connectors. Don’t let a cheap or incompatible connector become the weak link that compromises your clean energy system.
