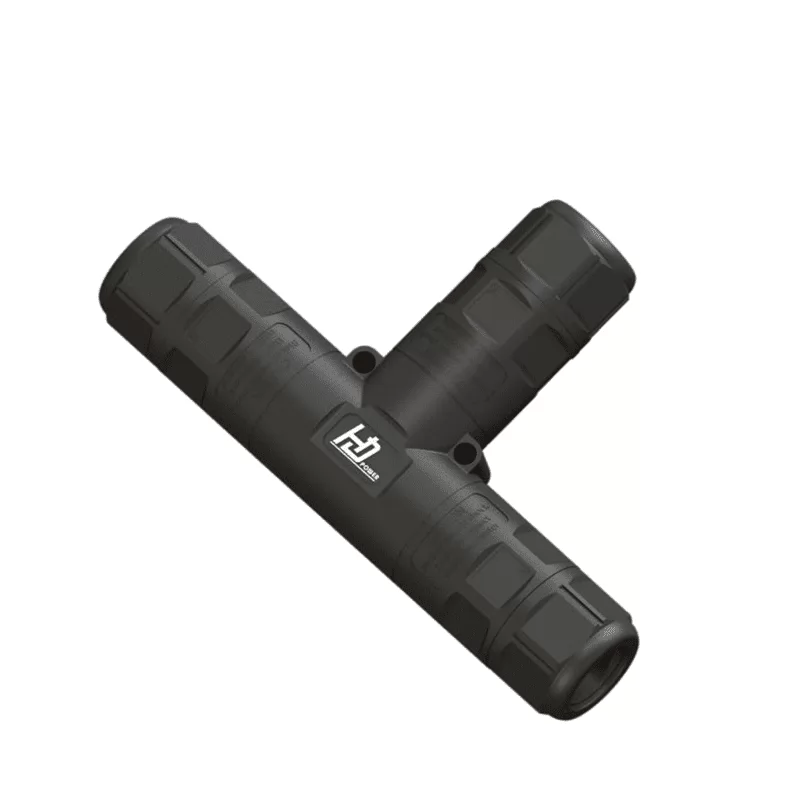

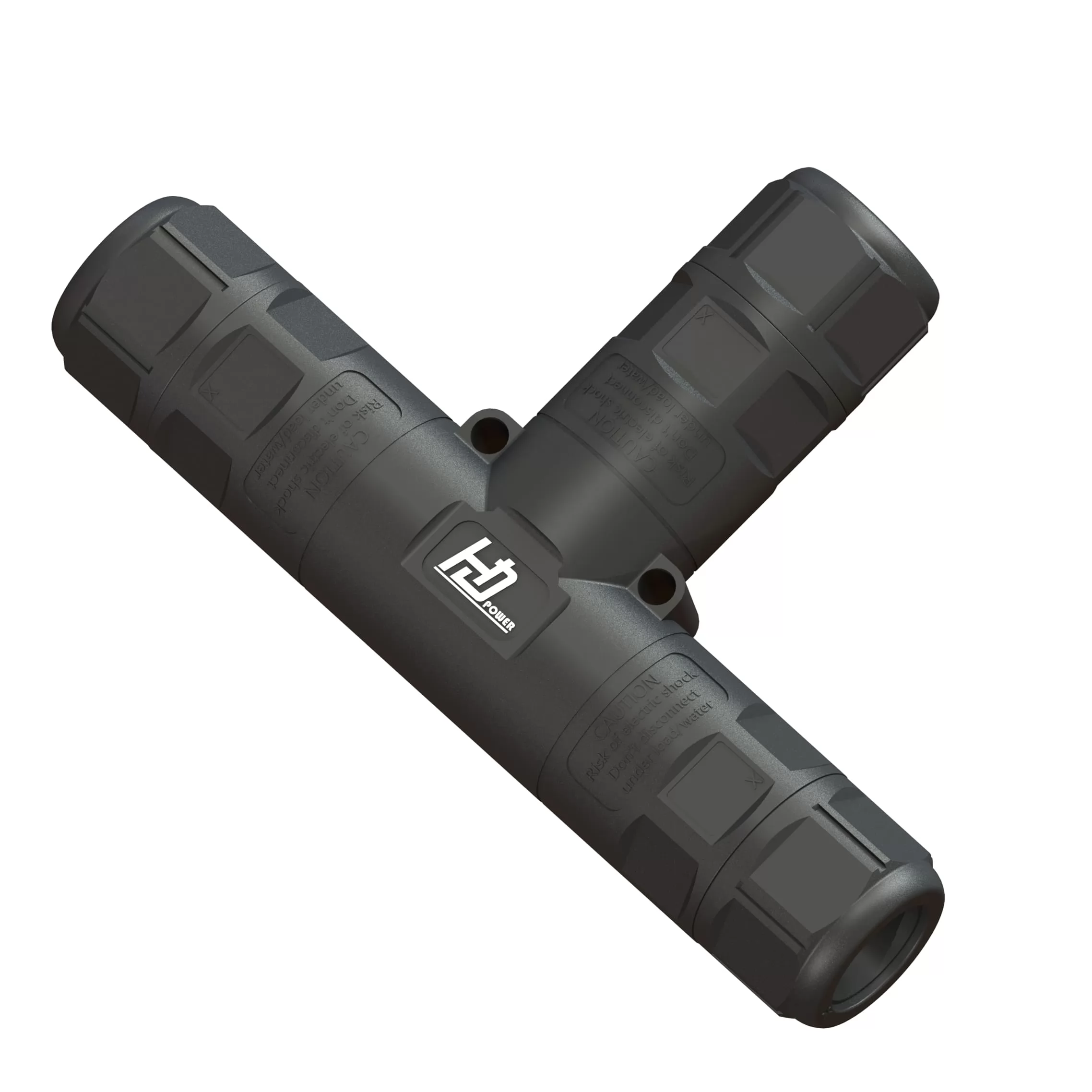

T3 Wiring M20 Branch Connector

Handa HD brand Solar AC series T3 Type Wiring M20 Branch Connector is suitable for solar industry smart photovoltaic tracking mount system,and 2/3/4/5pins both available for different applications.

Get a Quote

T3 Wiring M20 Branch Connector

Technical Data

Model	HDD-2T01/HDD-3T01/HDD-4T01
Electrical
Rated Voltage	600V AC
Rated Impulse Voltage	4000V AC
Rated Current	32A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Mechanical
Mating Cycle	/
PIN Retention Force	/
Wire Size	≤13mm
Wire Size	≤4 mm² (12Awg)
Unlock Mode	Non- tool unlock
Connector Retention Force	≥80N
Connector Pull-Out Force	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)
Application Temperature	-40℃~ 85℃
Flamming Level	UL94-V0
Material
Plastic Material	PA
Pin Material	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber
Screw Material	Fe, Zinc nickel alloy Plating
