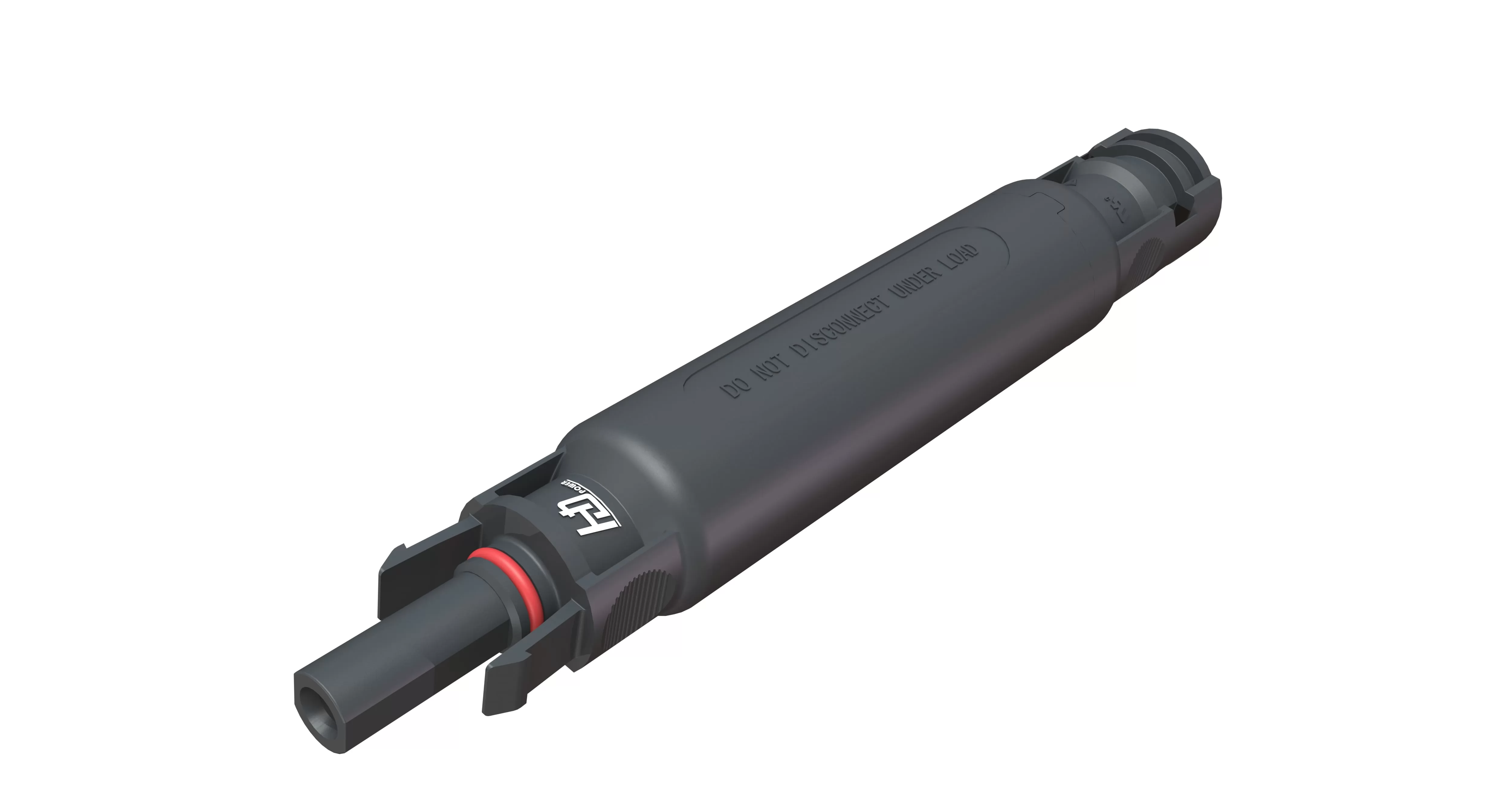

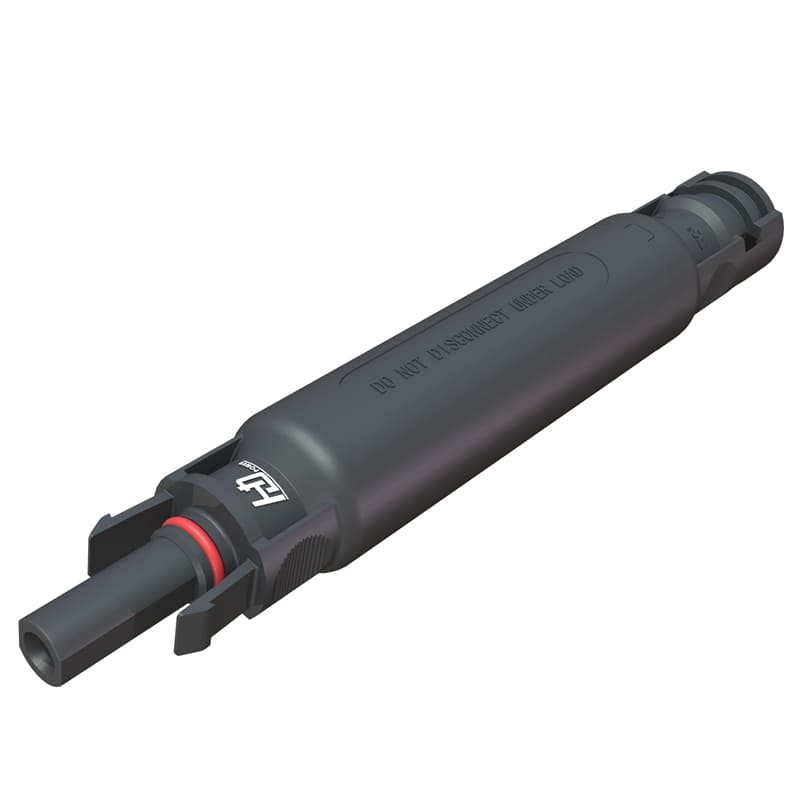

Solar Fuse Connector 1500V

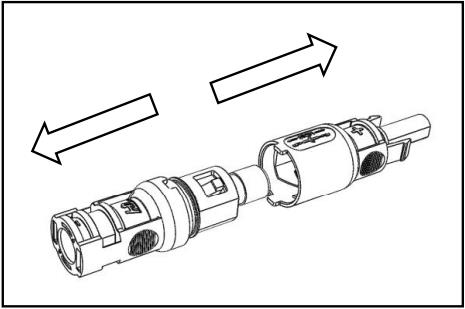

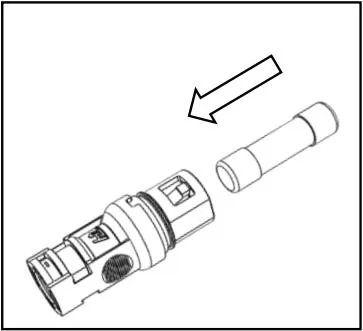

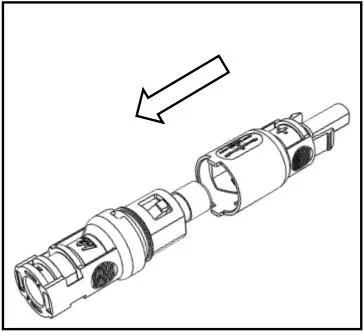

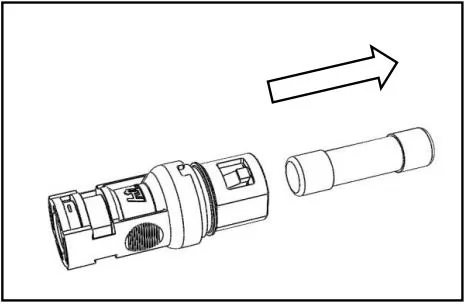

With minimal energy loss, low heat generation, robust housing combined with the mating face of the Original HD PV solar cable and panel, branch connector, Handa offers the ideal fuse products for your PV-systems.this one is longer length with 1500V voltage, fuse inside can be tool replaced and fuse amperage is from 2A to 32A maximum for your specific voltage and current requirement to protects components within a PV string from overcurrent.

Get a Quote

Technical Data

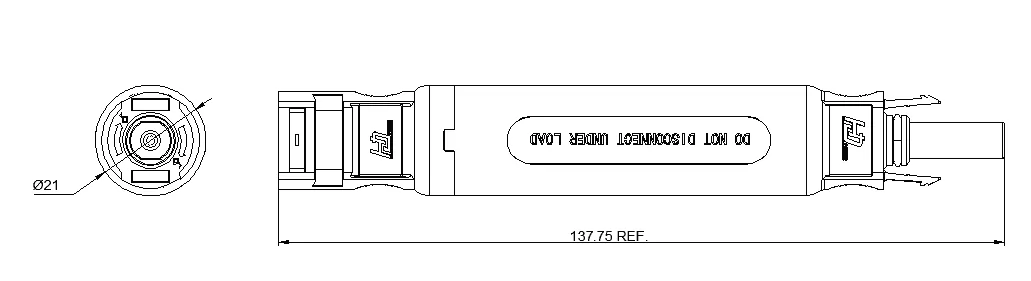

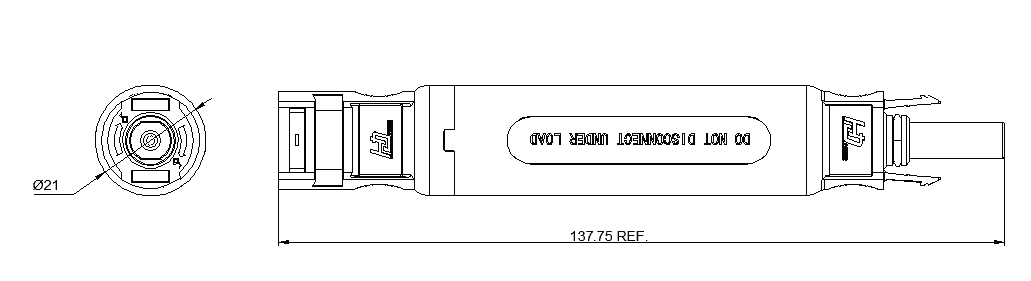

Model	HDC-41L
Electrical
Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current	32A MAX.
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage Category/ Pollution Degree	CAT III/2
Safety Class	Ⅱ
Mechanical
Mating Cycle	≥200

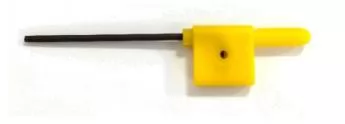

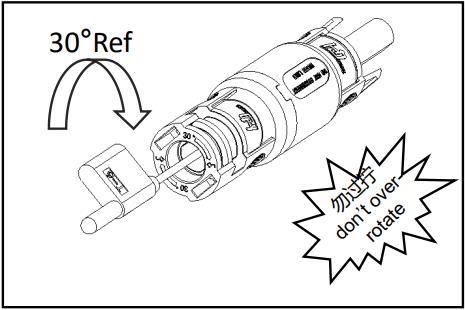

Unlock Mode	unlock with tools
Connector Retention Force	≥80N
Connector Pull-Out Force	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)
Application Temperature	-40℃~ +85℃
Max. Operating Temperature	85℃
Flamming Level	UL94-V0
Ammonia Resistance	Pass
Material
Plastic Material	PA(f1)
Pin Material	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber
