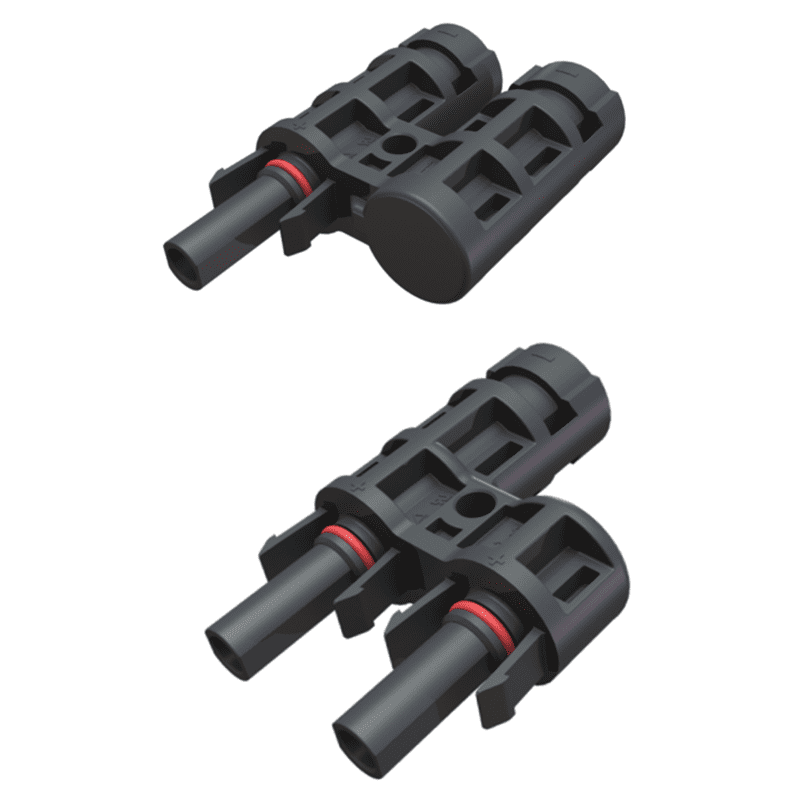

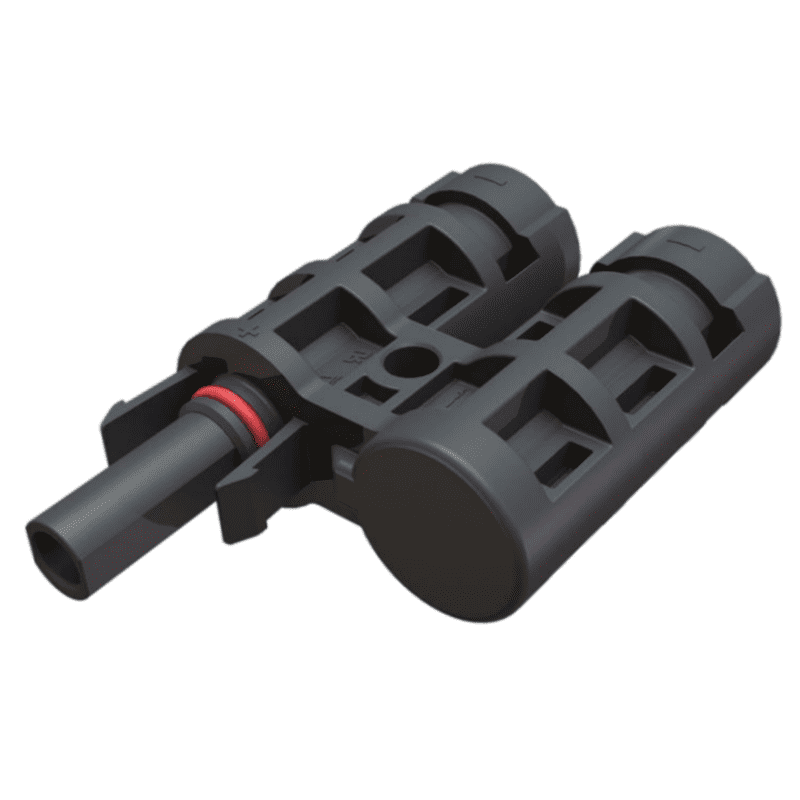

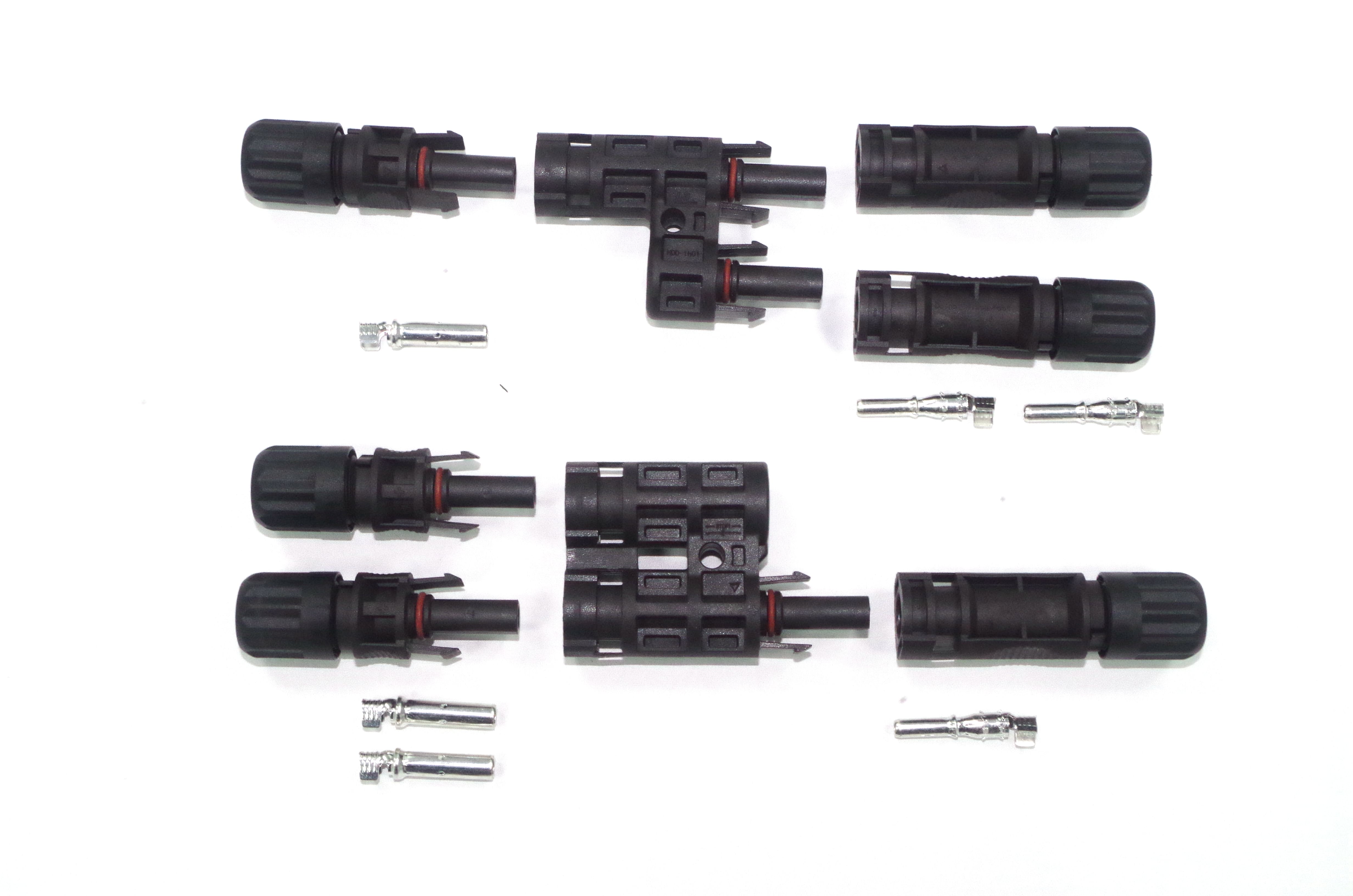

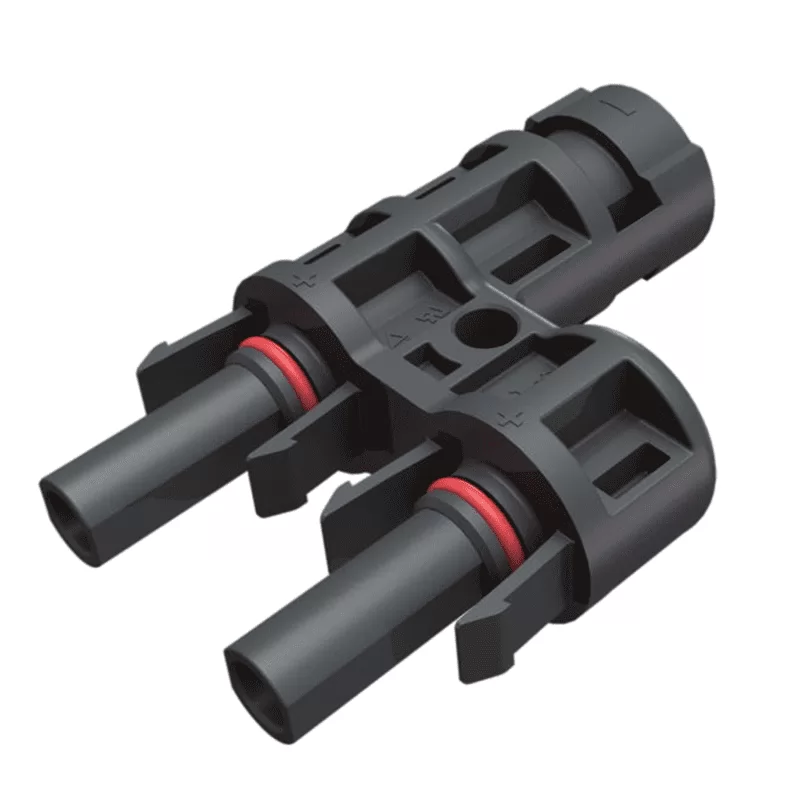

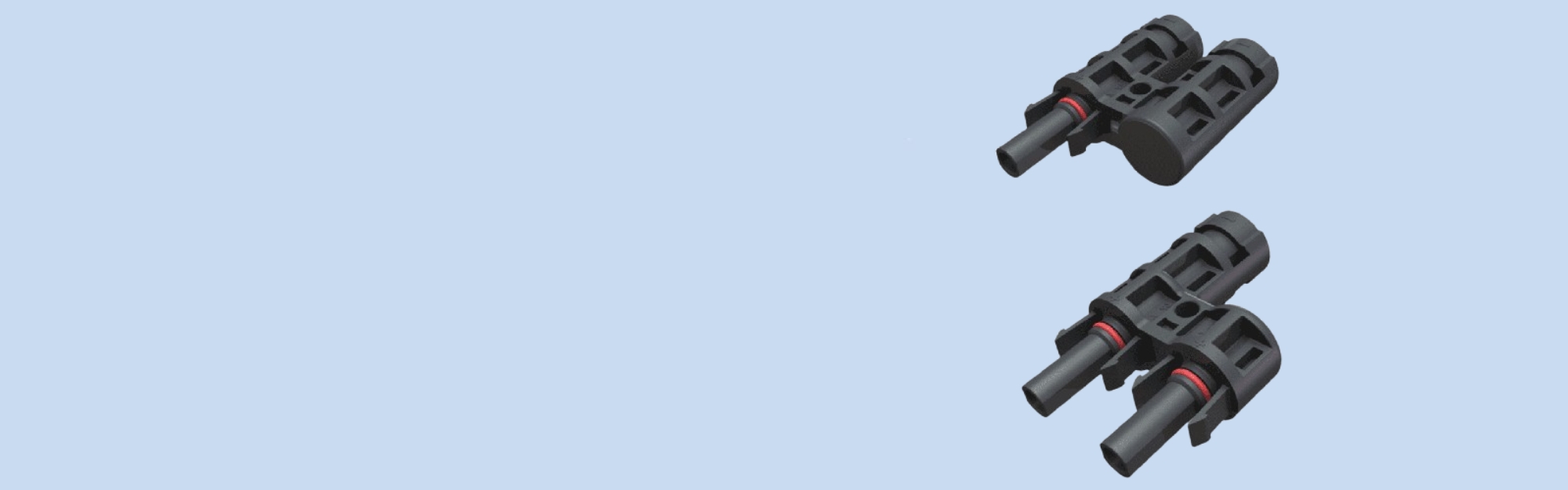

Solar DC Branch Connector

Handa HD brand PV Solar Branch connector for a safe and reliable parallel (or serial-parallel) connection of PV-modules.with HD branch connectors,you can receive:p>

Plug-and-play fucntion: no crimping or torquing necessary. Versatility and compact dimension.

Mating compatibility with HD PV solar panel cable connectors and HD fuse connectors.

DC 1500V 55A according to IEC 62852 and TUV certificated.

Get a Quote

Solar DC Branch Connector

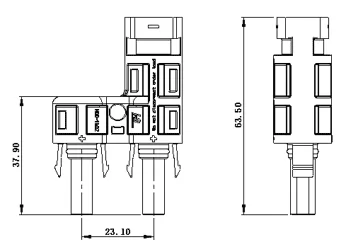

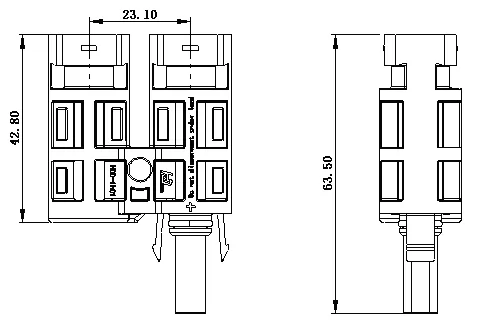

Technical Data

Model	HDD-1h01	HDD-1h02
Electrical
Rated Voltage	1500V DC	1500V DC
Rated Impulse Voltage	16KV	16KV
Rated Current (85℃)	55A	55A
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.25mΩ	≤0.25mΩ
Overvoltage Category/ Pollution Degree	CAT III/2	CAT III/2
Safety Class	Ⅱ	Ⅱ
Mechanical
Mating Cycle	≥500	≥500
Unlock Mode	unlock without tools unlock with tools	unlock without tools unlock with tools
Connector Retention Force	≥80N	≥80N
Connector Pull-Out Force	≤20N	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)	IP65/IP68 (1m,1H)
Application Temperature	-40℃~ 85℃	-40℃~ 85℃
Max. Operating Temperature	85℃	85℃
Flamming Level	UL94-V0	UL94-V0
Ammonia Resistance	Pass	Pass
Material
Plastic Material	PA(f1)	PA(f1)
Pin Material	Copper Alloy, Sn Plating	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
