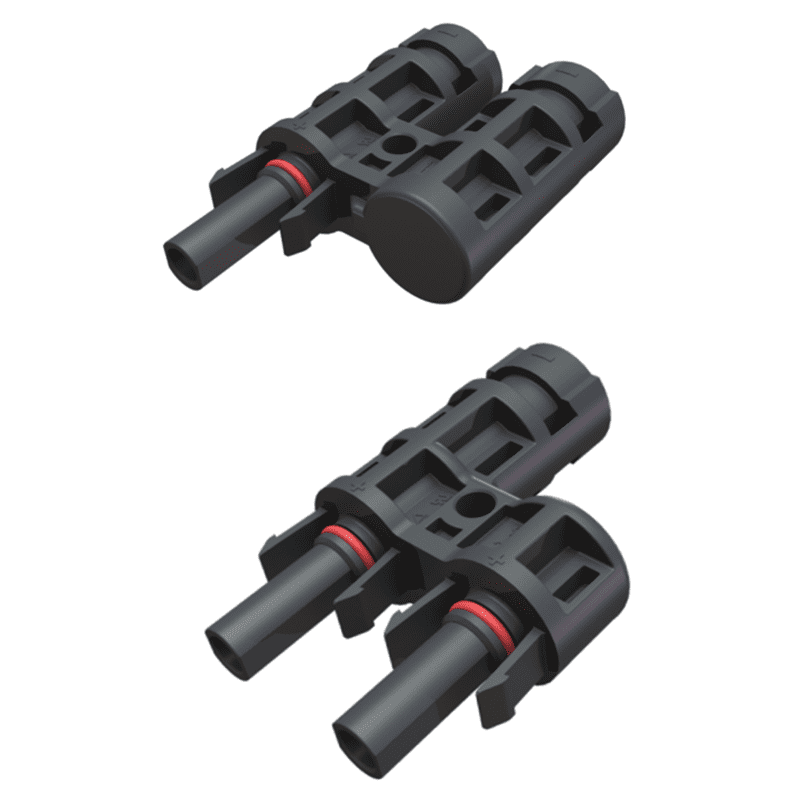

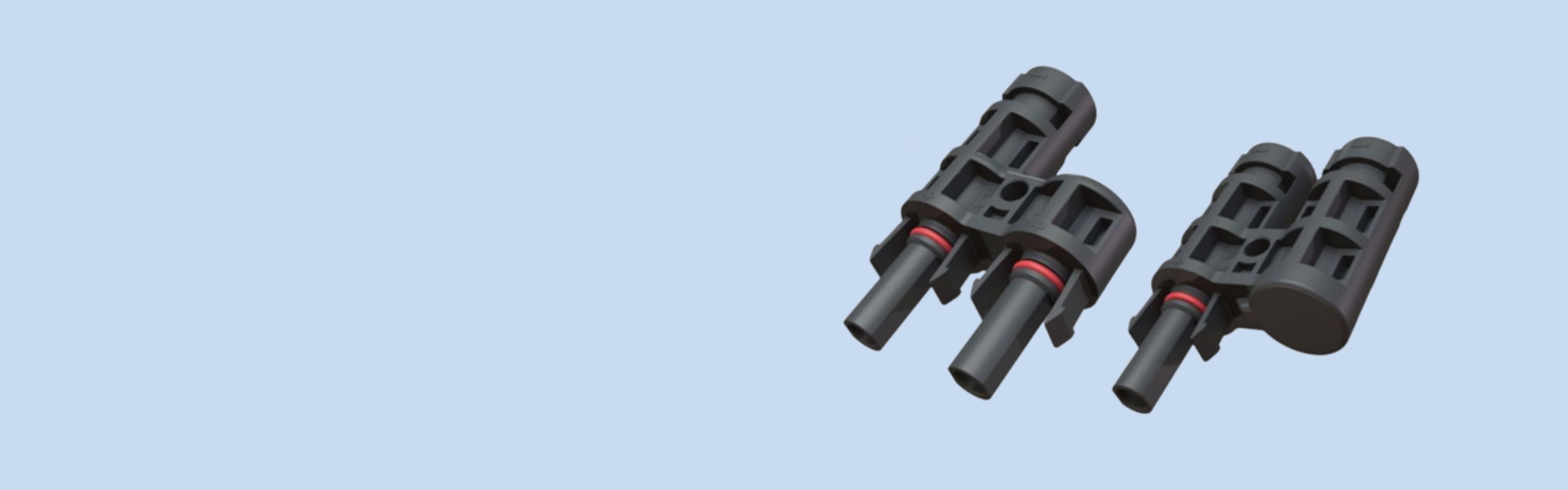

Solar DC Branch Connector

Handa HD brand PV Solar Branch connector for a safe and reliable parallel (or serial-parallel) connection of PV-modules.with HD branch connectors,you can receive:p>

Plug-and-play fucntion: no crimping or torquing necessary. Versatility and compact dimension.

Mating compatibility with HD PV solar panel cable connectors and HD fuse connectors.

DC 1500V 55A according to IEC 62852 and TUV certificated.

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current (85℃)	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage Category/ Pollution Degree	CAT III/2
Safety Class	Ⅱ

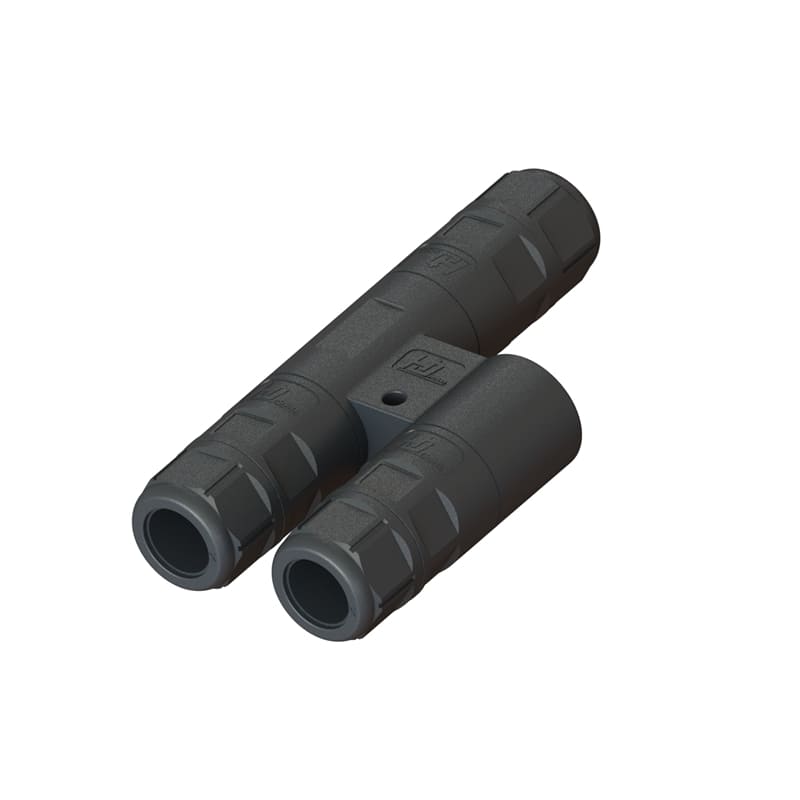

H3 Wiring M20 Branch Connector

Handa HD brand Solar AC series h3 Type Wiring M20 Branch Connector is suitable for solar industry and LED, Light system,one AC input port and two AC output port for the lights system, 2/3/4/5pins both available for different applications.

Technical Data

Rated Voltage	300V AC
Rated Impulse Voltage	2500V AC
Rated Current	32A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Overvoltage Category/ Pollution Degree	CAT III/2
Safety Class	Ⅱ

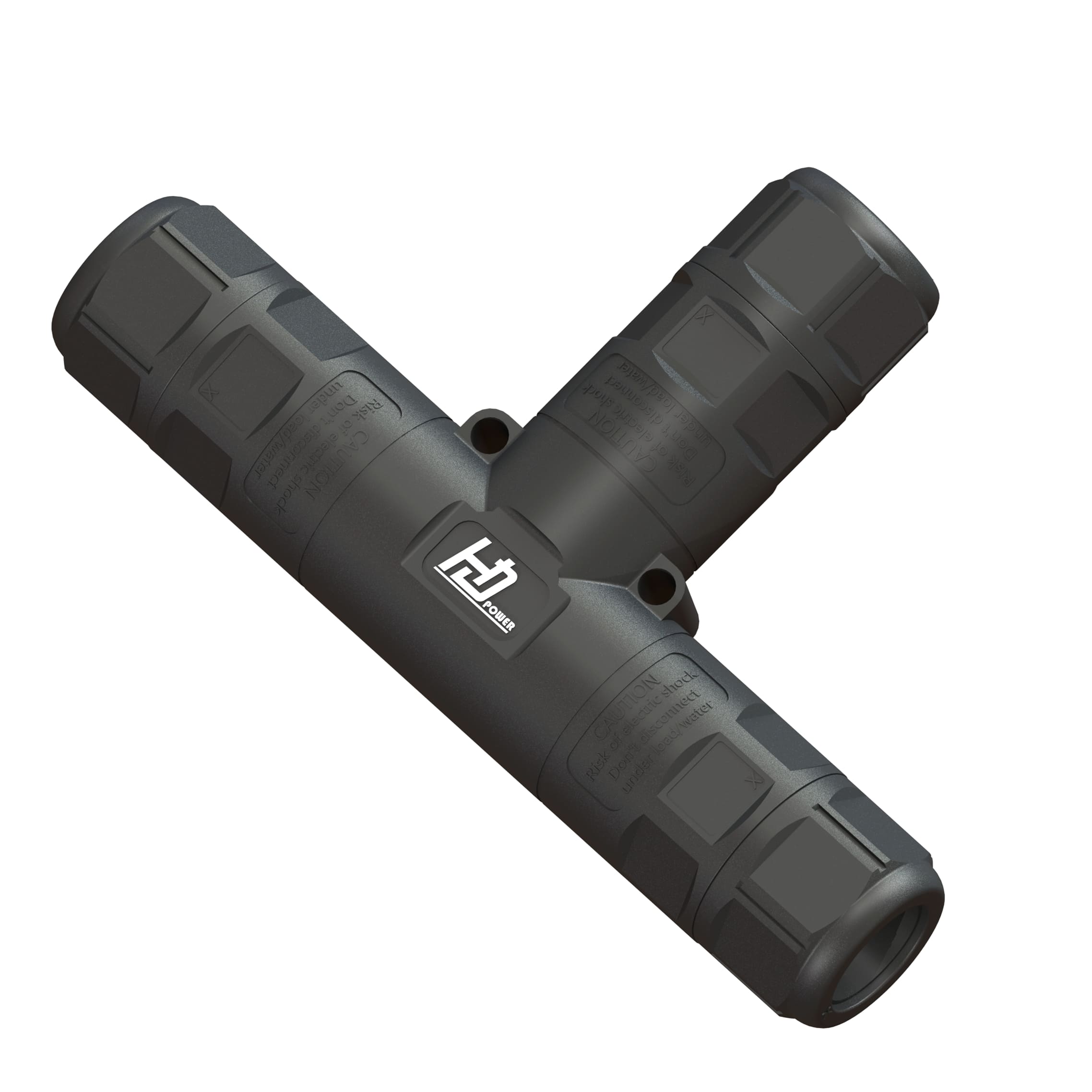

T3 Wiring M20 Branch Connector

Handa HD brand Solar AC series T3 Type Wiring M20 Branch Connector is suitable for solar industry smart photovoltaic tracking mount system,and 2/3/4/5pins both available for different applications.

Technical Data

Rated Voltage	600V AC
Rated Impulse Voltage	4000V AC
Rated Current	32A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ

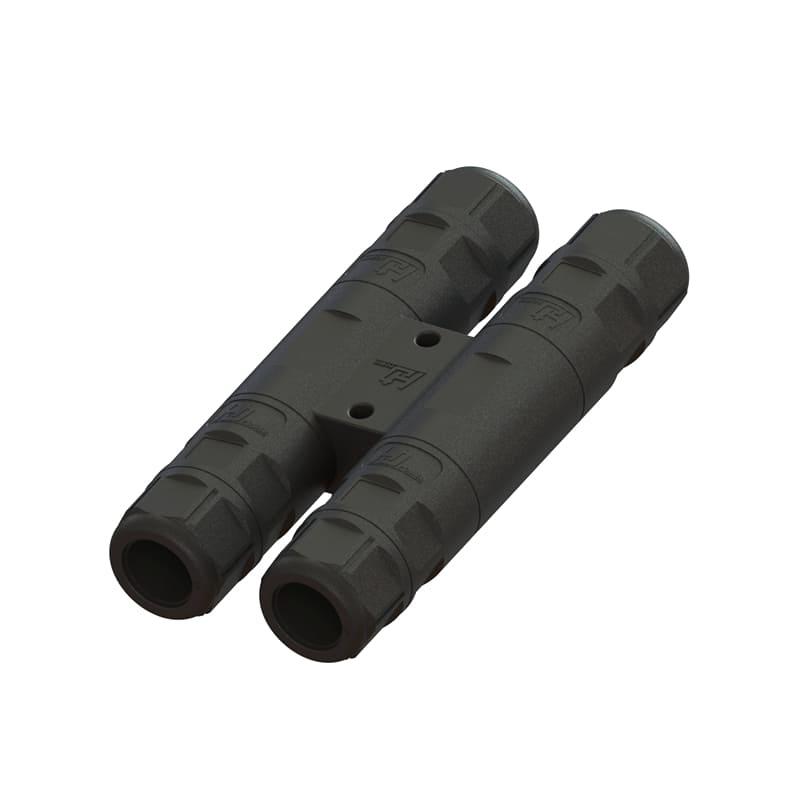

H4 Wiring M20 Branch Connector

Handa HD brand Solar AC series H3 Type Wiring M20 Branch Connector is suitable for solar industry and LED, Light system,Two AC input port and two AC output port for the lights system, 2/3/4/5pins both available for different applications.

Technical Data

Rated Voltage	300V AC
Rated Impulse Voltage	2500V AC
Rated Current	32A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ

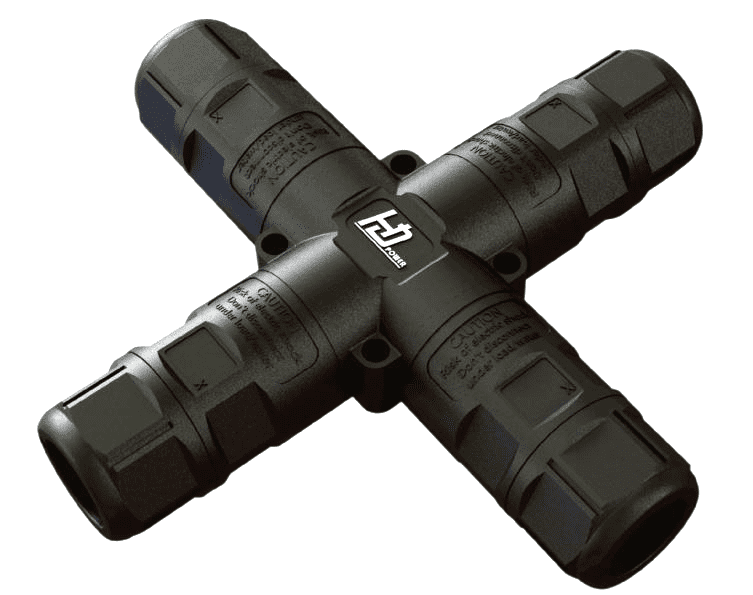

十4 Wiring M20 Branch Connector

Handa HD brand Solar AC series +4 Type Wiring M20 Branch Connector is suitable for solar industry smart photovoltaic tracking mount system, and 2/3/4/5pins both available for different applications.

Technical Data

Rated Voltage	600V AC
Rated Impulse Voltage	4000V AC
Rated Current	32A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ

Handa HD Solar Connectors for Various Application Scenarios

HD Solar Connectors, Make Connection Simplier

HANDA Power Technology, excels as a leading global manufacturer of solar connectors. In addition to our comprehensive product portfolio, which includes solar PV connectors, solar AC power connectors, solar communication connectors, and solar energy storgae connectors. Besides the diverse standarded solar connectors, HD specialize in customized connectors and solutions tailored for harsh environments. This adaptability and innovation in our product range address the specific needs of diverse solar industry applications such as household roof, balcony,PV farm,solar smart bracket system, commercial and industrial solar system and other demanding solar applications.
