Solar AC M25 5 Pin On-grid Connector

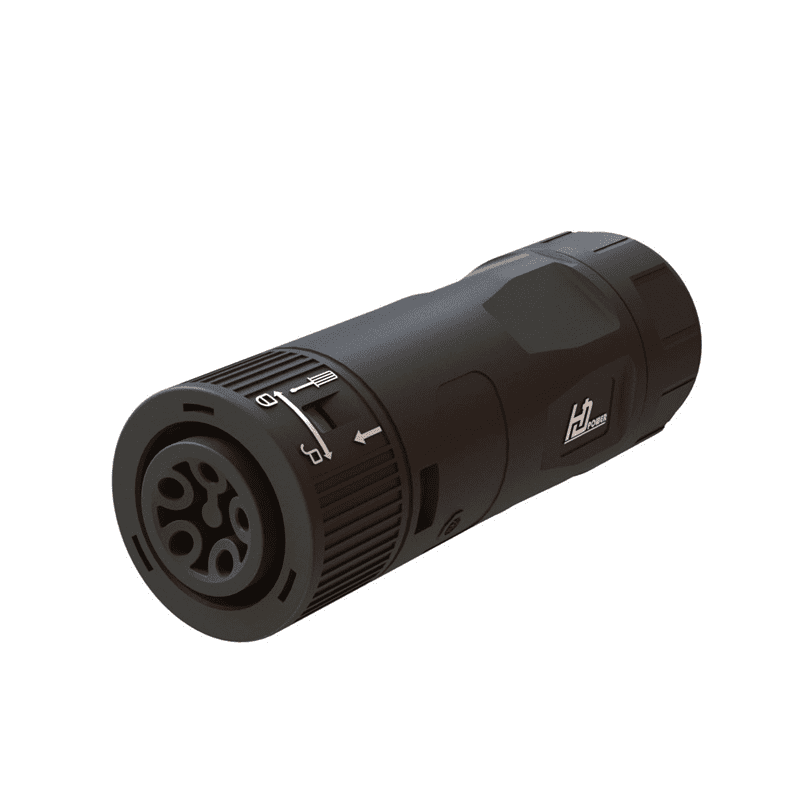

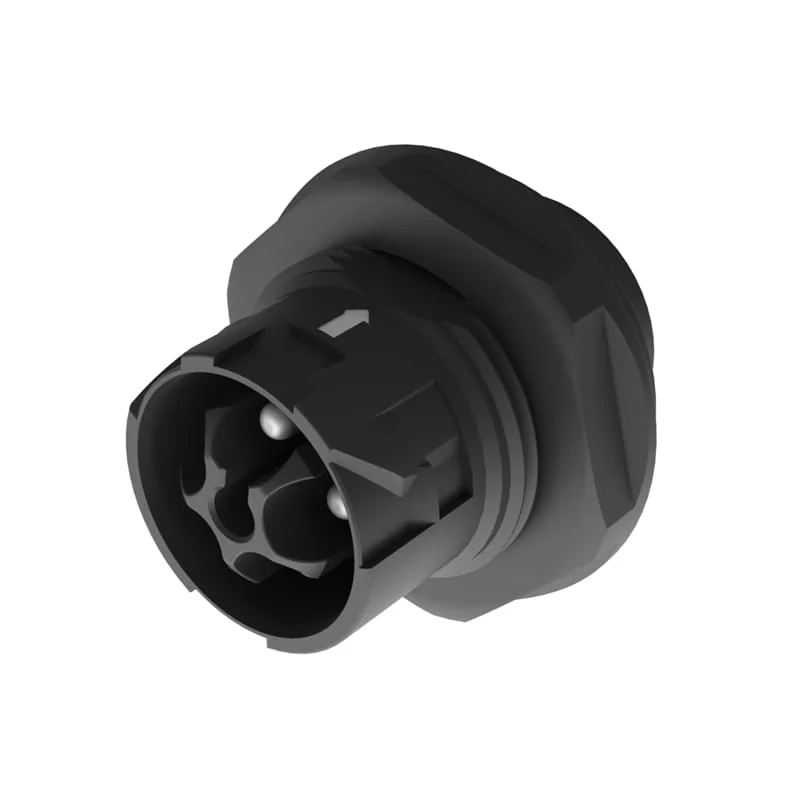

Handa HD brand Waterproof AC Connector M25 5pin Male Socket Panel Connector to Female Plug Cable Connectors, is suitable for PV Solar inverter's(3 Phases 12KW) AC On-grid port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Get a Quote

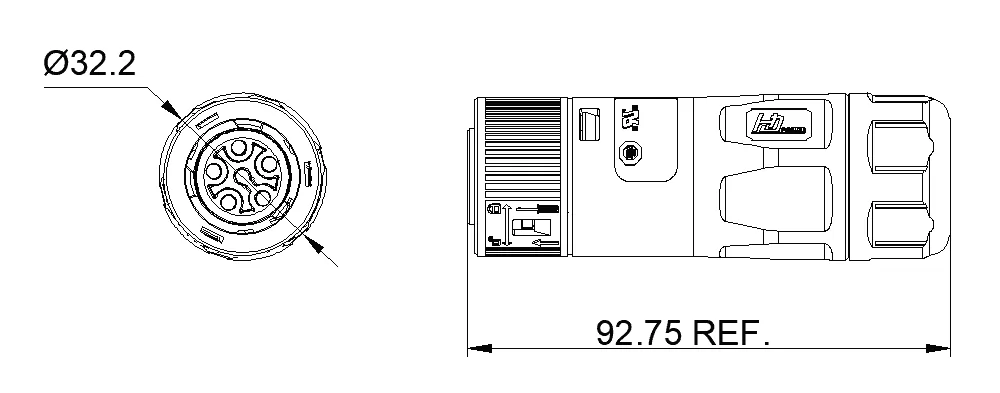

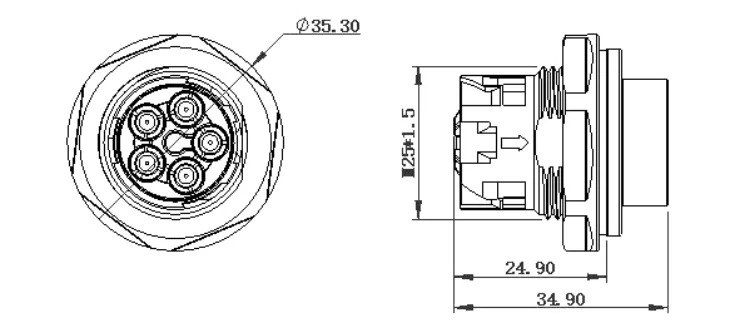

Technical Data

Model	HDC-35i5m2	HDC-35i5f1
Electrical Specification
Rated Voltage	600V AC	600V AC
Rated Impulse Voltage	6KV	6KV
Rated Current	35A for 6mm² (TUV) 32A for 10Awg (UL)	35A for 6mm² (TUV) 32A for 10Awg (UL)
Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤1mΩ	≤1mΩ
Mechanical Specification
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Cable Retention Force	≥180N	≥180N
Wire Size	≤6mm² (10Awg)	≤6mm² (10Awg)
Cable Diameter	≤15.5mm/17.5mm	≤15.5mm/17.5mm
Unlock Mode	Non- tool unlock Tool unlock	Non- tool unlock Tool unlock
Connector Retention Force	≥80N	≥80N
Connector Pull- Out Force	≤20N	≤20N
Enviromental Specification
Waterproof Rate	IP68 (1m2H)	IP68 (1m2H)
Application Temperature	-40℃~+85℃	-40℃~+85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PC+PBT	PC+PBT
Pin Material	Copper Alloy, Sn Plating	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
