Solar AC M25 3 Pin On-grid Connector

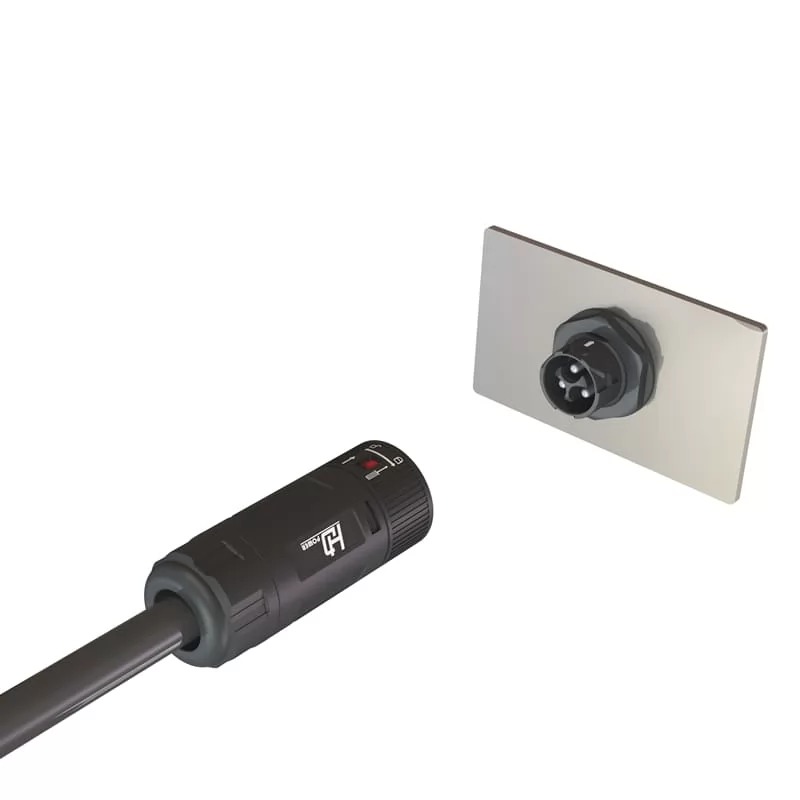

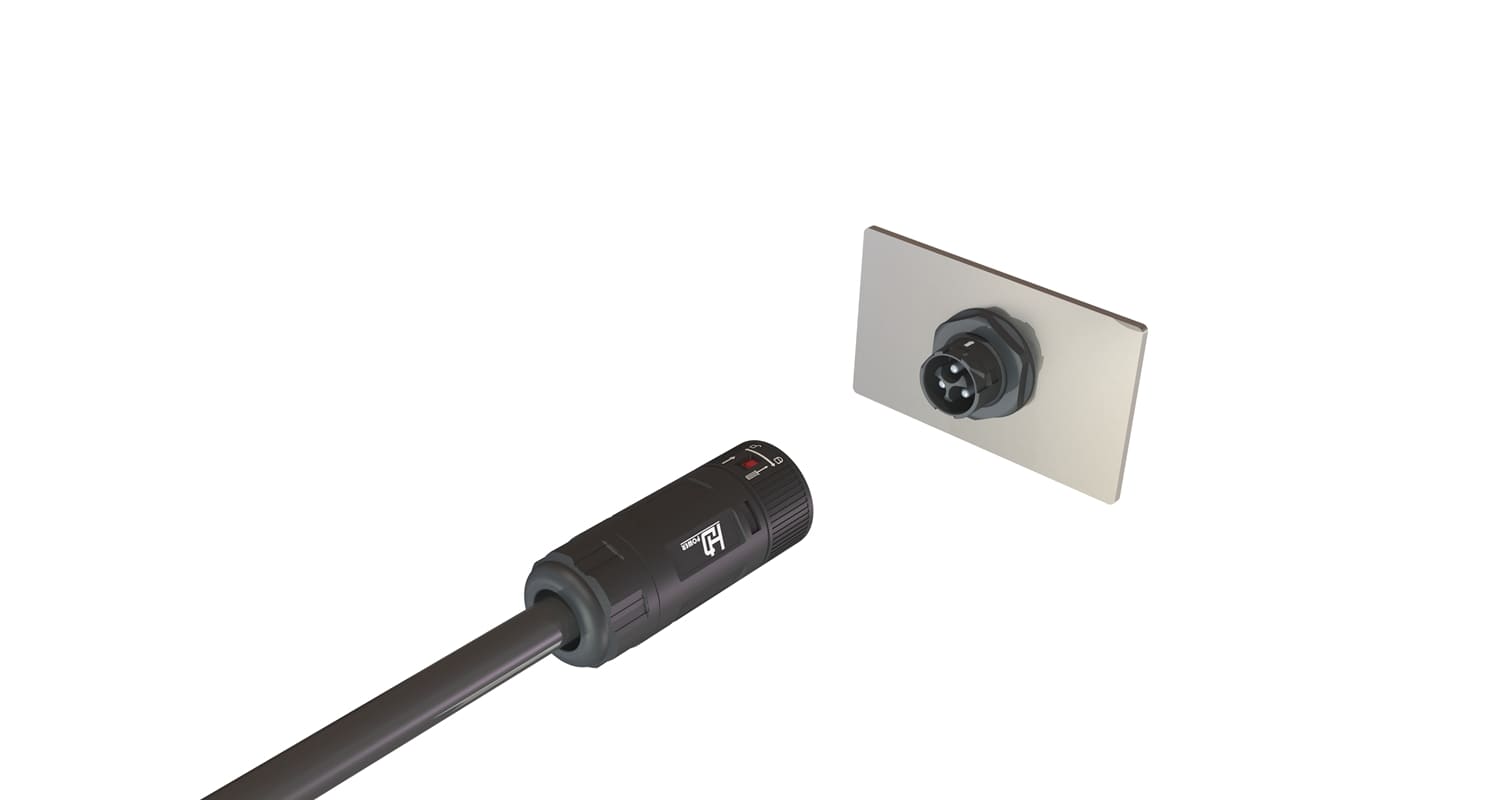

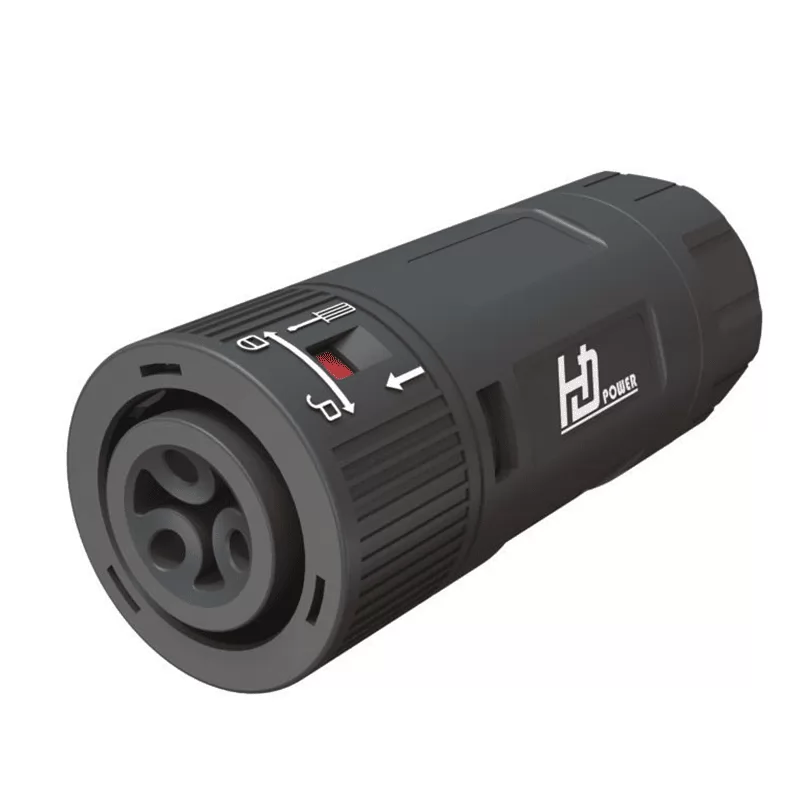

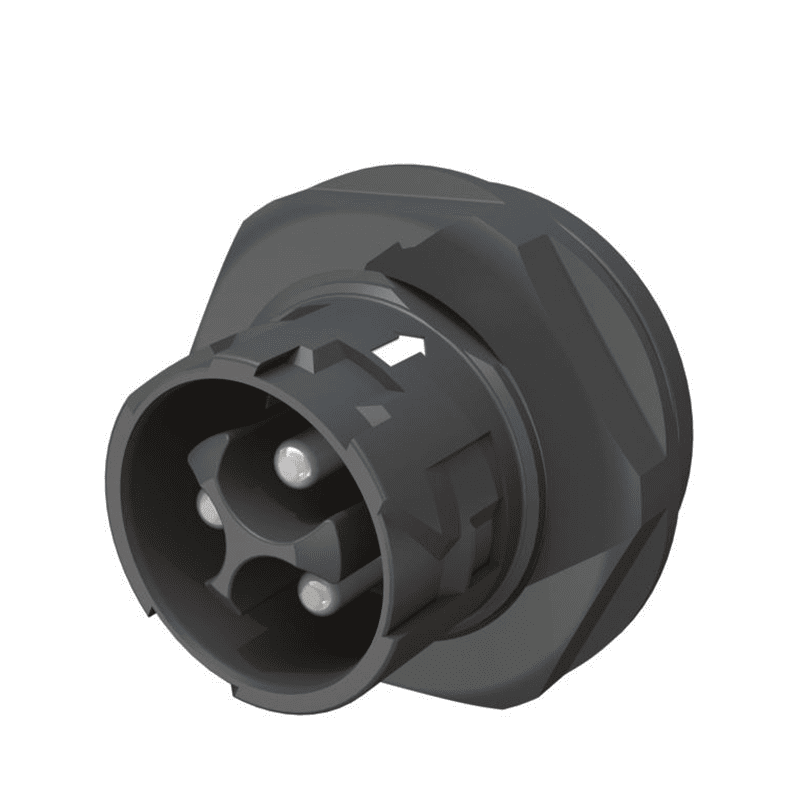

Handa HD brand Waterproof AC Connector M25 3pin Male Socket Panel Connector to Female Plug Cable Connectors, is suitable for PV Solar inverter's(Single Phase 6KW) AC On-grid port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Get a Quote

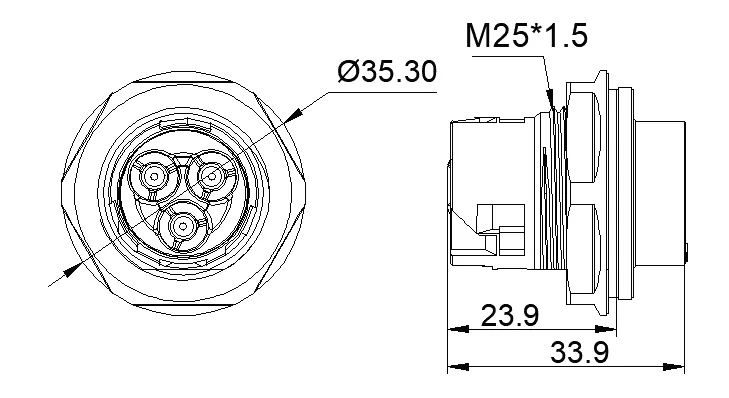

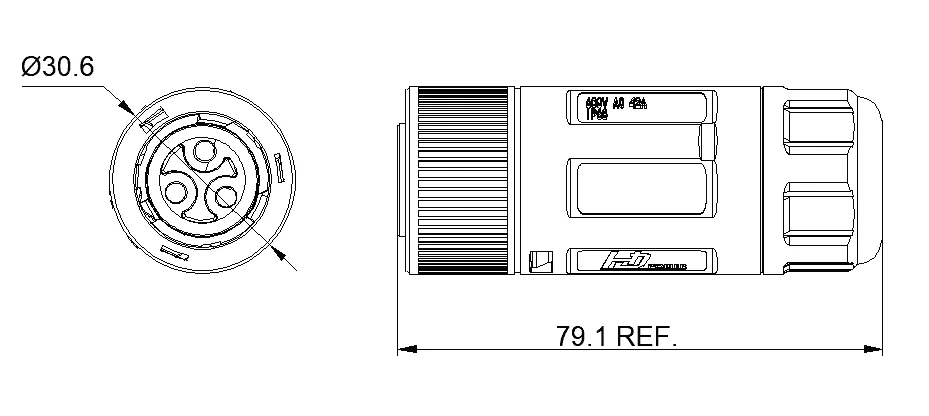

Technical Data

Model	HDC-42i3f2	HDC-42i3m2
Electrical Specification
Rated Voltage	600V AC	600V AC
Rated Impulse Voltage	6KV	6KV
Rated Current	42A for 6mm² (10Awg)	42A for 6mm² (10Awg)
Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤1mΩ	≤1mΩ
Mechanical Specification
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Cable Retention Force	≥180N	≥180N
Wire Size	≤6 mm² (10Awg)	≤15.5 mm² (10Awg)
Unlock Mode	Non- tool UnlockTool Unlock	Non- tool UnlockTool Unlock
Enviromental Specification
Waterproof Rate	IP68(1m2H)	IP68(1m2H)
Application Temperature	-40℃~+85℃	-40℃~+85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PC+PBT/ Black	PC
Pin Material	Brass, Ag Plating	Copper Alloy,Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
