Solar AC M20 On-grid Connector

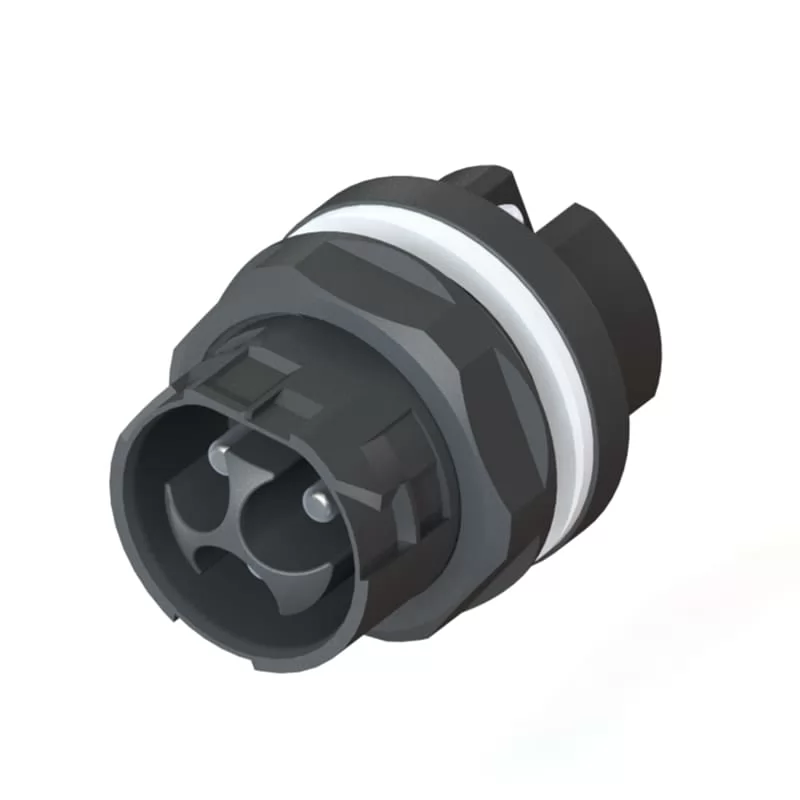

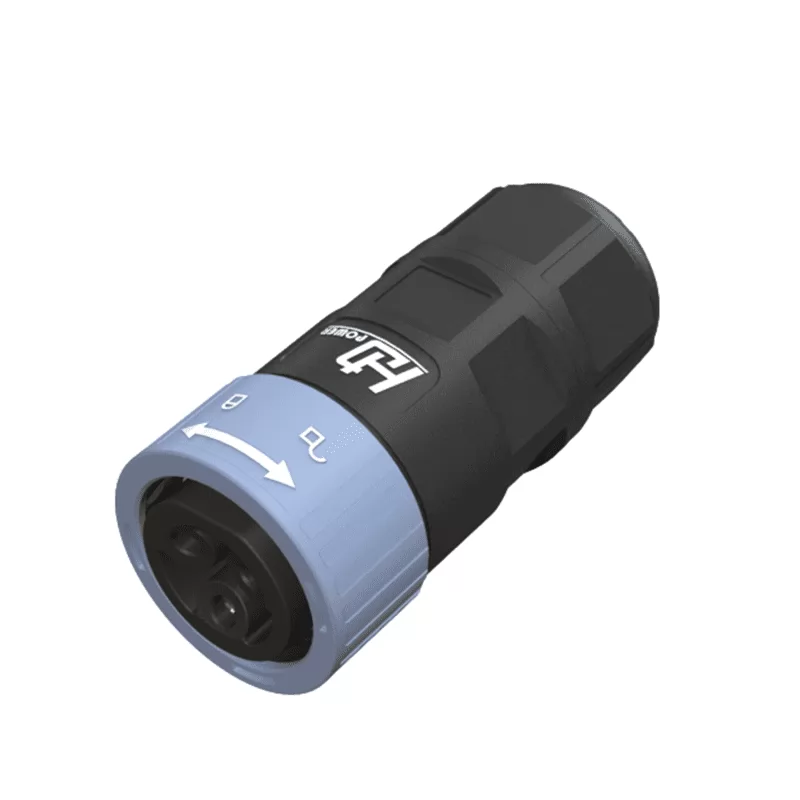

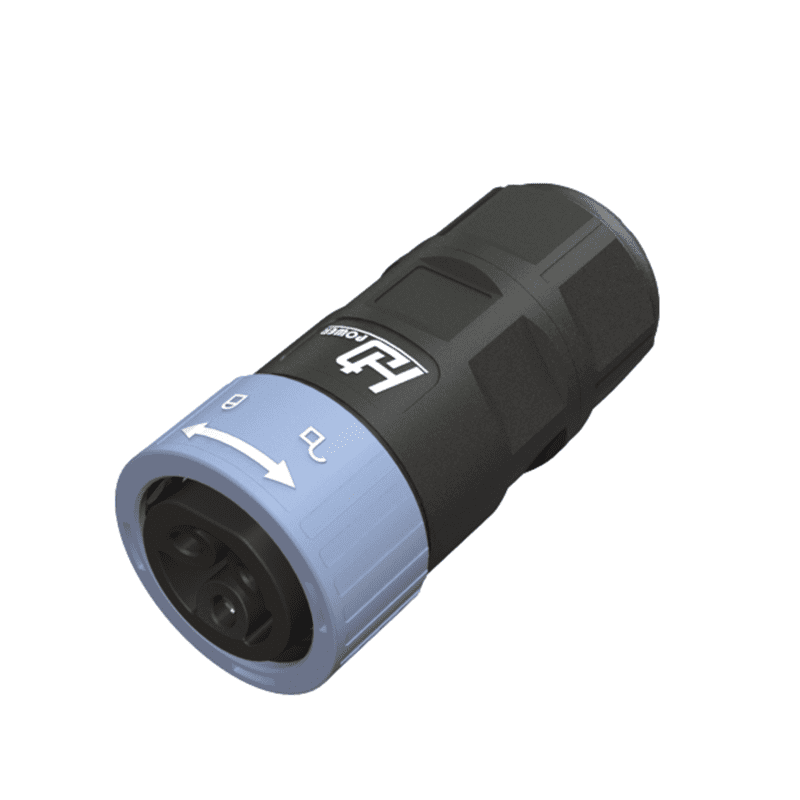

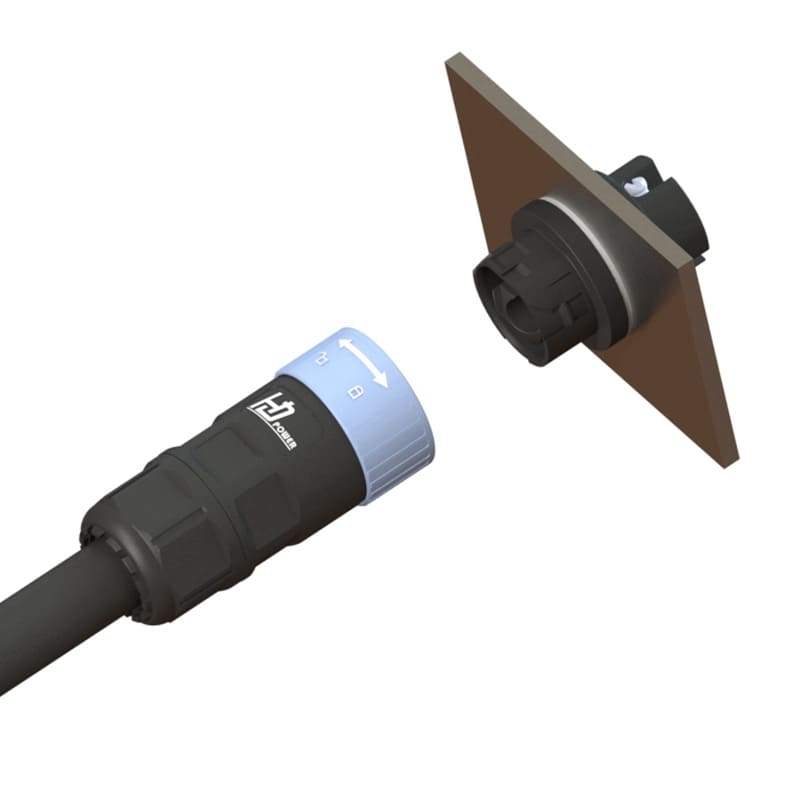

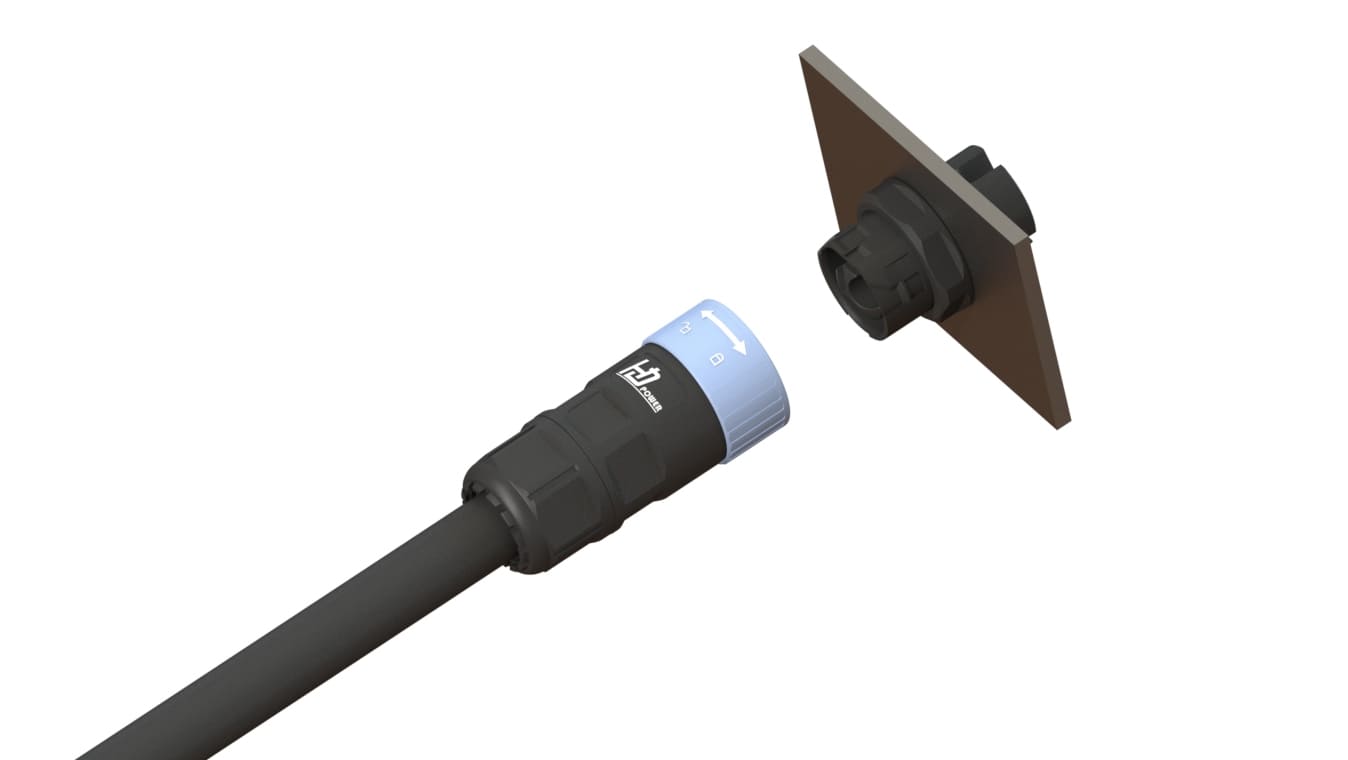

Handa HD brand Waterproof AC Connector M20 Male Socket Panel Connector to Female Plug Cable Connectors, 2pins, 3pins, 4pins and 5pins 4 types by tailored choice, 3pins is suitable for PV Solar inverter's(2-4KW) AC On-grid port, while 2/4/5 pins for AC LED Lighting Equipment.

Get a Quote

Technical Data

Electrical Specification
Cat No./ Series No.	HDC-32i2f1/HDC-32i2m1	HDC-32i3f1/HDC-32i3m1	HDC-32i4f1/HDC-32i4m1
No. of Live Poles/ Grounding	2	3	4
Voltage (V)	TUV:600V UL:300V
Current (A)	TUV:32A UL:25A	TUV:32A UL:20A	TUV:32A UL:25A
Rated Impulse Voltage	4000V AC
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Enviromental Specification
Mechanical Life	500
PIN Retention Force	≥60N
Wire Size	≤4 mm² (12Awg)
Connector Retention Force	80N
Connector Pull- Out Force	20N
Enviromental Specification
IP Level	IP68 (1m1H)
Operating Temperature	-40℃~85℃
Flamming Level	UL94 V-0
Material
Plastic Material	PA
Metal Material	Copper Alloy Ag plating
Rubber Material	Sillicone Rubber
