Solar AC M20 Off-grid Connector

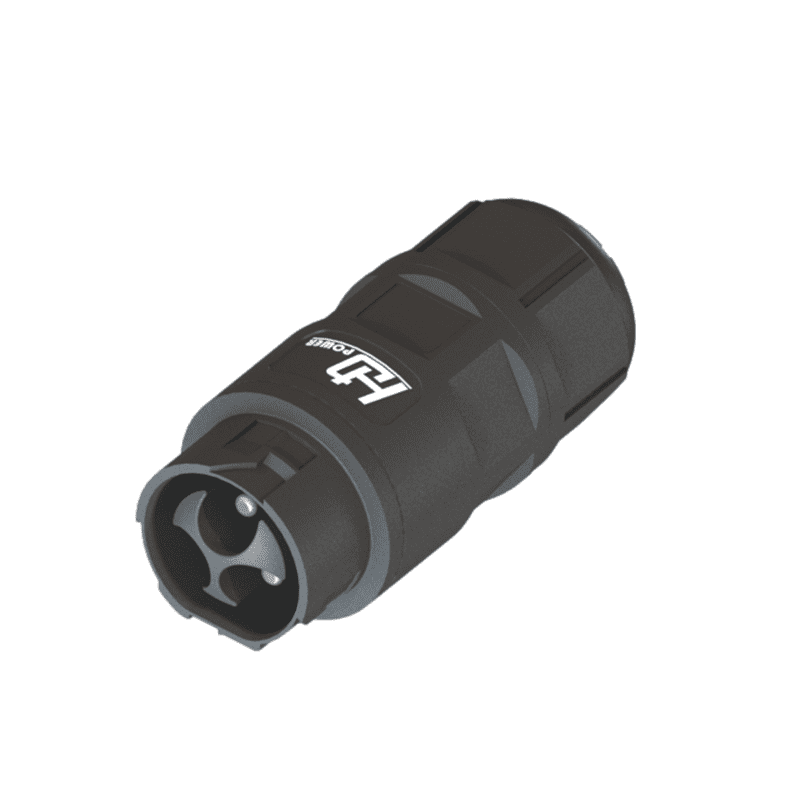

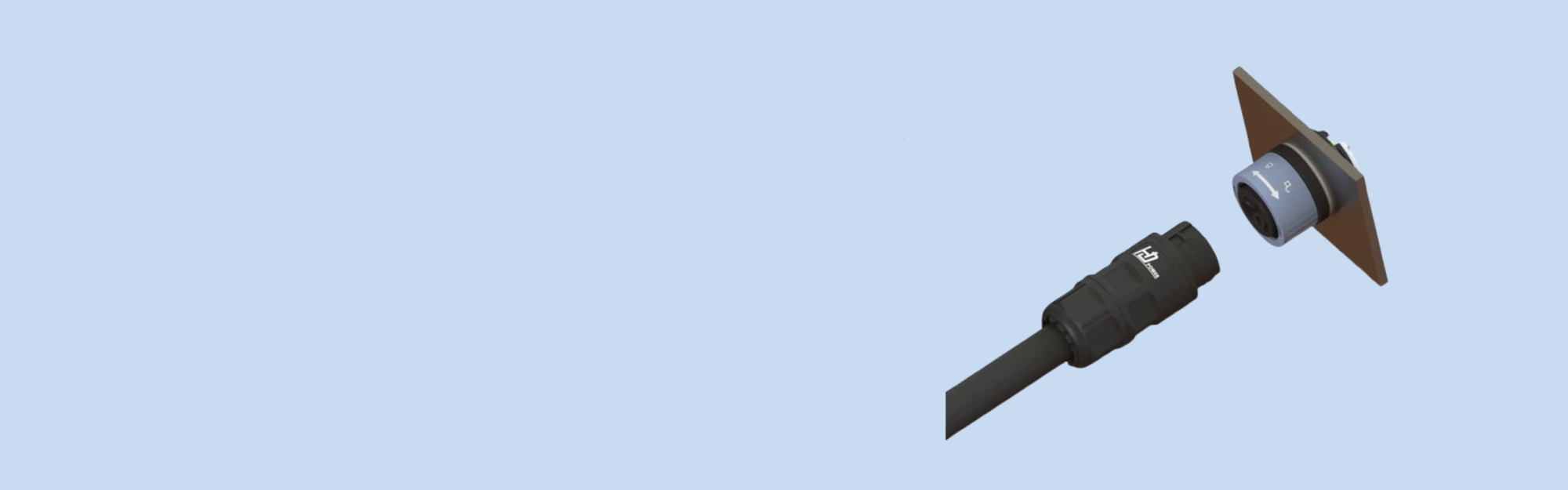

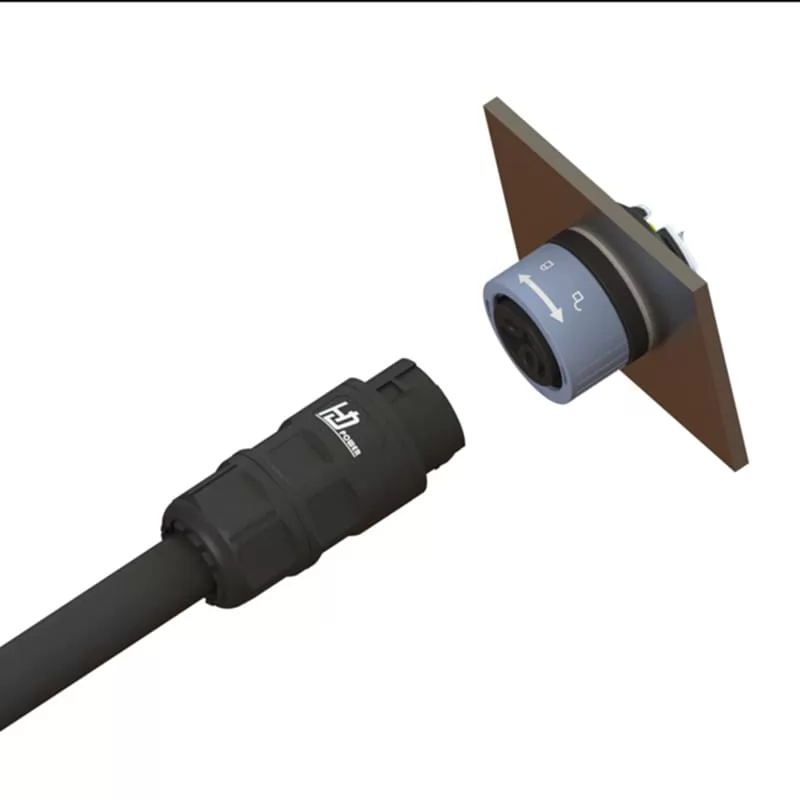

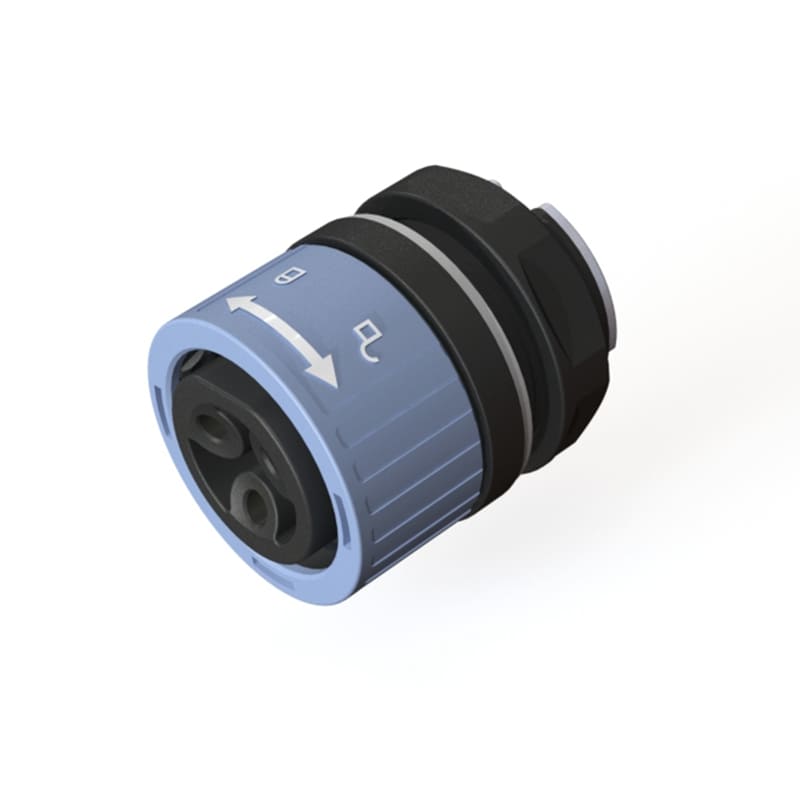

Handa HD brand Waterproof AC Connector M20 Female Socket Panel Connector to Male Plug Cable Connectors, 2pins, 3pins, 4pins and 5pins 4 types by tailored choice, 3pins is suitable for PV Solar inverter's(2-4KW) AC Off-grid/Backup/EPS port, while 2/4/5 pins for AC LED Lighting Equipment.

Get a Quote
Solar AC M20 Off-grid Connector

Technical Data

Electrical Specification

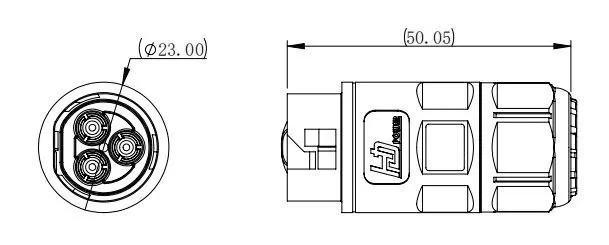

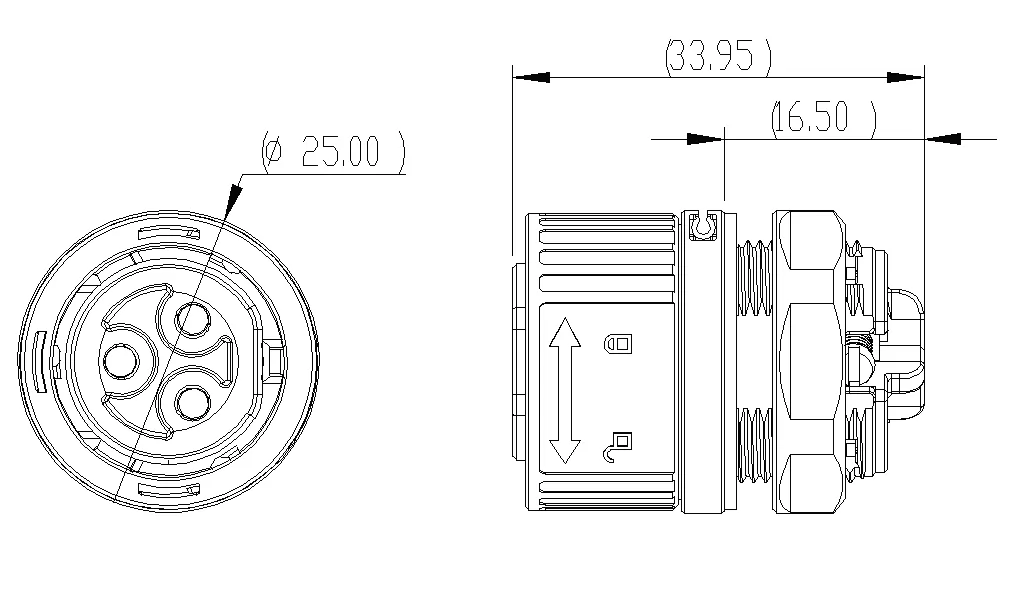

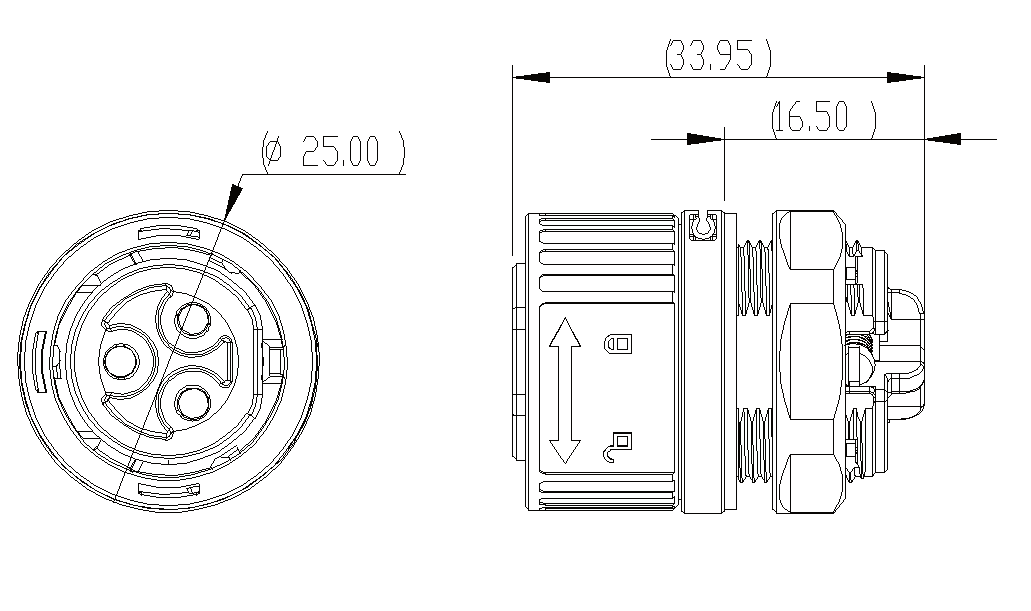

Cat  No./ Series No. HDC-32i2f3/HDC-32i2m1 HDC-32i3f3/HDC-32i3m1 HDC-32i4f3/HDC-32i4m1
No. of Live  Poles/ Grounding 2 3 4
Voltage (V) TUV:600V UL:300V
Current (A) TUV:32A UL:25A TUV:32A UL:20A TUV:32A UL:25A
Rated Impulse Voltage 4000V AC
Insulation Resistance ≥500MΩ
 Contact Resistance ≤5mΩ
Enviromental Specification
Mechanical Life 500
PIN Retention  Force ≥60N
Wire Size ≤4 mm² (12Awg)
Connector Retention  Force 80N
Connector Pull-  Out Force 20N
Enviromental Specification
IP Level IP68 (1m1H)
Operating Temperature -40℃~85℃
Flamming Level UL94 V-0
Material
Plastic Material PA
Metal MaterialCopper Alloy  Ag plating
Rubber MaterialSillicone Rubber
