Solar AC 76A 5PIN Terminal Block Connector

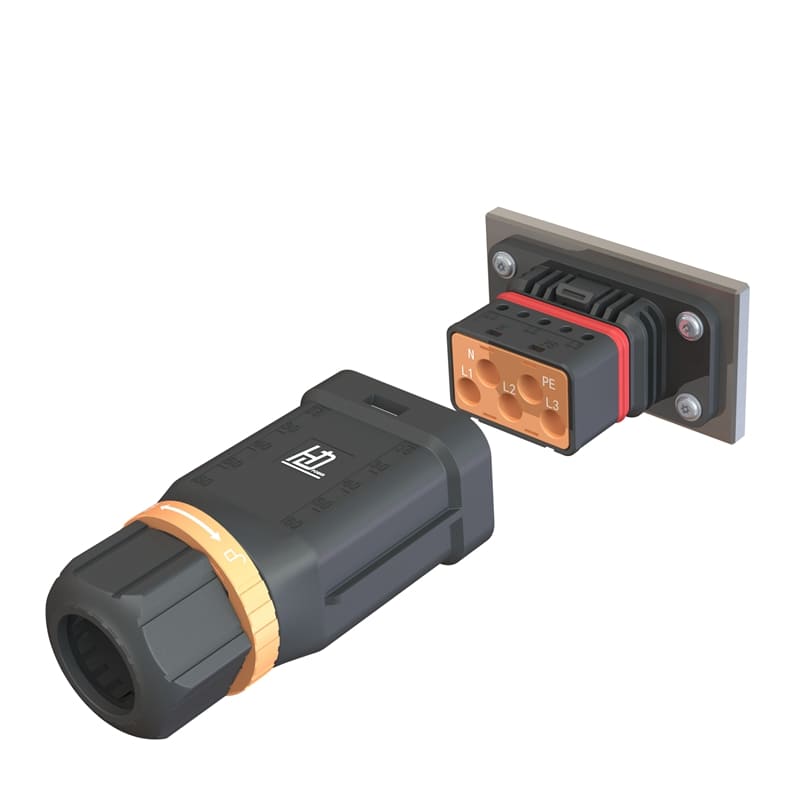

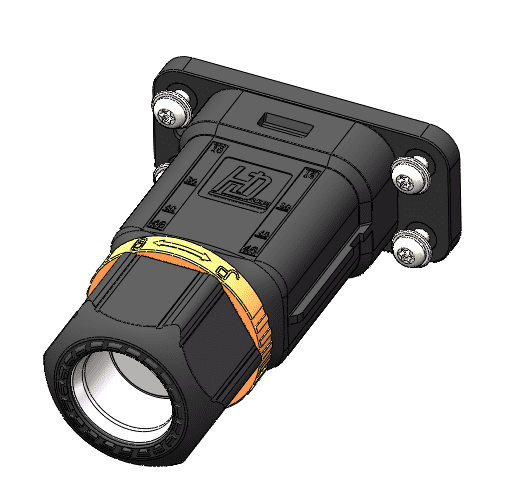

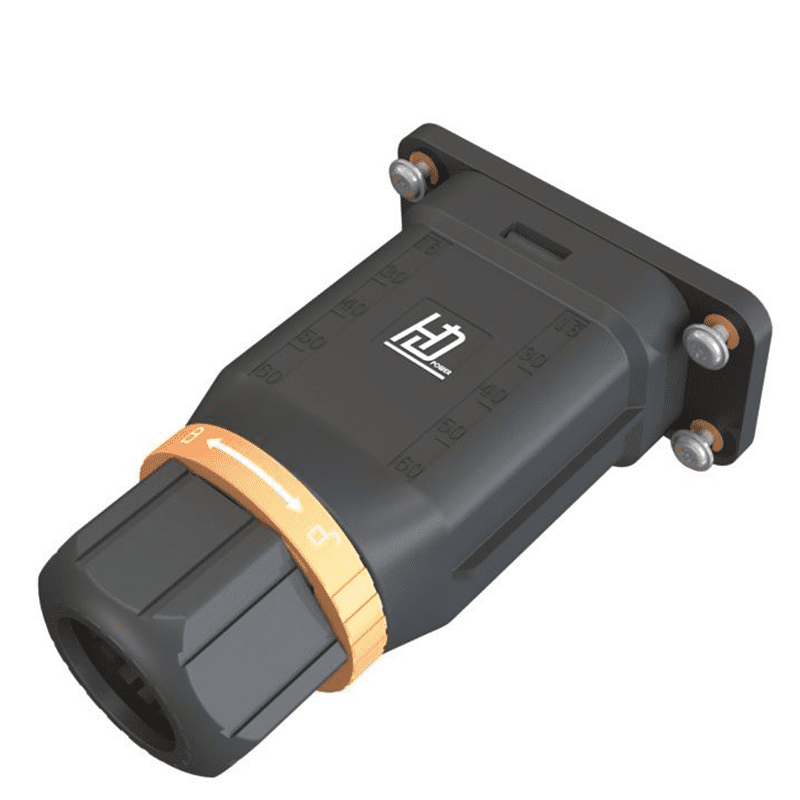

Handa HD brand Waterproof AC Power Terminal Block Connector 76A 5pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Three Phases 12-25KW) AC On-grid port,Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Get a Quote

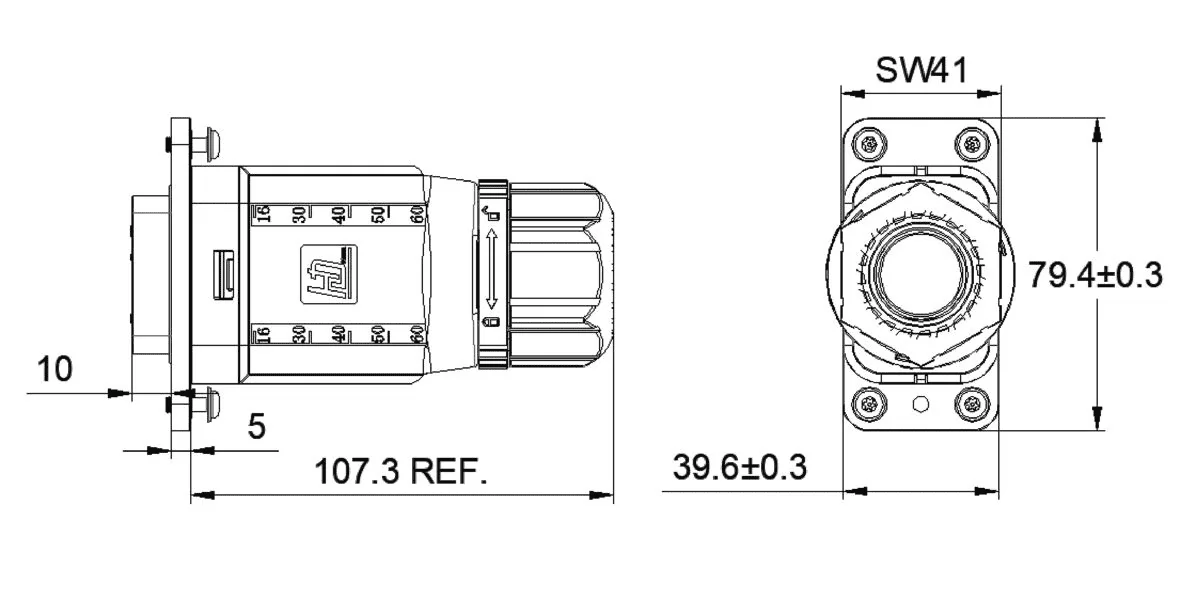

Technical Data

Model	HDB-76i10
Electrical
Rated Voltage	1000V AC
Rated Impulse Voltage	8KV
Rated Current	76A（16mm²）
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Overvoltage Category/ Pollution Degree	CAT III/2
Mechanical
Mating Cycle	N/A
PIN Retention Force	≥80N
Cable Retention Force	≥120N
Wire Size	outside the machine: MAX10 mm²（S），MAX16mm²（H）; inside the machine: 10mm²MAX.
Unlock Mode	Tool unlock
Connector Retention Force	> 80N
Connector Pull-Out Force	＜50N
Enviromental
Waterproof Rate	IP68 （1m 2H）
Application Temperature	-40℃~ 85℃
Flamming Level	UL94-V0
Material
Plastic Material	PC&PBT (f1)
Pin Material	Copper Alloy,Silver Plating
Sealing Material	Sillicone Rubber
Screw Material	SUS
