Solar AC 76A 3PIN Terminal Block Connector

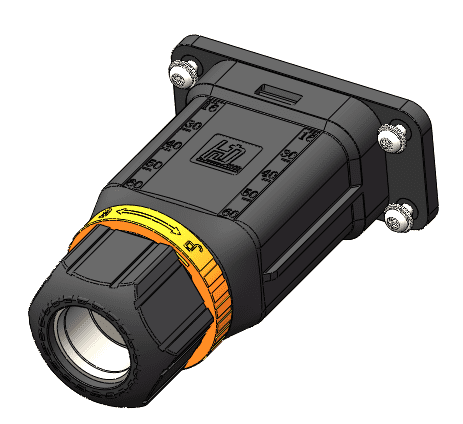

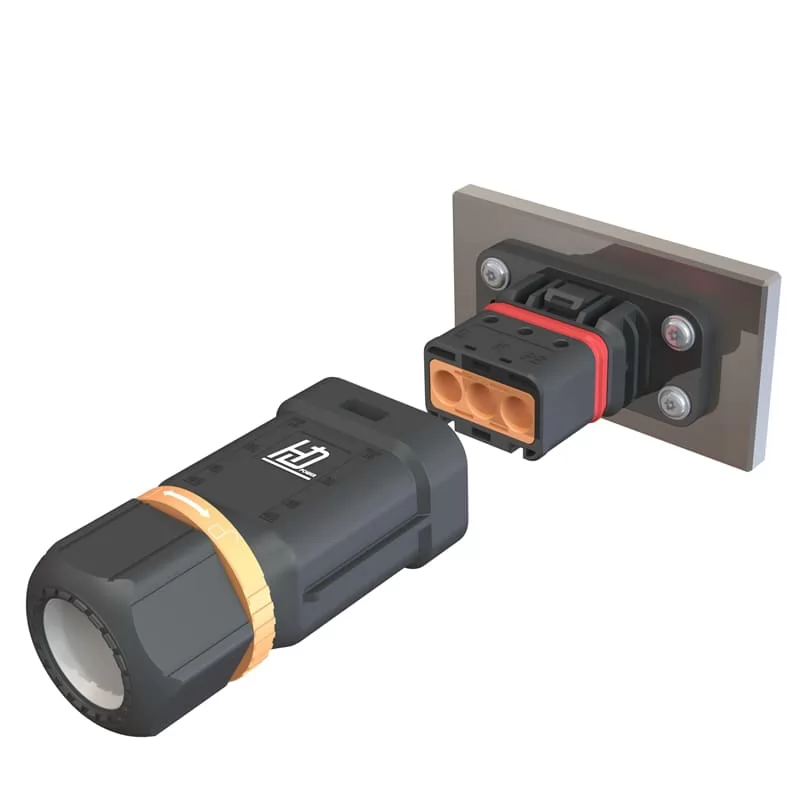

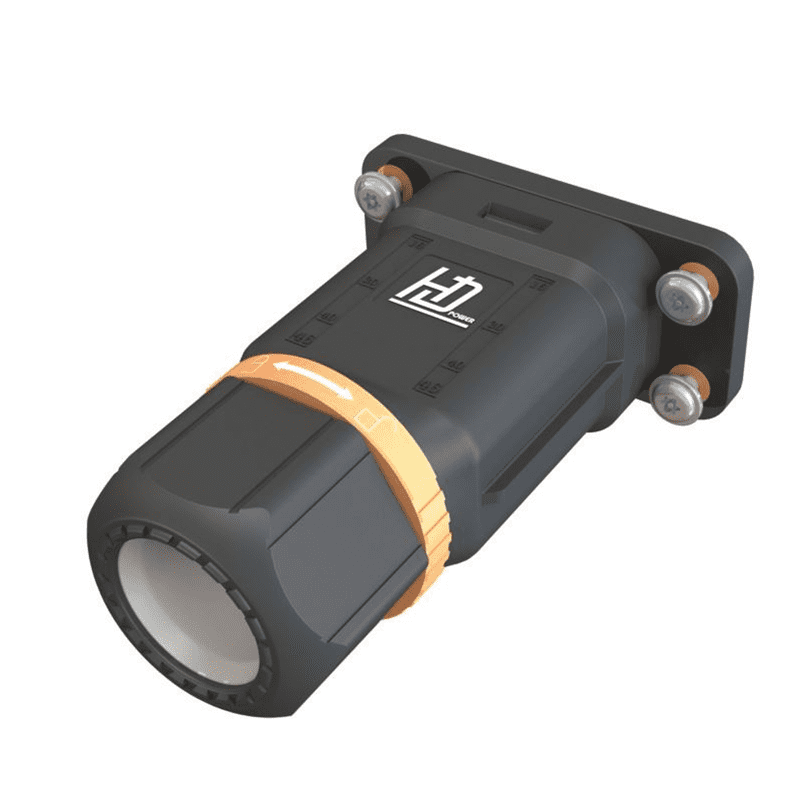

Handa HD brand Waterproof AC Power Terminal Block Connector 76A 3pin Rectangle Connector,panel side and cable side installed all-in-one structure, compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Single Phase 8-10KW) AC On-grid port,Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Get a Quote
Solar AC 76A 3PIN Terminal Block Connector

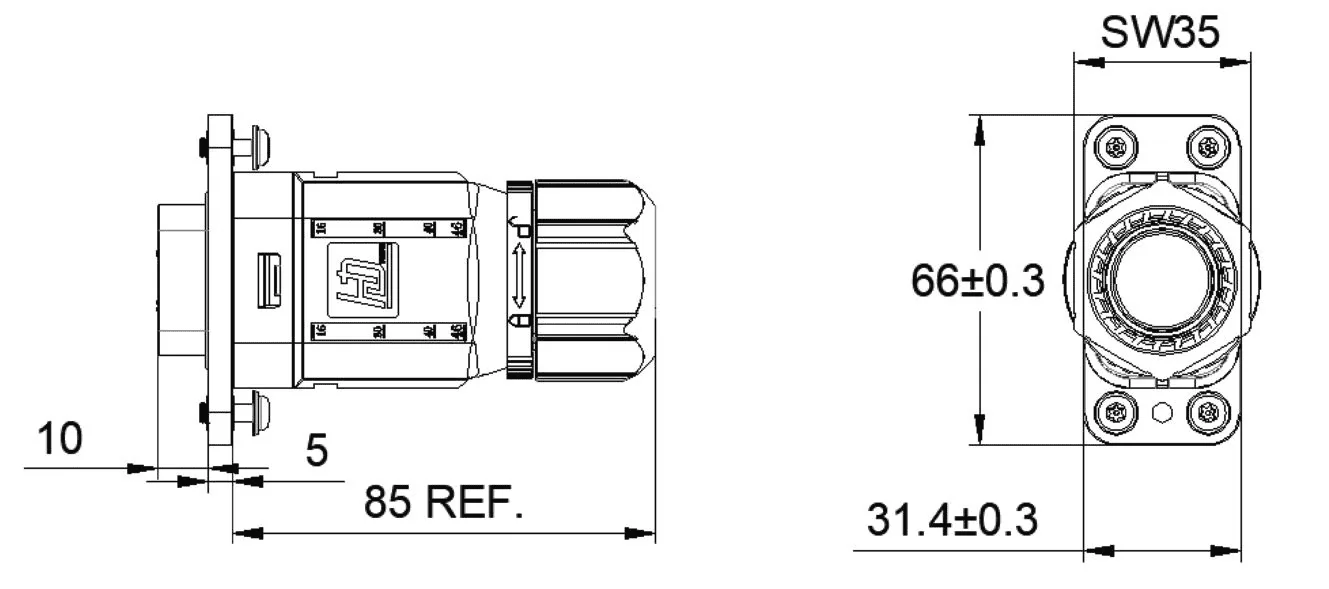

Technical Data

Model HDB-76i3
Electrical
Rated Voltage 1000V AC
Rated Impulse Voltage 8KV
Rated Current 76A(16mm²)
Insulation Resistance   ≥500MΩ
Contact Resistance          ≤2mΩ
Overvoltage Category/ Pollution Degree CAT III/2
Mechanical
Mating Cycle   N/A
PIN Retention Force  ≥80N
Cable Retention Force ≥120N
Wire Size   outside the machine: MAX10 mm²(soft wire),MAX16mm²(hard wire)
inside the machine: 6mm² ~10 mm²(hard wire)
Wire Diameter ≤20mm
Unlock Mode    Tool unlock
Connector Retention Force > 80N
Connector Pull-Out Force <50N
Enviromental
Waterproof Rate IP68 (1m 2H)
Application Temperature -40℃~ 85℃
Flamming Level UL94-V0
Material
Plastic Material PC&PBT (f1)
Pin Material Copper Alloy, Ag Plating
Sealing Material Sillicone Rubber
Screw Material SUS
