Solar AC 65A 3 Pin Off-grid Connector

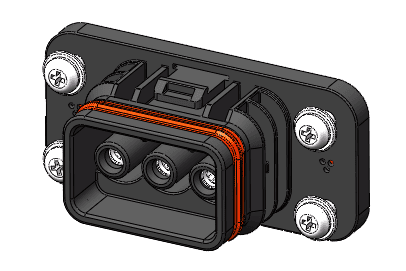

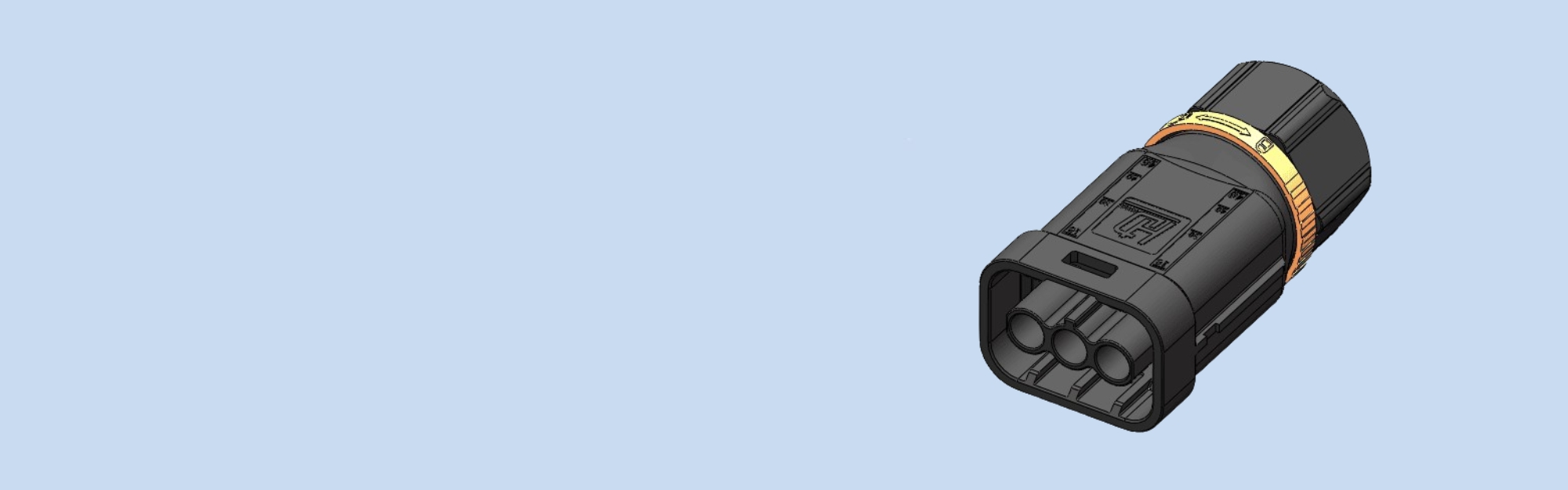

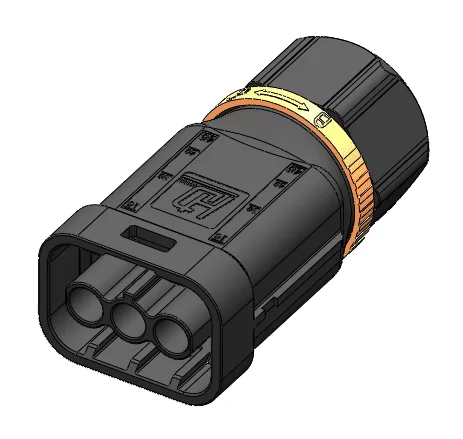

Handa HD brand Waterproof AC Power Connector 65A 3pin Female Socket Panel Connector to Male Plug Cable Connectors, is suitable for PV Solar inverter's(Single Phase 8-10KW) AC Off-grid/Backup/EPS port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Get a Quote

Technical Data

Model	HDC-65i3m1	HDC-65i3f2
Electrical Specification
Rated Voltagee（III/2)	1000V AC	1000V AC
Rated Impulse Voltage（III/2)	8KV	8KV
Rated Current	65A	65A
Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤5mΩ	≤5mΩ
Rated Electrical Parameter	(III / 2) Overvoltage Category III / Pollution Degree 2	(III / 2) Overvoltage Category III / Pollution Degree 2
Mechanical Specification
Mating Cycle	≥1000	≥1000
PIN Retention Force	≥80N	≥80N
Cable Retention Force	≥120N	≥120N
Wire Size	8AWG 9AWG	6mm²~10 mm²(Soft Wire)
Wire diameter	≤7.5mm	/
Unlock Mode	Unlock with tools	Tool unlock
Connector Retention Force	≥80N	≥80N
Connector Pull- Out Force	≤20N	≤20N
Enviromental Specification
Waterproof Rate	IP68 (1m2H)	IP68 (1m2H)
Application Temperature	-40℃~+85℃	-40℃~+85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PC&PBT (f1)	PC&PBT (f1)
Pin Material	Copper Alloy,Silver Plating	Copper Alloy,Silver Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
Screw Material	Fe	SUS
