Solar AC 40A 50A 10PIN Terminal Block Connector

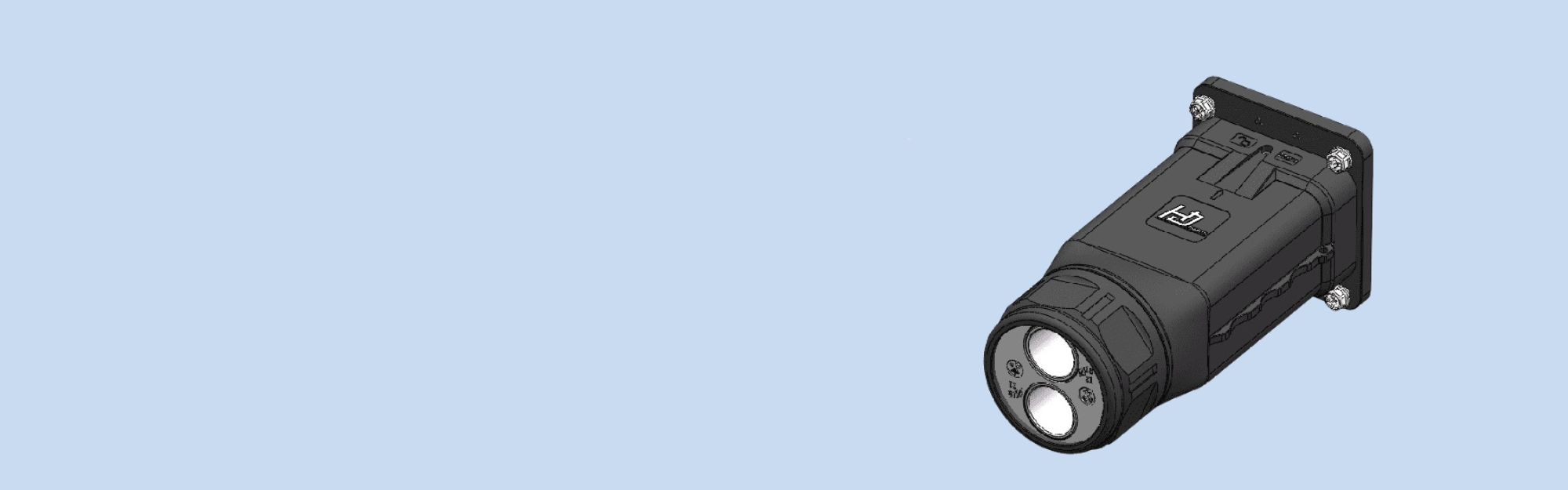

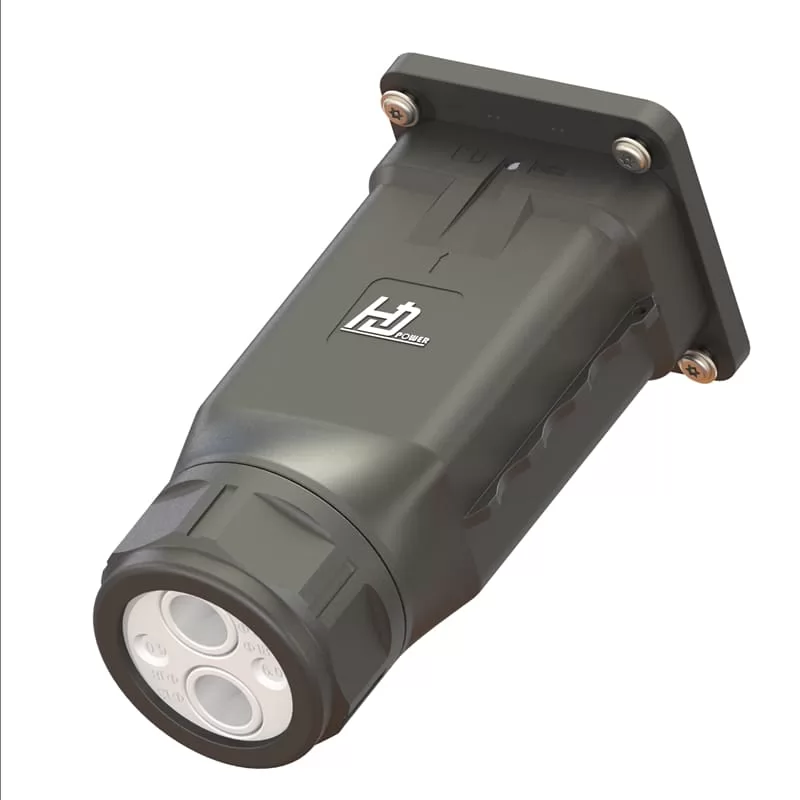

Handa HD brand Waterproof AC Power Terminal Block Connector 40A 50A 10pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter\'s(Three Phases on-grid & Off-grid all-in-one inverter 12-25KW ) AC On-grid & Off-grid/Backup/EPS port(Each port 5pins, total 10pins),Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients\' requirement.

Get a Quote

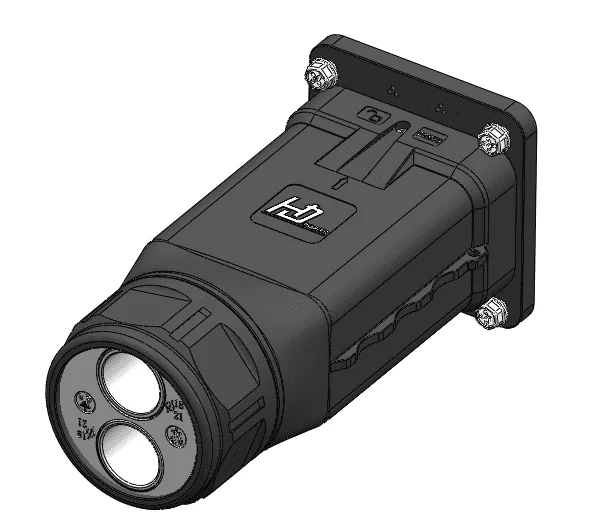

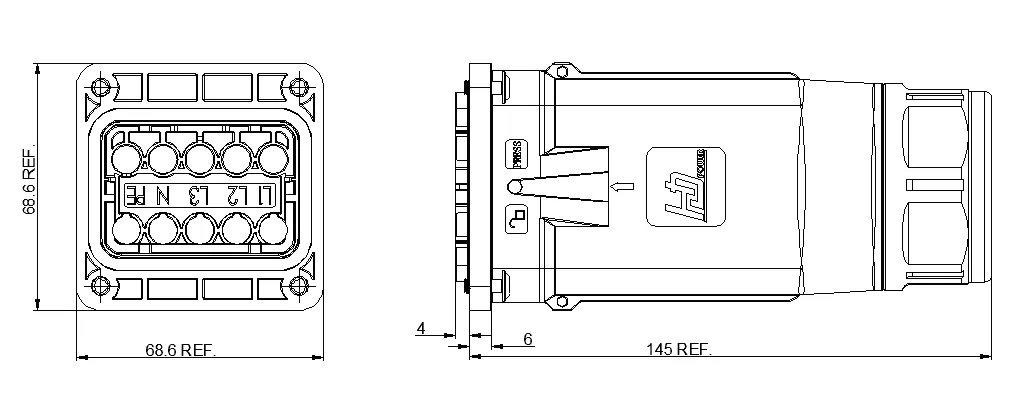

Technical Data

Model	HDB-35i10
Electrical
Rated Voltage	1000V AC
Rated Impulse Voltage	6KV
Rated Current	50A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category/ Pollution Degree	CAT III/2
Mechanical
Mating Cycle	N/A
PIN Retention Force	≥80N
Cable Retention Force	≥120N
Wire Size	outside the machine: 8AWG MAX. inside the machine: 10mm²MAX.
Unlock Mode	Tool unlock
Lock Screw Torsion Force	2.0 ±0.1N·m
Enviromental
Waterproof Rate	IP68 （1m 2H）
Application Temperature	-40℃~ 85℃
Flamming Level	UL94-V0
Material
Plastic Material	PC&PBT (f1)
Pin Material	Copper Alloy, Ag Plating(3-5u)
Sealing Material	Sillicone Rubber
Lock Wire Screw Material	carbon stel
Lock Plate Screw Material	SUS
