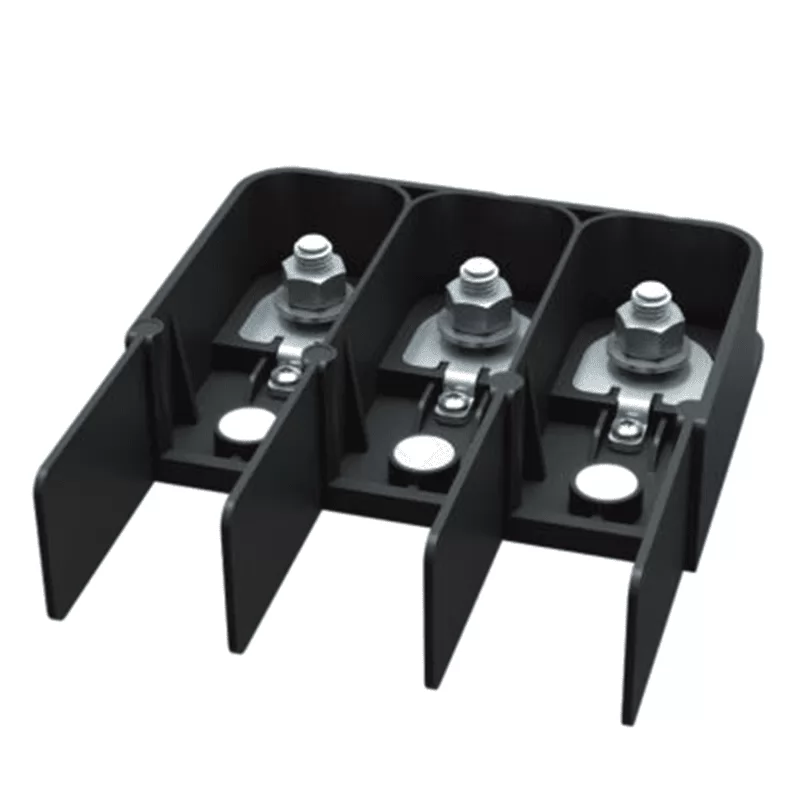

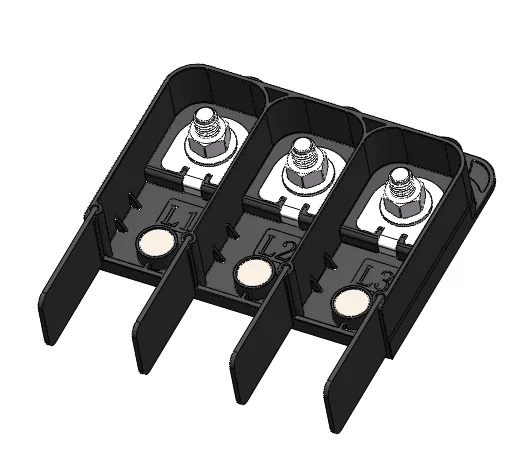

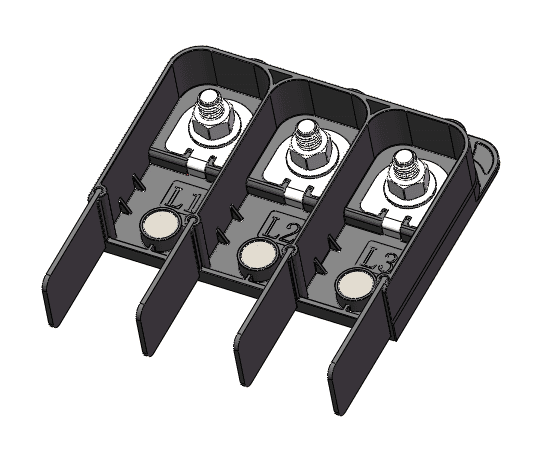

Solar AC 300A 3PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 300A 3pin, L1, L2, L3 3pins screwing locking type, Is suitable for larger capacity industrial and commercial solar inverter's(Three Phases 350KW),IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Get a Quote

Technical Data

Model	HDB-300i3
Electrical Specification
Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV AC
Rated Current	200A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	III / 2
Mechanical Specification
Tightening Torque	M12:20-30Nm(Socket Wrench Opposite Side 19mm)
Scope of Wiring	M12:50-300mm² M5:16mm²MAX
Wire Size	Panel Inside:70mm²MAX. Panel Outside:300mm² MAX.
Enviromental Specification
Waterproof Rate	IP68 (1m2H)
Application Temperature	-40℃~+85℃
Flamming Level	UL94-V0
Material
Plastic Material	PA+GF (f1)
Pin Material	Copper Alloy, Ni Plating
Sealing Material	Sillicone Rubber
Screw Material	Fe+ Zn- Ni Alloy Plating, SUS
