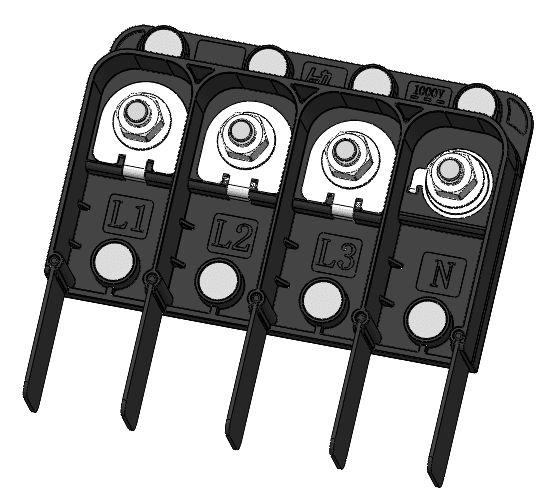

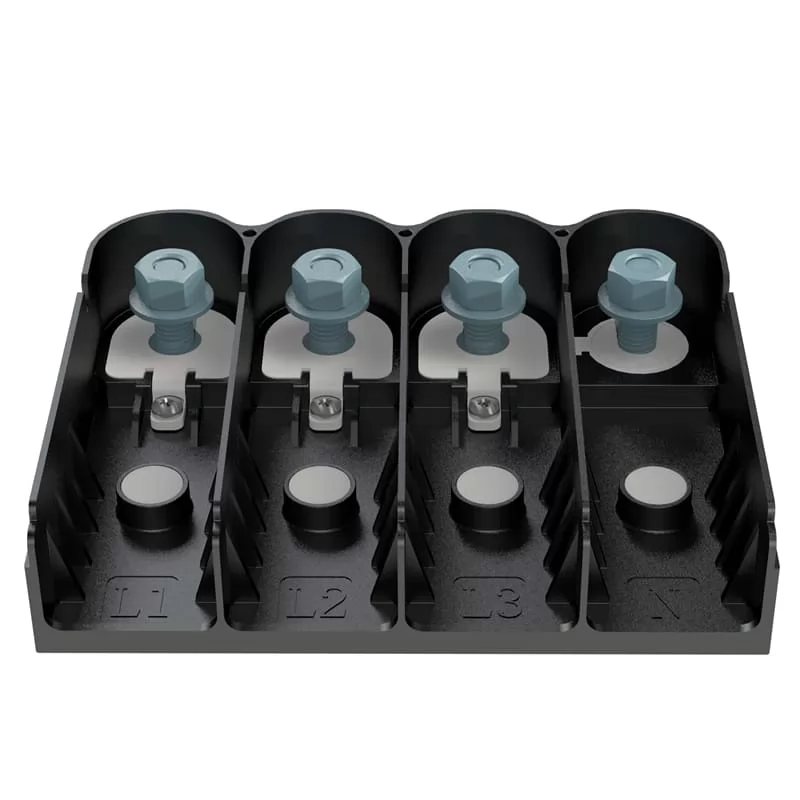

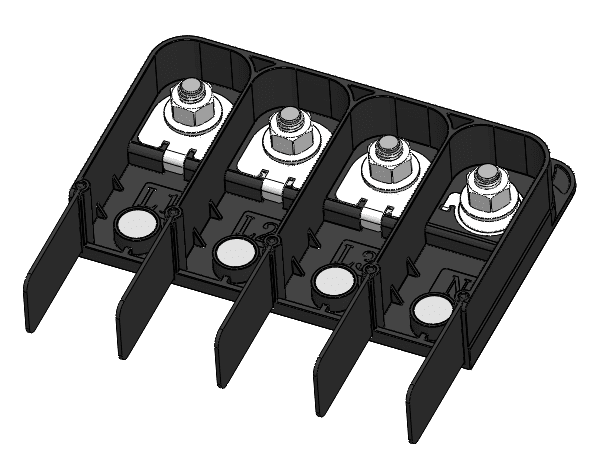

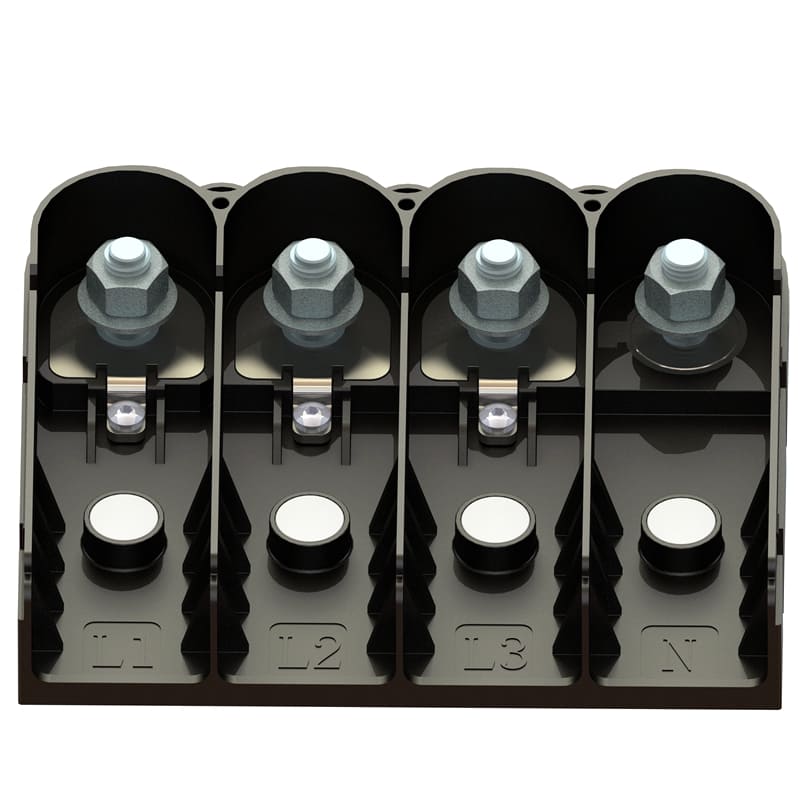

Solar AC 200A 4PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 200A 4pin, L1, L2, L3 and N 4pins screwing locking type, Is suitable for larger capacity industrial and commercial solar inverter's(Three Phases 100-136KW),IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Get a Quote

Technical Data

Model	HDB-200i4
Electrical Specification
Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV AC
Rated Current	200A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	III / 2
Mechanical Specification
Tightening Torque	M12:20-30Nm(Socket Wrench Opposite Side 19mm)
Scope of Wiring	M12:50-300mm² M5:16mm²MAX
Wire Size	Panel Inside:70mm²MAX. Panel Outside:300mm² MAX.
Enviromental Specification
Waterproof Rate	IP68 (1m2H)
Application Temperature	-40℃~+85℃
Flamming Level	UL94-V0
Material
Plastic Material	PA+GF (f1)
Pin Material	Copper Alloy, Ni Plating
Sealing Material	Sillicone Rubber
Screw Material	Fe+ Zn- Ni Alloy Plating, SUS
