Solar AC 100A 5PIN Terminal Block Connector

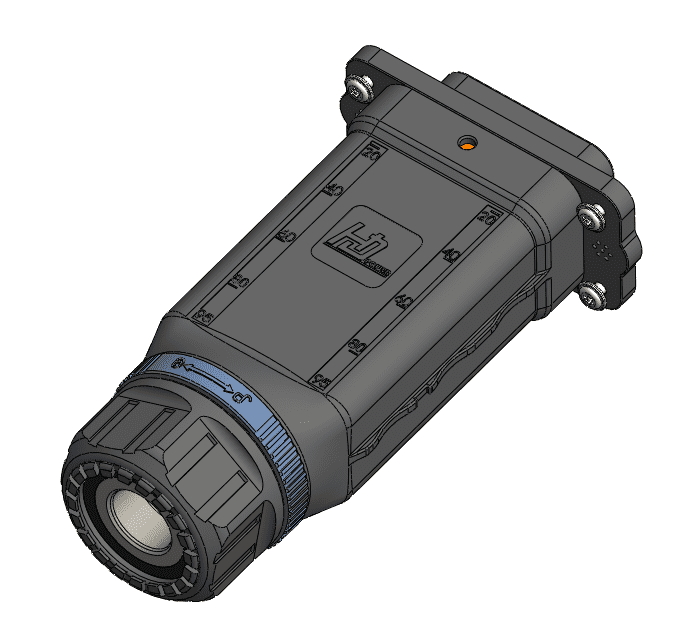

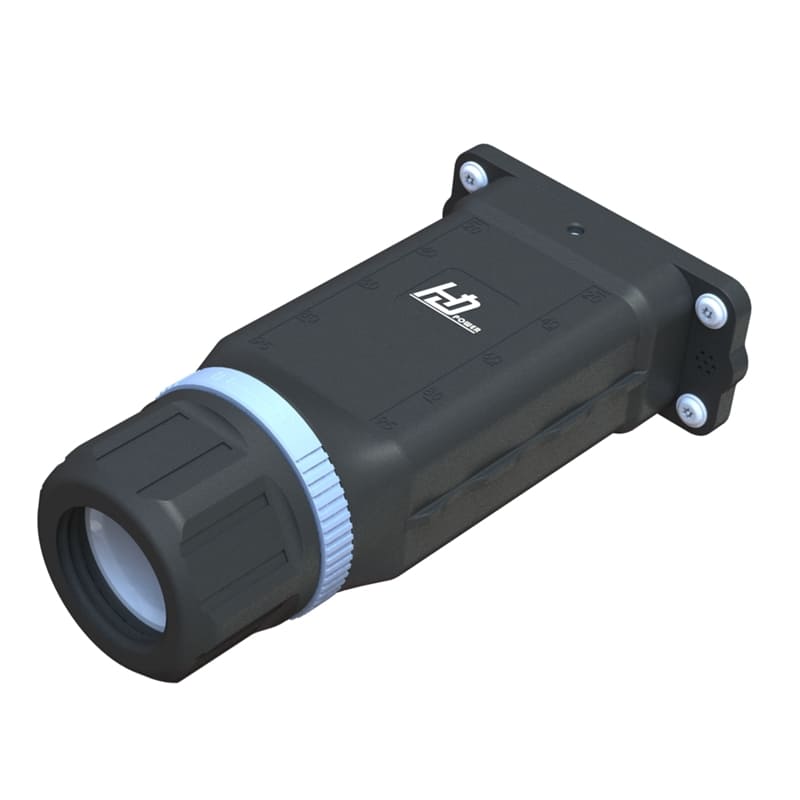

Handa HD brand Waterproof AC Power Terminal Block Connector 100A 5pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Three Phases inverter 25-40KW), AC port,Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Get a Quote

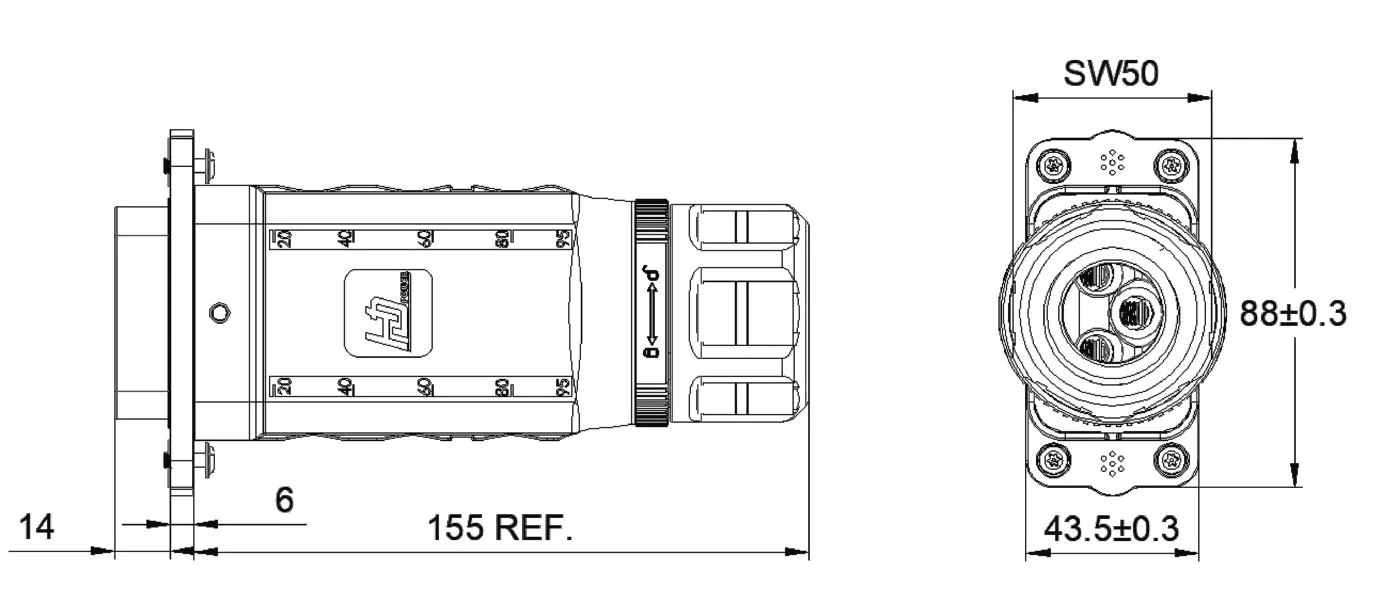

Technical Data

Model	HDB-100i5
Electrical Specification
Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	6KV
Rated Current	100A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	II / 2
Mechanical Specification
Mating Cycle	N/A
PIN Retention Force	≥80N
Cable Retention Force	≥120N
Wire Size	outside the machine: 6AWG MAX.(Soft Wire); inside the machine: 10mm²~25mm²(Soft/Hard) 35mm²MAX. (YJLV)
Unlock Mode	Unlock with tools
Connector Retention Force	>300N
Connector Pull- Out Force	＜50N
Lock Screw Torsion Force	4.0 ±0.1N·m
Enviromental Specification
Waterproof Rate	IP68 (1m2H)
Application Temperature	-40℃~+85℃
Flamming Level	UL94-V0
Material
Plastic Material	PC&PBT (f1)
Pin Material	Copper Alloy,Sn Plating
Sealing Material	Sillicone Rubber
Screw Material	SUS
