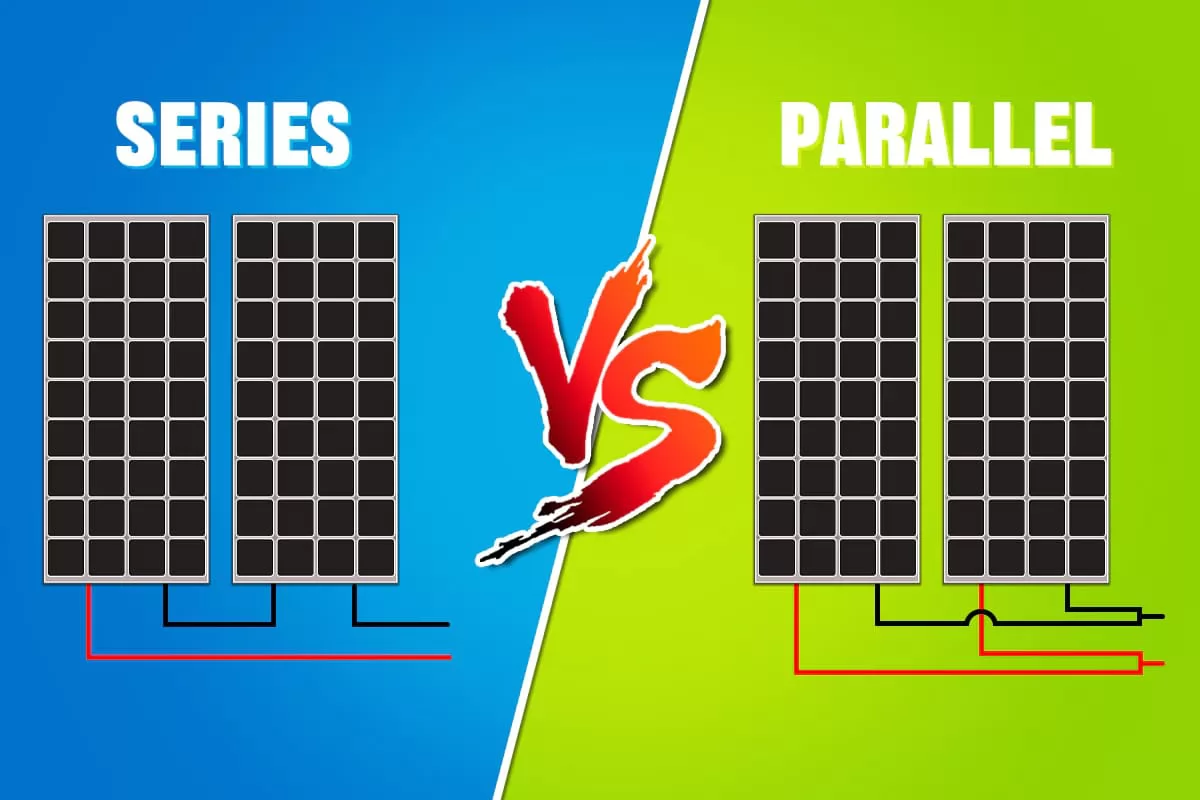

Series vs Parallel Solar Panels Connection - Why&How

Welcome to our blog! Solar energy, as a clean and renewable source of power, is gaining more and more popularity. Solar panels, also known as photovoltaic panels, are the key components in a solar energy system, converting sunlight into electrical energy. To maximize the efficiency and output of solar panels, understanding how to correctly connect them is crucial. Solar panels can be connected in two primary ways: Series and Parallel. Each connection method has its characteristics and scenarios where it is most suitable, and choosing the right connection method can significantly impact the performance and reliability of a solar energy system.

Our goal is to help you understand when to choose series or parallel connections and how to make these connections. We're going to look at the pros and cons of each connection method and how they affect the performance of a solar energy system. We'll also chat about why it's so important to choose the right solar connectors and how to select the most appropriate ones based on system requirements and installation environment.

Get ready to be inspired!

2. Importance of Choosing Solar Panel Connection Method

There are two main ways to connect solar panels: series connection and parallel connection. These two ways have an important impact on the performance, output voltage and current of the whole solar system. The correct connection not only improves the efficiency of the system, but also ensures the long-term stable operation of the system.

Series Connection: The voltage increases while the current remains the same. This method is ideal when higher voltage is needed, such as for long-distance power transmission.

Parallel Connection: The current increases while the voltage remains the same. This method is beneficial when you need more current or when the system must be more resilient to shading or panel failure.

In the following sections, we’ll dive deeper into how each connection method works and its specific advantages.

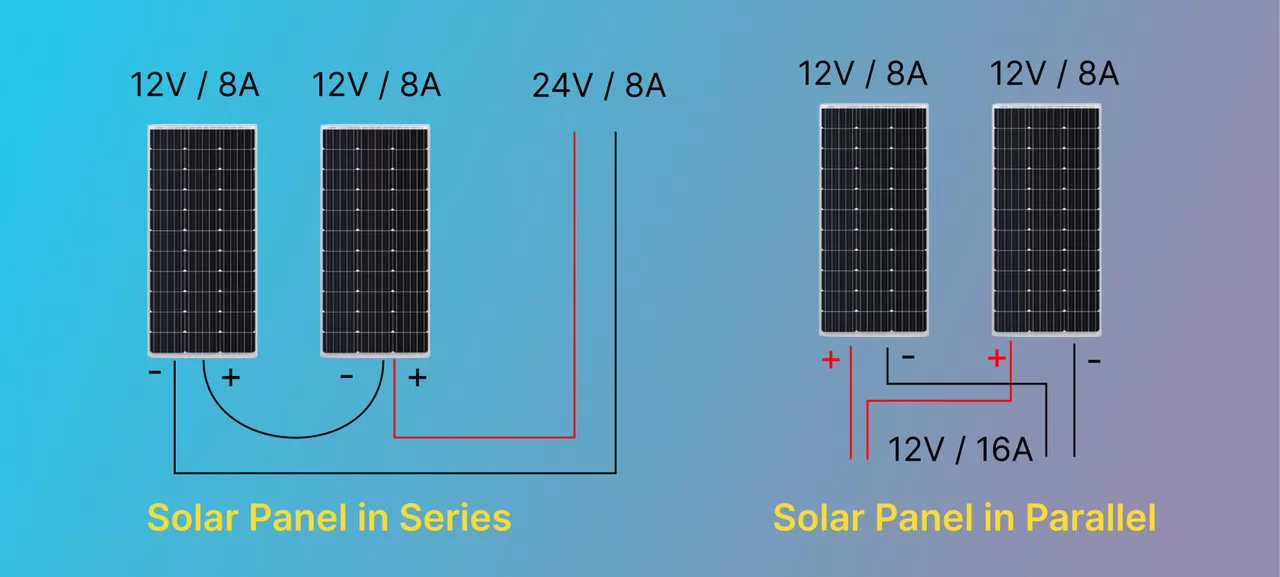

3. What is a Series Connection?

In a series connection, solar panels are connected one after another, where the positive terminal of one panel is connected to the negative terminal of the next panel. This increases the overall voltage of the system while keeping the current the same as a single panel.

How it works

In a series connection, the voltage of each panel adds up, but the current remains constant. For example, if each panel produces 20V and you connect five panels in series, the total voltage would be 100V (20V x 5). However, the current remains the same as the current of a single panel.

Advantages

Higher Voltage: By connecting in series, multiple solar panels can be combined to form a power supply with a higher output voltage, which is beneficial for applications that require long distance transmission or matching specific voltage requirements.
Simple Wiring: In large solar panel arrays, series connections can simplify wiring design by reducing the number and length of wires, thereby reducing cost and installation complexity.

Disadvantages

Short Board Effect: A degradation in the performance of any one solar panel in a series system (e.g., shadow shading, damage, etc.) will affect the current output of the entire system, resulting in a reduction in overall efficiency. This is because the current is uniform in a series circuit and the weakest solar panel will limit the overall current.
Voltage Limitations: If the total voltage exceeds the inverter's rated capacity, it may cause overvoltage issues.

4. What is a Parallel Connection?

In a parallel connection, the positive terminals of all solar panels are connected to each other, and the negative terminals are also connected together. This increases the current while keeping the voltage the same as a single panel.

How it works

In a parallel connection, the current from each panel adds up, but the voltage remains unchanged. For example, if each panel produces 20V and you connect five panels in parallel, the total voltage is still 20V, but the total current will be the sum of the currents from all five panels.

Advantages

Higher Current: Ideal when your system needs more current, which is often the case in smaller systems or systems with lower voltage requirements.
Independence: Solar panels connected in parallel can work independently without interfering with each other. A drop in performance of one solar panel will not affect the output of other panels, thus improving the overall stability and reliability of the system.
Better Shadow Tolerance: Under unfavourable conditions such as shadow shading, a parallel system is better able to maintain overall output power because the shaded solar panels do not limit the current to other panels.

Disadvantages

Complex wiring: Each parallel solar panel requires individual wire connections, adding to the complexity and cost of wiring. In large systems, this can lead to confusing wiring and difficult maintenance.
Increased Losses in Cables: With higher current, there can be more power loss in cables, which may require thicker cables or more efficient designs.

5. Comparing Series vs Parallel Connections

When choosing between series and parallel connections for your solar panels, it's essential to understand the differences in efficiency, power output, and system complexity. That's why we've put together this handy comparison to help you decide which is best for your solar energy needs.

1. Efficiency and Power Output

Series Connection

Voltage Increase: The main advantage of a series connection is the increase in voltage. The voltage of each panel adds up, so if you connect multiple panels in series, you can achieve a higher voltage that may be needed for certain inverters or to cover longer distances with less power loss.
Lower Current: In series, the current stays the same as that of a single panel, which means less current is flowing through the system. This reduces losses in cables and can be more efficient over long distances.

Parallel Connection

Current Increase: In a parallel connection, the current is the sum of the currents from all the panels, while the voltage remains the same as one panel. This is ideal if your system needs higher current, such as when you are charging batteries or have higher power consumption needs.
Constant Voltage: The voltage output stays the same as one panel, so there’s no increase in voltage. This makes parallel connections more suitable for systems where the voltage needs to remain low and consistent.

2. Shading and Reliability

Series Connection

Shading Sensitivity: One of the major drawbacks of series connections is that if one panel is shaded or malfunctioning, the performance of the entire string of panels is affected. This is because the current is the same throughout the series, and if one panel produces less current, the whole system's output drops.
System Reliability: In series systems, even a small problem with one panel (such as dirt, debris, or shading) can cause a significant reduction in the overall energy production.

Parallel Connection

Better Performance in Shaded Conditions: Parallel connections are more tolerant to shading because the voltage remains the same across all panels. If one panel is shaded or not functioning, the other panels continue to operate normally, minimizing the impact on the overall system.
Improved Reliability: Since each panel operates independently in a parallel system, the overall reliability of the system is higher, and the failure of one panel doesn’t drastically reduce the performance of the entire array.

3. Cost and Complexity

Series Connection

Lower Wiring Costs: Fewer cables are needed in a series configuration, making it simpler and cheaper to wire up compared to a parallel connection.
Simpler System Design: Series connections are generally easier to design and install for larger systems, especially when the panels are placed far apart, as the voltage can be transmitted over long distances with less loss.
Potential for Overvoltage: However, if the total voltage exceeds the inverter's voltage rating, you may need additional components like voltage regulators or more costly inverters to handle the higher voltage, which can increase the system cost.

Parallel Connection

Higher Wiring Costs: Since each panel's positive and negative terminals need to be connected separately, the wiring and cabling costs tend to be higher in a parallel setup.
More Complex Design: Parallel connections require more careful consideration when designing the system, especially when dealing with large currents, as this may require thicker cables and additional protection devices (e.g., fuses) to prevent overheating.
More Equipment Needed: Parallel systems often require more sophisticated charge controllers or protective devices to handle the increased current safely.

4. System Expansion

Series Connection

Limited by Voltage: When expanding a series-connected system, the voltage increases with each added panel, so you must be cautious not to exceed the voltage rating of your inverter or charge controller. This limits how many panels can be added before you reach the voltage capacity.

Parallel Connection

Easier to Expand: Parallel connections are generally easier to expand. Adding more panels simply increases the current, and as long as the voltage remains the same, you won’t encounter any issues with exceeding voltage limits. However, you must ensure that the system is capable of handling the increased current, which may require larger cables and updated charge controllers.

5. Suitability for Different Applications

Series Connection

Ideal for High-Voltage Systems: Series connections are ideal for applications that require high voltage, such as larger residential or commercial systems, or when using string inverters that require high-voltage inputs.
Best for Minimal Shading: Since shading can impact the performance of the entire system, series connections are best used in areas with minimal shading or where panel orientation and maintenance are carefully optimized.

Parallel Connection

Parallel connections are often used in off-grid systems, battery-based setups, and when the inverter or charge controller requires a lower input voltage.
Good for Systems with Shading Issues: Parallel configurations are better for locations that experience shading at certain times of the day or have partially obstructed panels, as individual panels can still produce power even if others are blocked.

Considering the advantages and disadvantages of series and parallel connections, the following conclusions can be drawn:

1. In applications with favorable light conditions, low shadow shading and high voltage requirements, series connection may be a more suitable option. However, in order to maximize overall efficiency, it is necessary to ensure that solar panels connected in series have similar performance and quality.

2. In applications where light conditions are unstable, shadow shading exists, or where there is a high requirement for system stability, parallel connection may be a better choice. Parallel systems provide better shadow tolerance and independence, but require attention to wiring complexity and cost issues.

In practical applications, the best connection method may be a combination of series and parallel connection (i.e., series-parallel hybrid connection). Through reasonable design and layout, the advantages of series and parallel connection can be fully utilized to achieve the maximum efficiency and stability of the solar panel system. This requires professional engineers to perform detailed analysis and calculations to ensure the optimal performance and economic benefits of the system.

6. How to Choose the Right Solar Connector for Your System

We know how important it is for you to choose the right solar connector for your solar energy system. After all, the connectors are the essential components that link solar panels to the rest of the system, and they play a significant role in maintaining the electrical integrity of your setup. So, we're here to help you select the ideal connector!

There are several factors you need to consider:

Connector Type (MC4 or Other)
System Voltage Rating
Current Rating
Environmental Conditions
Ease of Installation
Compatibility
Durability and Lifespan
Safety Features
Connector Size and Number of Poles

Pro Tip: If you're unsure which connectors are best for your specific system, consult the solar panel or inverter manufacturer’s recommendations for compatible connectors. Additionally, working with a certified solar installer can help ensure the proper choice of connectors for optimal performance and safety.

We'd love to recommend Handa, a fantastic professional manufacturer of solar connectors. They offer high-quality and reliable connection solutions, and are dedicated to providing innovative products for global customers like you. They'll make sure your system is stable and efficient for a long time to come!

Solar DC Connector

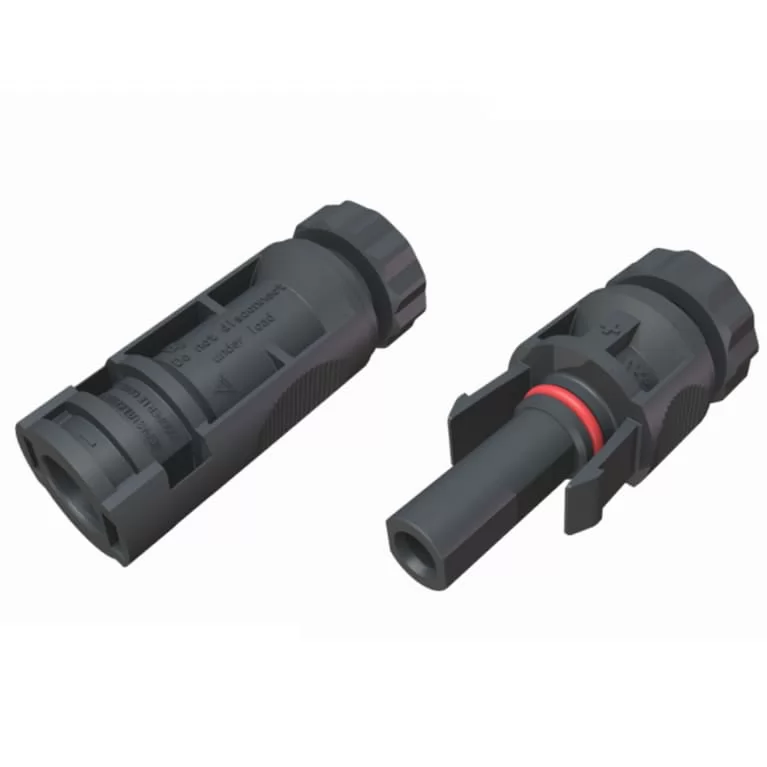

PV Solar Male Female Cable Connector

The Handa HD HDC4 PV solar connectors are 1500V TUV and CSA certified, made with pure red copper pins. They support 2.5mm² (30A), 4mm² (41A), and 6mm² (55A) wiring and are compatible with major solar..

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage category/Pollution degree	CAT III/2
Safety class	II

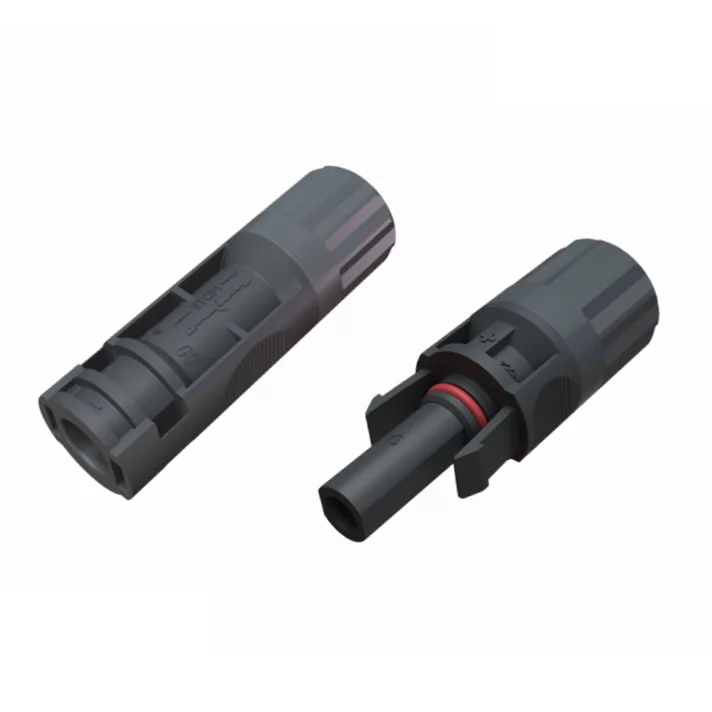

PV Solar Male Female Panel Mount Connector

Handa HD HDC4 panel mount PV Solar connectors can be directly mounted, by means of screw thread. It is the ideal solution to connect your PV solar cable male or female connectors as a string input to an..

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage category/Pollution degree	CAT III/2
Safety class	II

7. Conclusion

In conclusion, the choice between series and parallel solar panel connections depends on the specific needs of your solar system.

Series connection is ideal for higher voltage requirements and longer distances, as it reduces current and power loss. However, if one panel fails, it affects the whole system.

Parallel connection maintains stable voltage and is more resilient in shaded conditions, as one panel's failure won't impact the others. However, it may cause more power loss over longer distances due to higher current.

Ultimately, choosing the right solar connector plays a significant role in ensuring the efficiency, safety, and longevity of your solar system.

For a free consultation about solar connectors, click here please.
