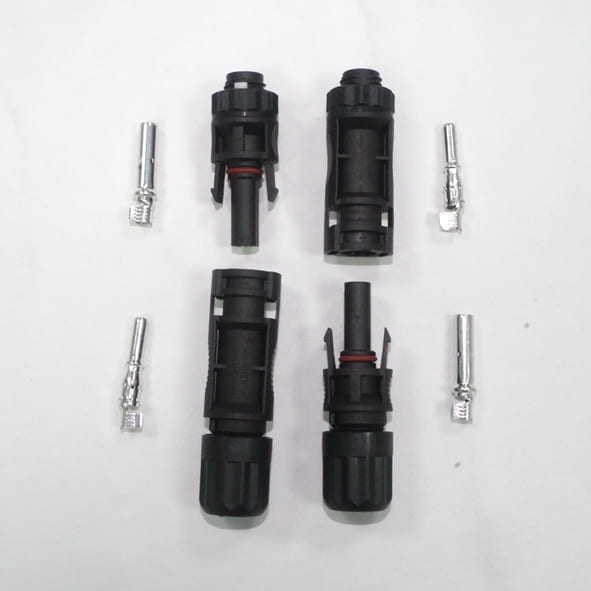

PV Solar Male Female Panel Mount Connector

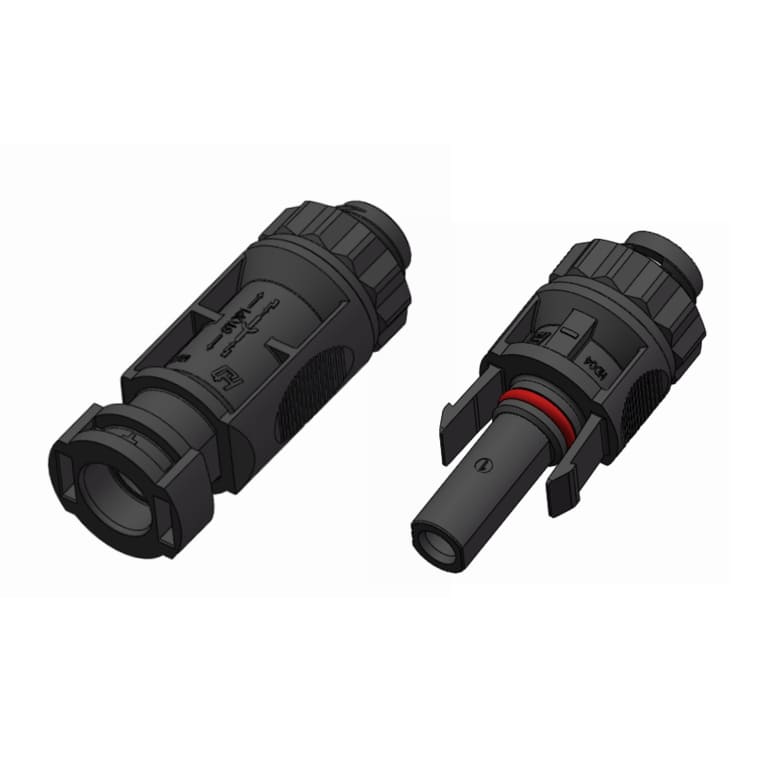

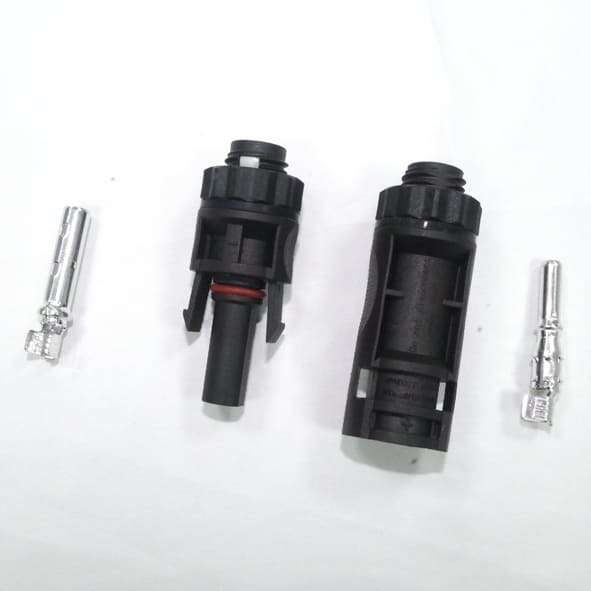

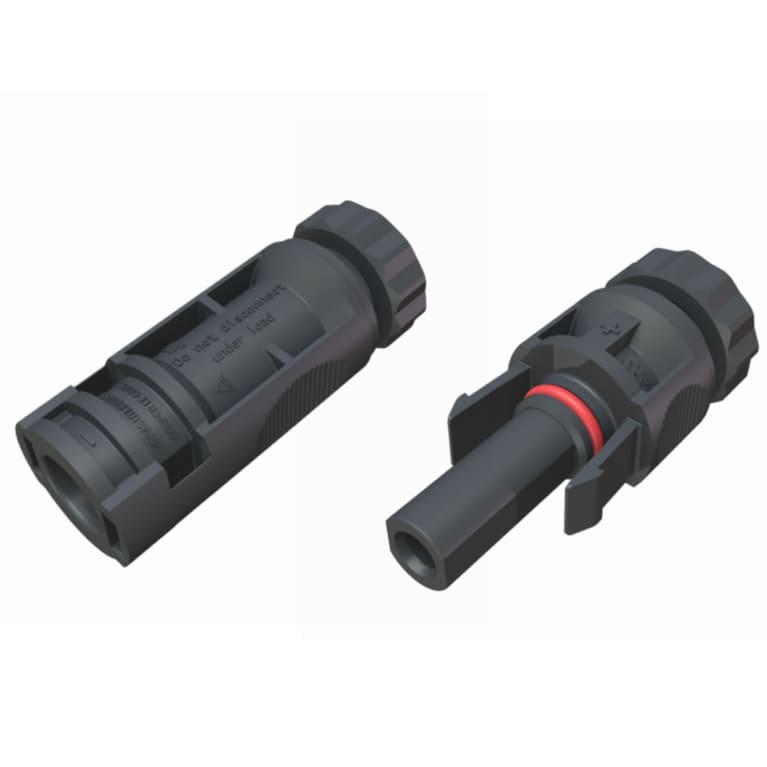

Handa HD HDC4 panel mount PV Solar connectors can be directly mounted, by means of screw thread. It is the ideal solution to connect your PV solar cable male and female connectors as a string input to an inverter or a MLPE device.

Get a Quote

PV Solar Male Female Panel Mount Connector

Technical Data

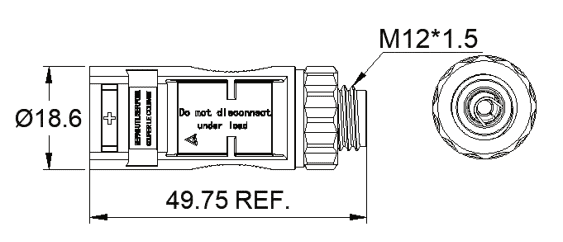

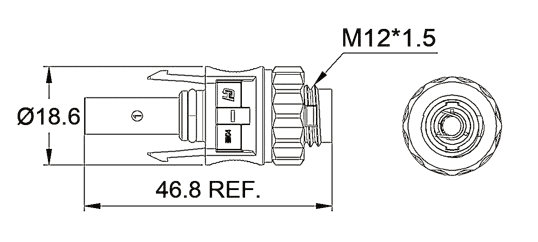

Model	HDC-41f3	HDC-41m3
Electrical
Rated Voltage	1500V DC	1500V DC
Rated Impulse Voltage	16KV	16KV
Rated Current (85℃)	30A for 2.5mm² 41A for 4mm ² 55A for 6mm ² 70A for 8AWG	30A for 2.5mm² 41A for 4mm ² 55A for 6mm ² 70A for 8AWG
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.25mΩ	≤0.25mΩ
Overvoltage Category/ Pollution Degree	CAT III/2	CAT III/2
Safety Class	Ⅱ	Ⅱ
Mechanical
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Cable Retention Force	≥180N	≥180N
Wire Size	2.5mm²~8AWG (5.5mm~7.25mm)	2.5mm²~8AWG (5.5mm~7.25mm)
Unlock Mode	unlock without tools unlock with tools	unlock without tools unlock with tools
Connector Retention Force	≥80N	≥80N
Connector Pull-Out Force	≤20N	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)	IP65/IP68 (1m,1H)
Application Temperature	-40℃~ 85℃	-40℃~ 85℃
Max. Operating Temperature	85℃	85℃
Flamming Level	UL94-V0	UL94-V0
Ammonia Resistance	Pass	Pass
Material
Plastic Material	PA(f1)	PA(f1)
Pin Material	Copper Alloy, Sn Plating	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber

Certification/Certificate

TUV Certification

Logo	Certification	Reference Standard	Certification No.
	TÜV Rheinland	IEC62852	R50506030

Installation Tool

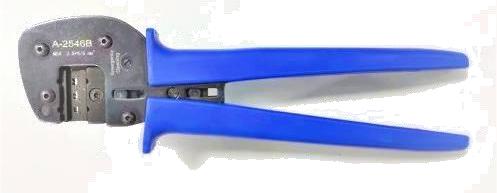

	Rivet Plier

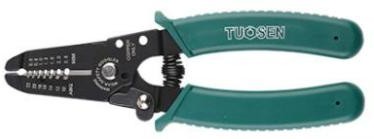

	Wire Stripper

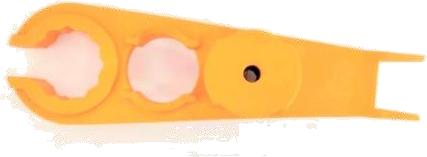

	Wrench

Installation Instructions

Dimension of stripping wire inside machine

Installation Steps

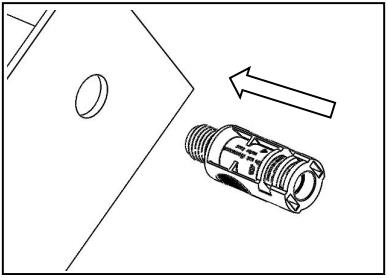

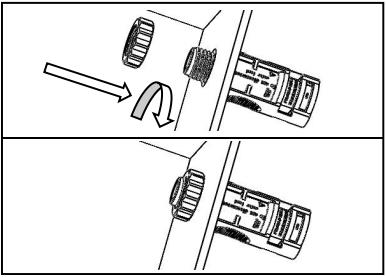

1.Assemble the panel mount positive connector on the panel hole.

2.Clockwise tighten the nut throughthewrenchwith torque 3.8±0.2N.m.

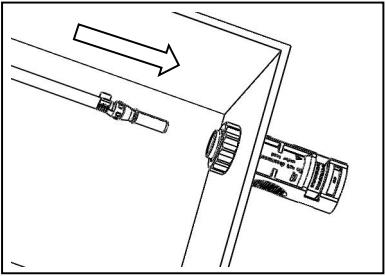

3.Crimping the stripped wire to the terminal, then insert it into the panel mount positive connector.

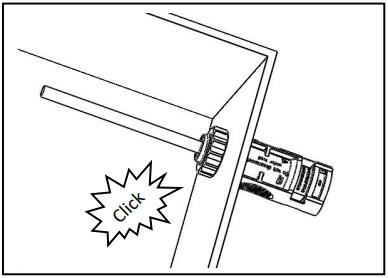

4.Complete the installationwhilehearing "Click" sound.

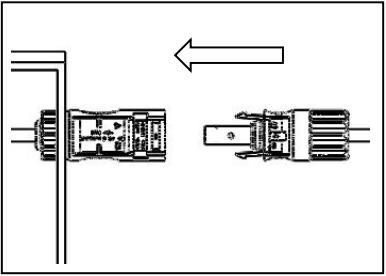

5.Insert cable end positive connector into panel mount positive connector.

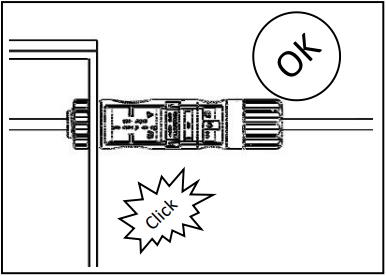

6.Complete the installationwhilehearing "Click" sound.

Tool Unlock Instruction

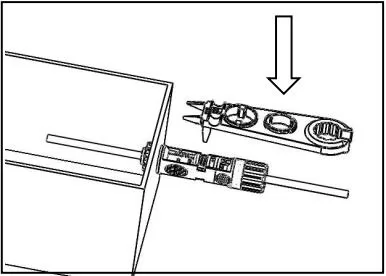

(Please use the dedicated unlock wrench as shown)

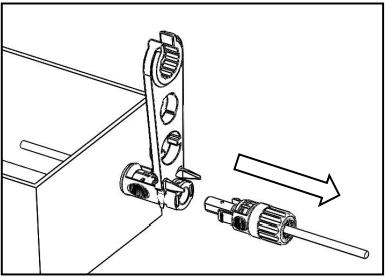

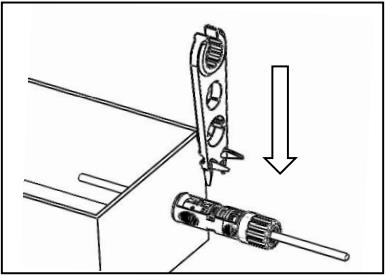

Insert the wrench pawl into the slot position of the connector rubber core.

Push the slot part to separate it withthewrench, thenpull out the connector.

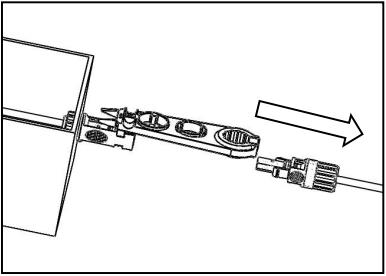

Insert the wrench pawl into the slot position of the connector rubber core.

Push the slot part to separate it with thewrench, thenpull out the connector.

Unlock Instruction (Non-tool Unlock)

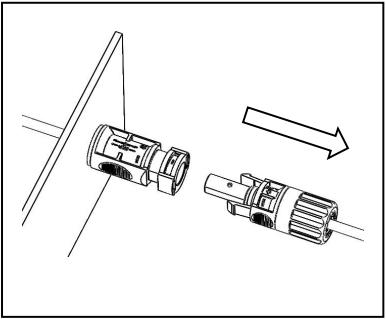

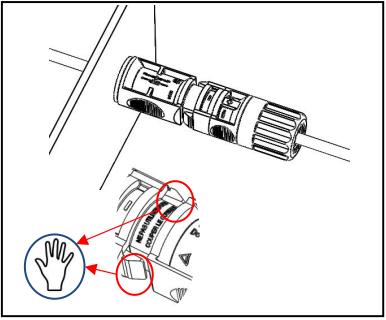

Hold and press the wings of the panel mount positive connector.

Then pull out the connector.
