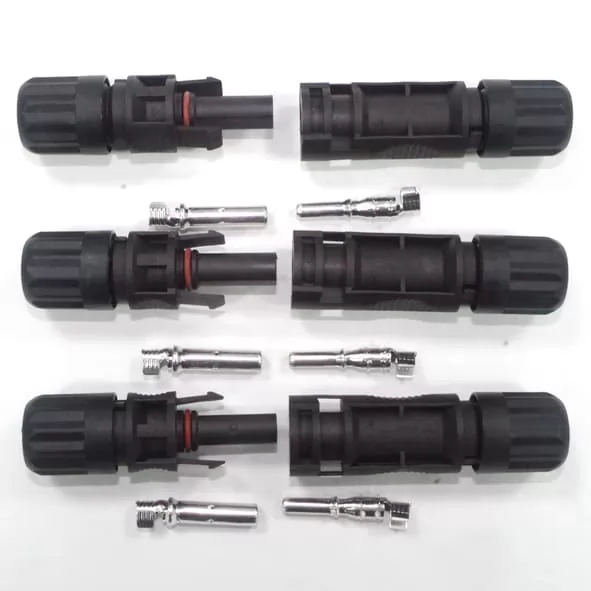

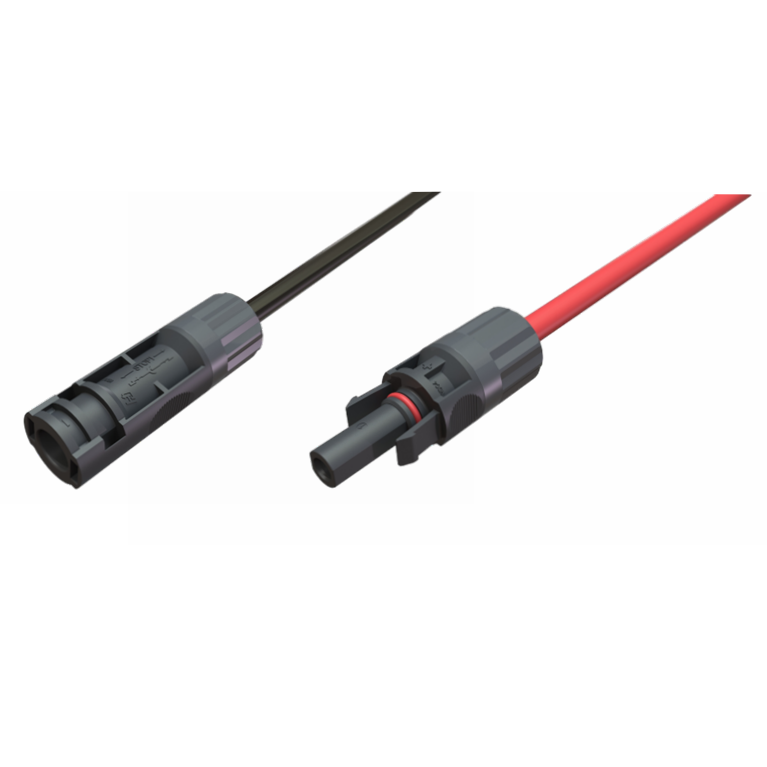

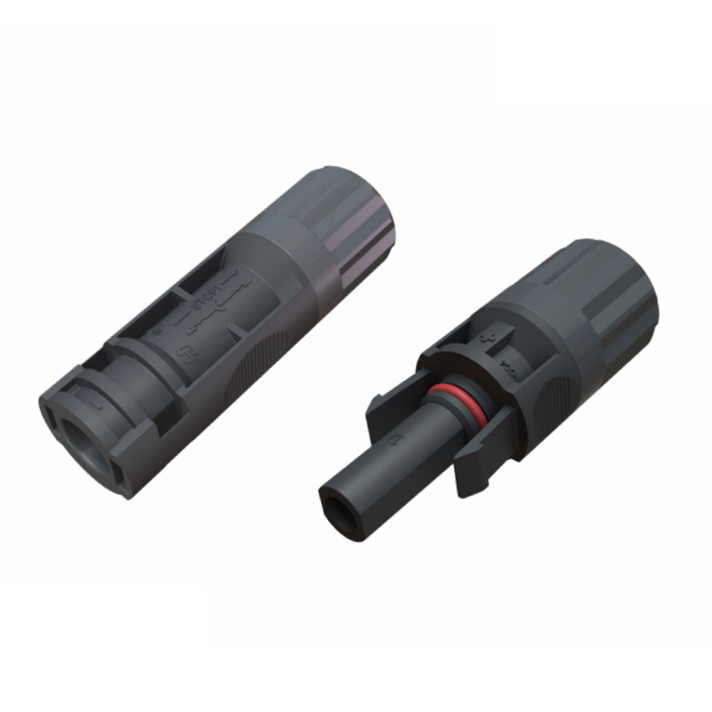

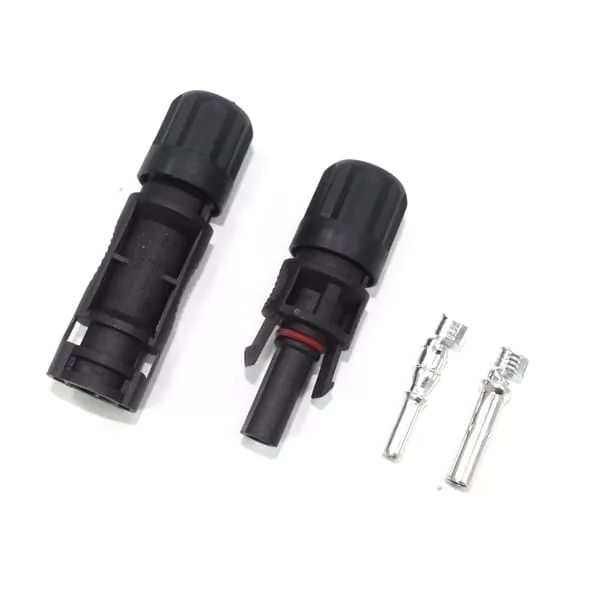

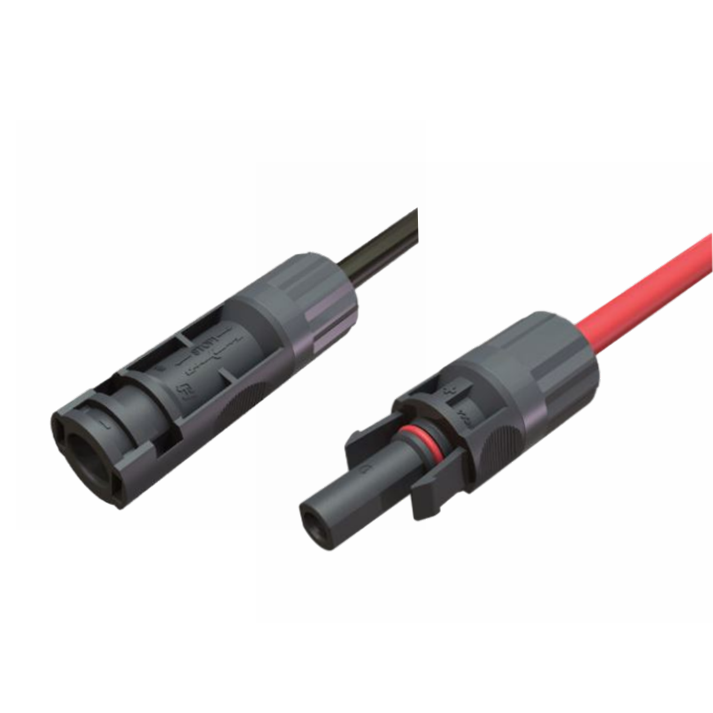

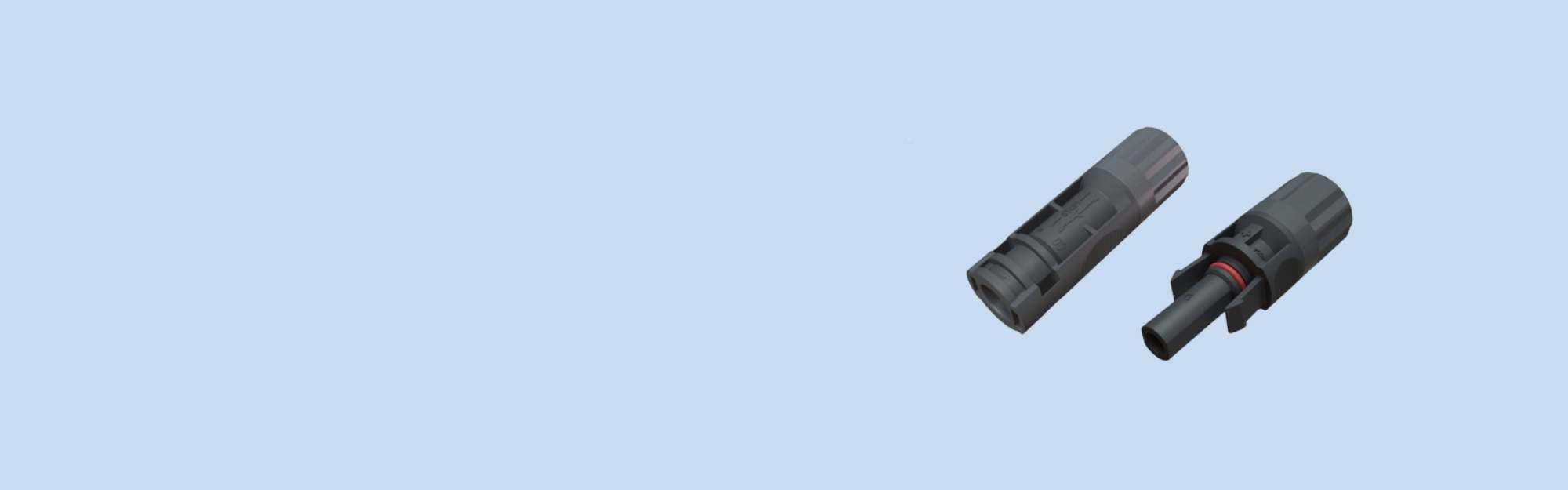

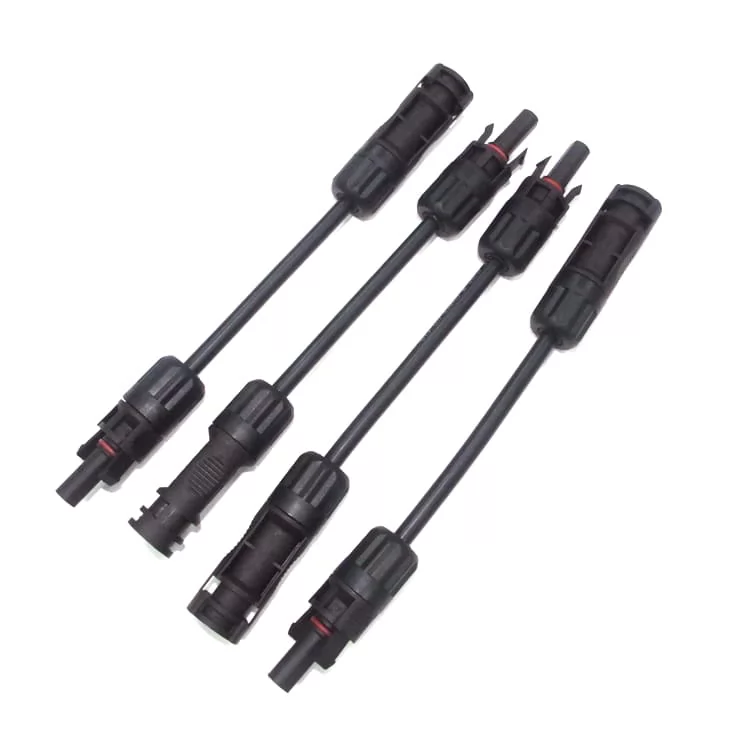

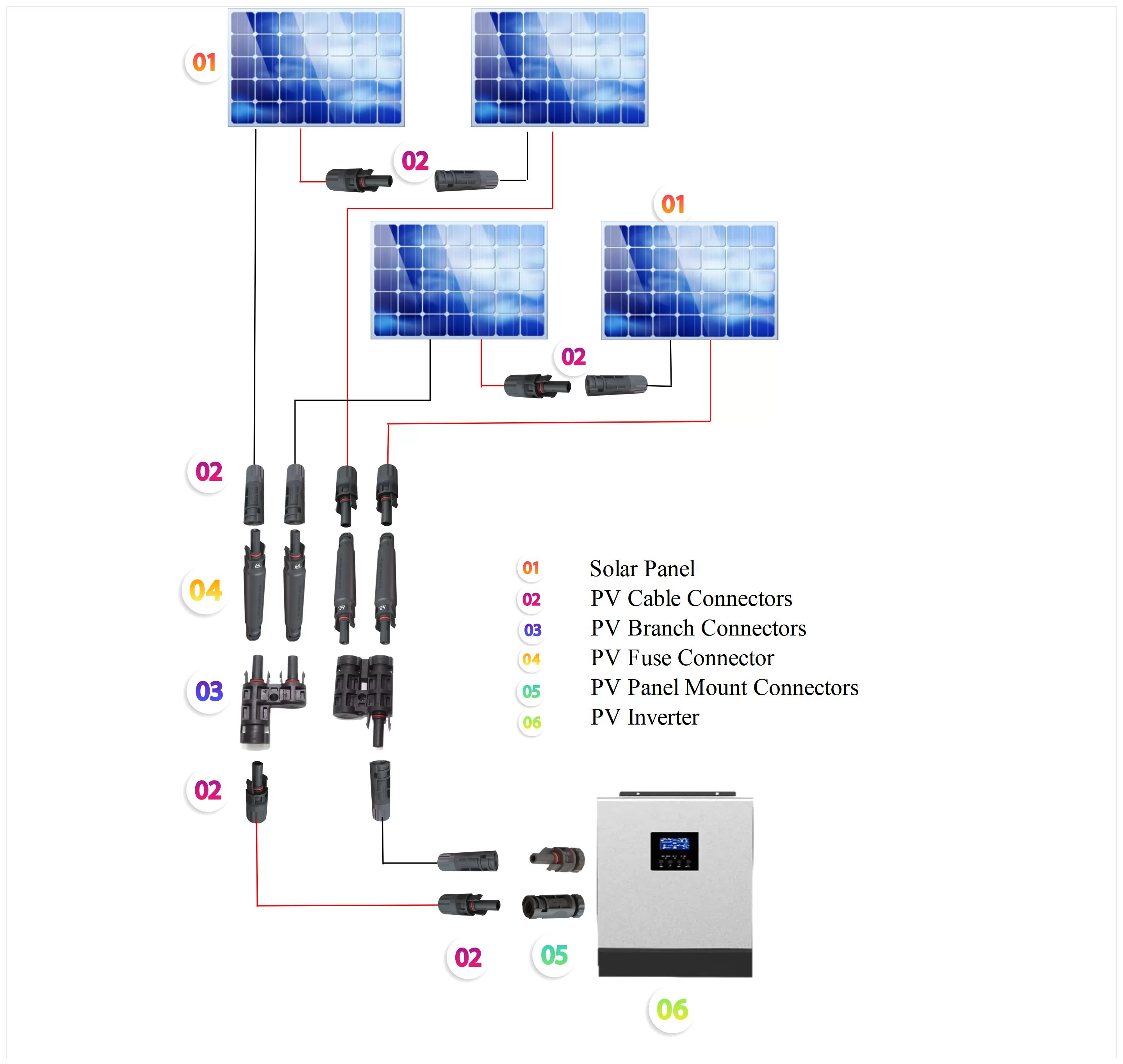

PV Solar Male Female Cable Connector

Handa HD brand HDC4 model PV solar connectors is 1500V TUV and CSA double certificated, pure red copper contact pins and higher quality.

Suitable wiring 2.5mm²(30A), 4mm²(41A)and 6mm²(55A) premium quality and can be compatible with other main models of solar connectors in the world.

Get a Quote

PV Solar Male Female Cable Connector

Technical Data

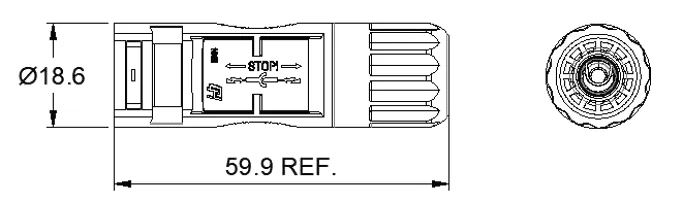

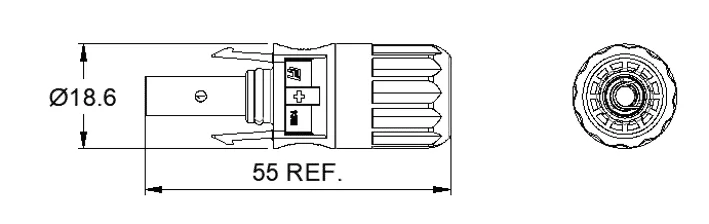

Model	HDC-41f1	HDC-41m1
Electrical
Rated Voltage	1500V DC	1500V DC
Rated Impulse Voltage	16KV	16KV
Rated Current （85℃）	30A for 2.5mm² 41A for 4mm ² 55A for 6mm ²	30A for 2.5mm² 41A for 4mm ² 55A for 6mm ²
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.25mΩ	≤0.25mΩ
Overvoltage Category/Pollution Degree	CAT III/2	CAT III/2
Safety Class	Ⅱ	Ⅱ
Mechanical
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Cable Retention Force	≥180N	≥180N
Wire Size	2.5mm²~6mm²	2.5mm²~6mm²
Outer Cable Diameter	≤6.8mm	≤6.8mm
Unlock Mode	unlock without tools unlock with tools	unlock without tools unlock with tools
Connector Retention Force	≥80N	≥80N
Connector Pull-Out Force	≤20N	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)	IP65/IP68 (1m,1H)
Application Temperature	-40℃~85℃	-40℃~ 85℃
Max. Operating Temperature	85℃	85℃
Flamming Level	UL94-V0	UL94-V0
Ammonia Resistance	Pass	Pass
Material
Plastic Material	PA(f1)	PA(f1)
Pin Material	Copper Alloy, Sn Plating	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber

Certification/Certificate

TUV Certification

Logo	Certification	Reference Standard	Certification No.
	TÜV Rheinland	IEC62852	R50506030

Installation Tool

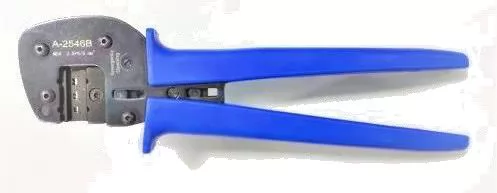

	Rivet Plier

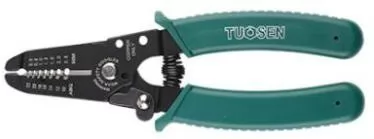

	Wire Stripper

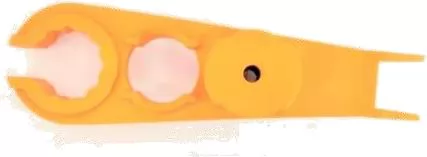

	Wrench

Installation Instructions

Dimension of stripping wire

Installation Instructions

Installation Steps

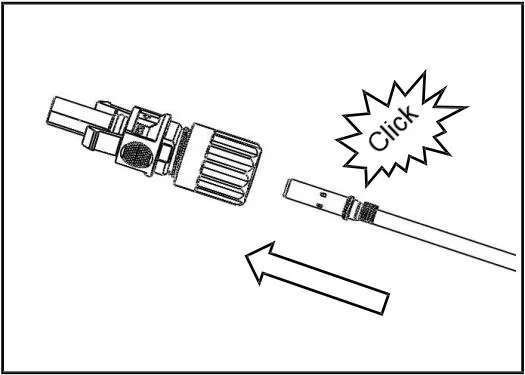

Crimping the stripped wire to the terminal, then insert it into the cable end positive connector while hearing the "Click" sound.

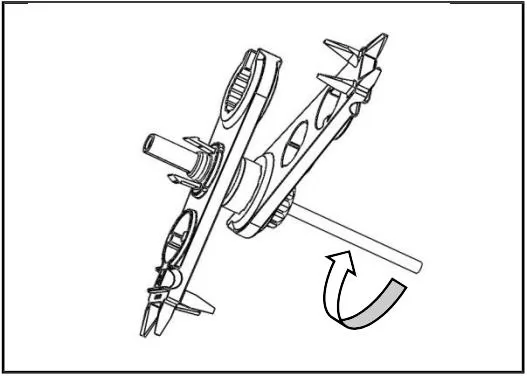

Clockwise tighten the nut through the wrench with torque 2±0.1N.m.

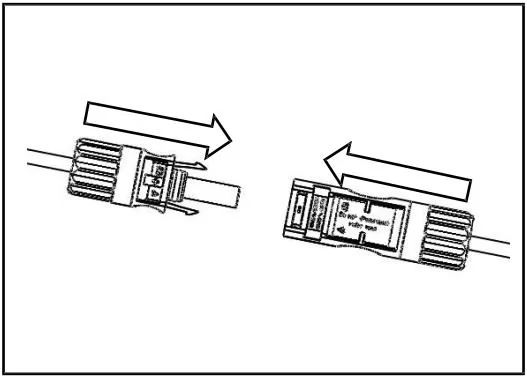

Positive and Negative butt

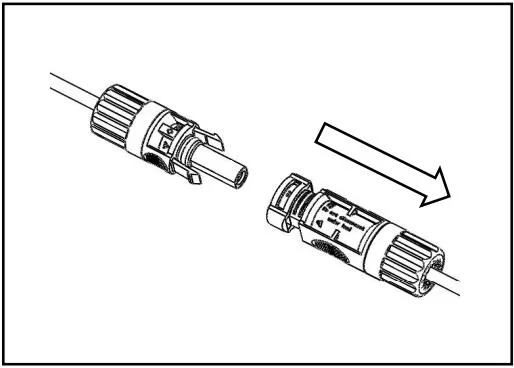

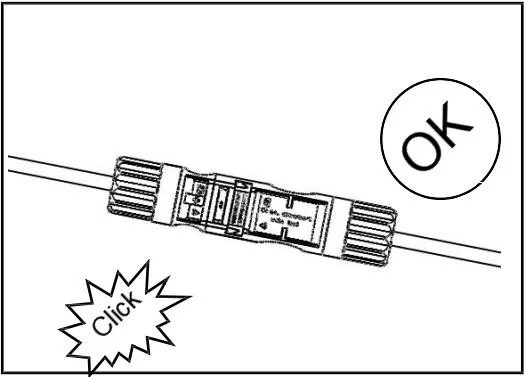

Cable end positive connector and cable end negative connector butt.

Complete the installation while hearing "Click" sound

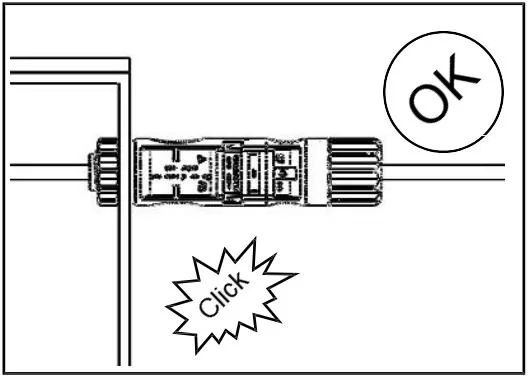

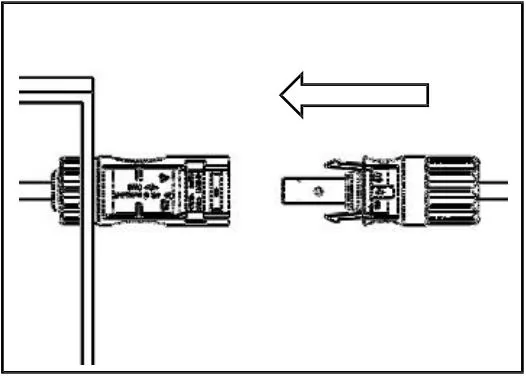

Insert cable end positive connector into panel mount positive connector.

Complete the installation while hearing "Click" sound.

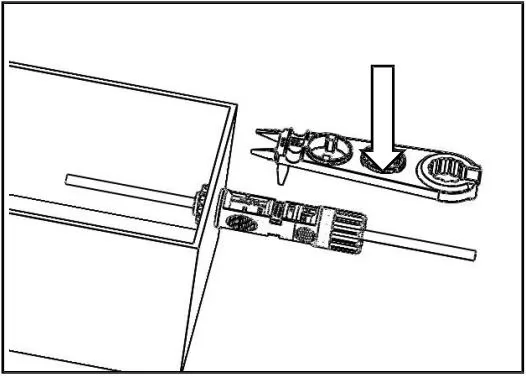

Unlock Instruction

Please use the dedicated unlock wrench as shown

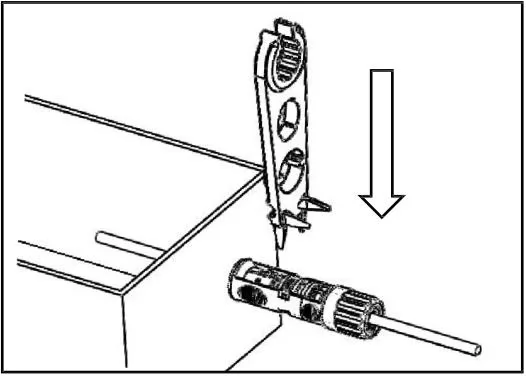

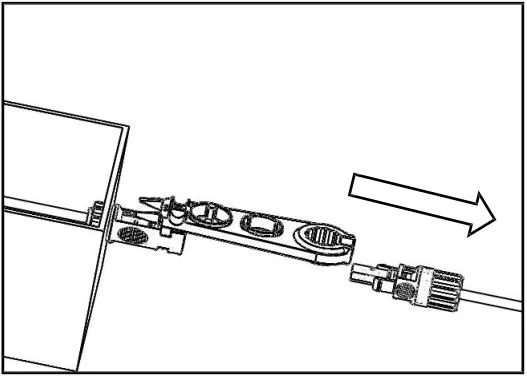

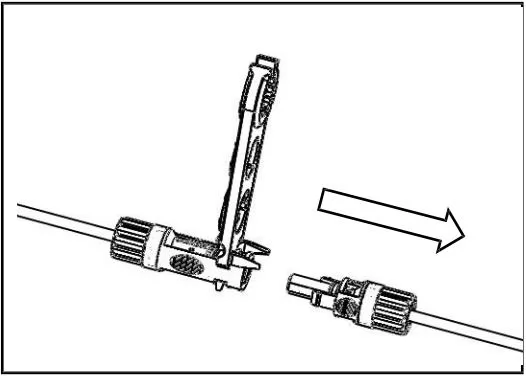

Insert the wrench pawl into the slot position of the connector rubber core.

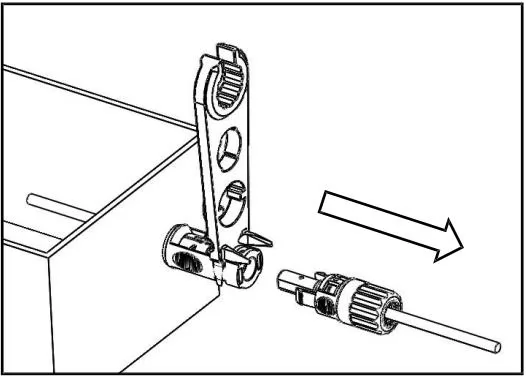

Push the slot part to separate it with the wrench, then pull out the connector.

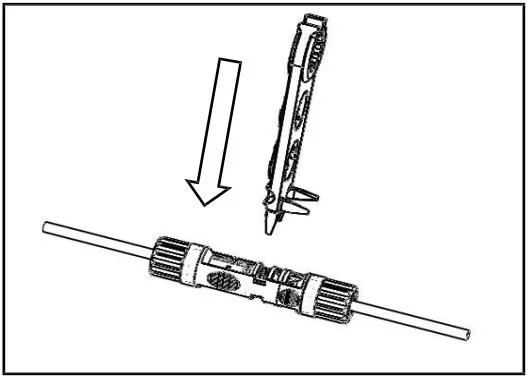

Insert the wrench pawl into the slot position of the connector rubber core.

Push the slot part to separate it with the wrench, then pull out the connector.

Insert the wrench pawl into the slot position of the connector rubber core.

Push the slot part to separate it with the wrench, then pull out the connector.

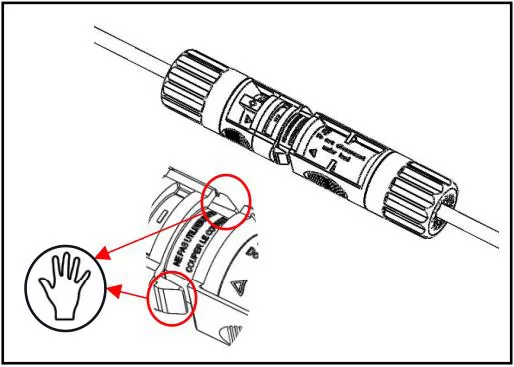

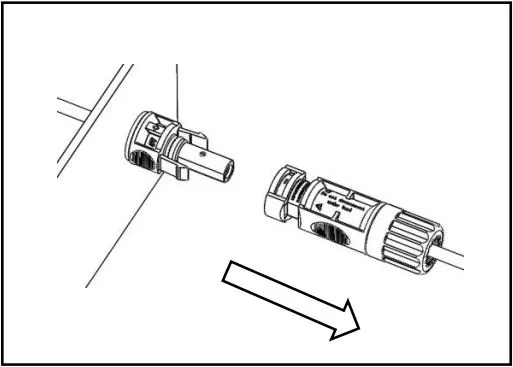

Non-tool Unlock Instruction

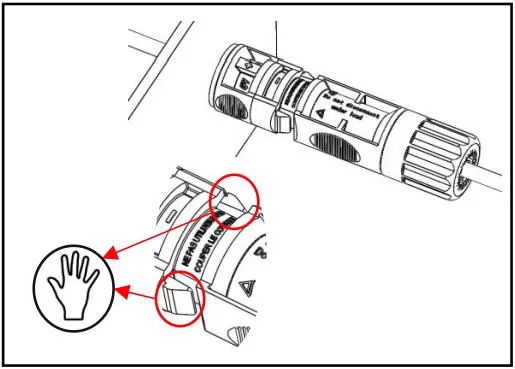

Hold and press the wings of the cable end negative connector.

Then pull out the connector.

Hold and press the wings of the cable end negative connector.

Then pull out the connector.
