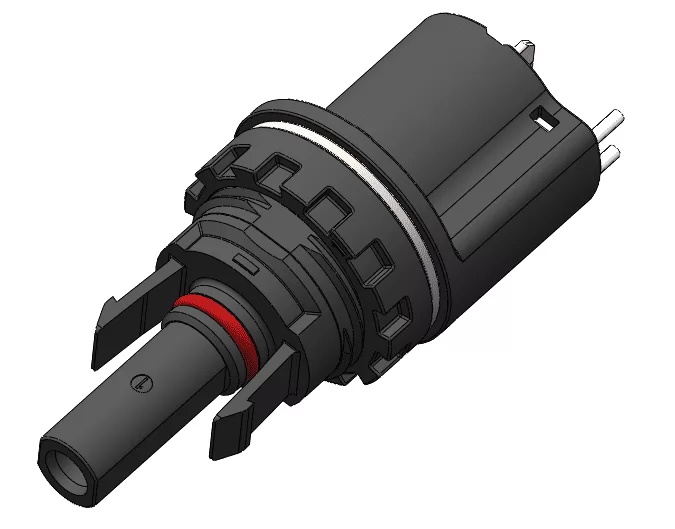

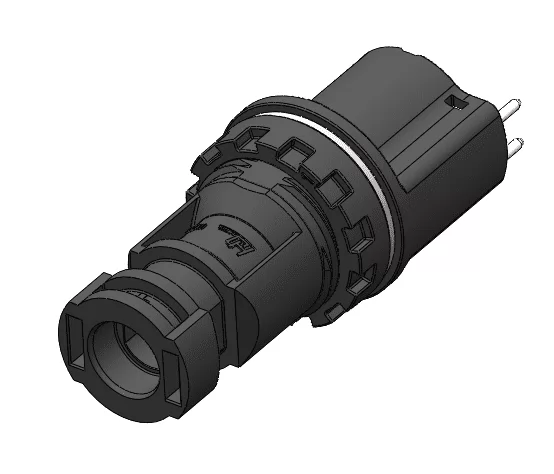

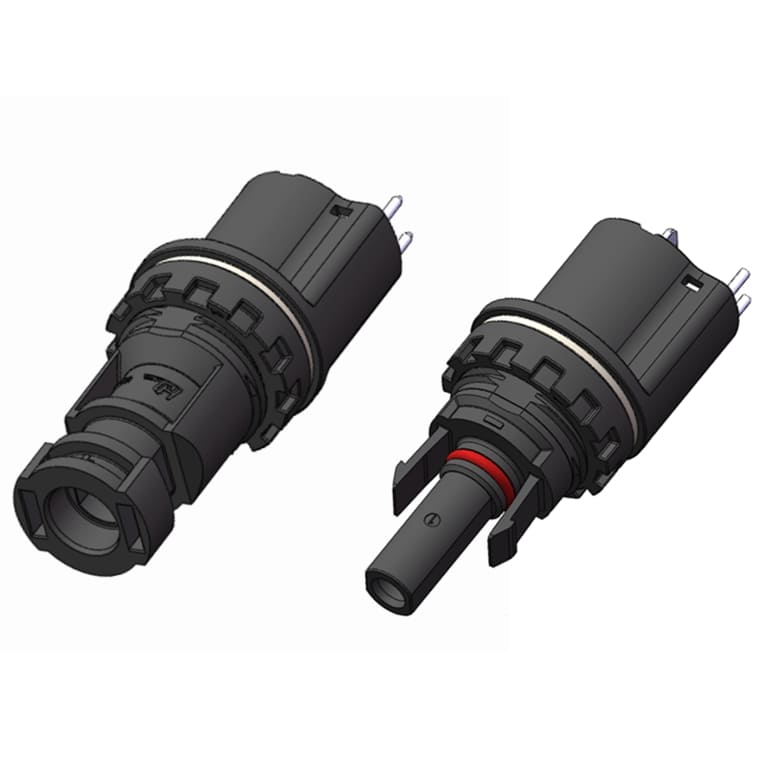

PV Panel On-Board Conenctor +NTC

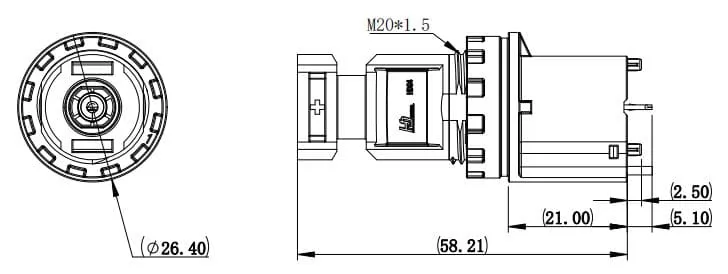

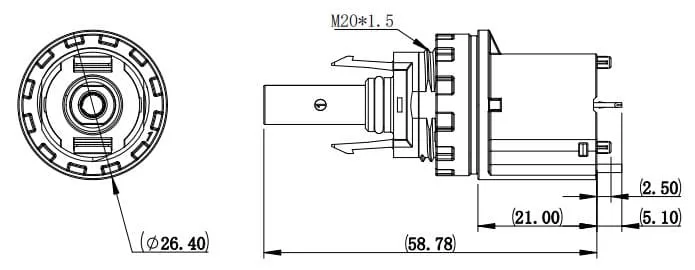

Handa HD PV Panel On-Board Conenctor +NTC is the newest upgrade version of Handa HD HDC4 panel mount PV Solar connectors,updated the size from M12 to M20, nut rear locking to easier front locking and making the copper pins' crimping type to advanced pins panel soldering on-board,the pins is all-in-one style without any breakpoint(Reduce the risk of burning caused by poor contact). what's more, it within NTC function integrated, make sure faster temperature monitoring to better protect your solar system.

Get a Quote
PV Panel On-Board Conenctor +NTC

Technical Data

Model HDC-41f2L HDC-41m2L
Electrical
Rated Voltage 1500V DC 1500V DC
Rated Impulse Voltage 16KV 16KV
Rated Current 55A 55A
Wet Insulation Resistance ≥500MΩ ≥500MΩ
Contact Resistance ≤0.3mΩ ≤0.3mΩ
Mechanical
Mating Cycle ≥500 ≥500
PIN Retention Force ≥80N ≥80N
Unlock Mode unlock without tools
unlock with tools
unlock without tools
unlock with tools
Connector Retention Force ≥80N ≥80N
Connector Pull-Out Force ≤20N ≤20N
Enviromental
Waterproof Rate IP65/IP68 (1m,1H) IP65/IP68 (1m,1H)
Application Temperature -40°C∼+85°C -40°C∼+85°C
Flamming Level UL94-V0 UL94-V0
Material
Plastic Material PA(f1) PA(f1)
Pin Material Copper Alloy, Sn Plating Copper Alloy, Sn Plating
Sealing Material Sillicone Rubber Sillicone Rubber
