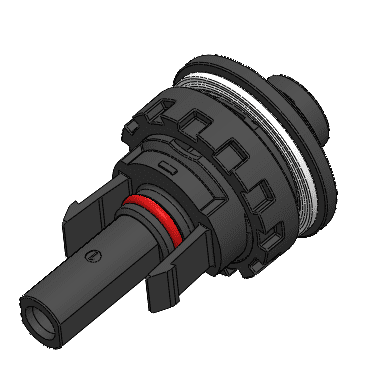

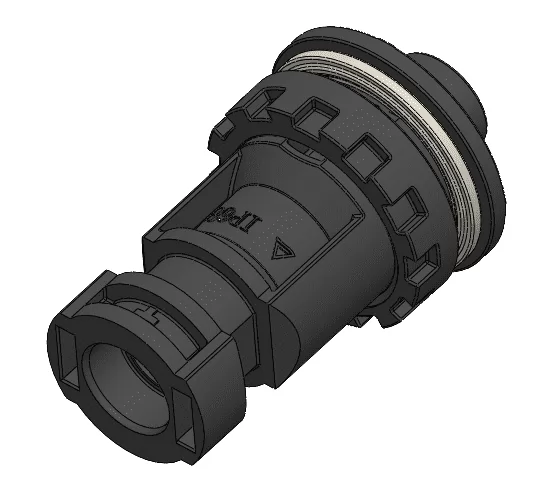

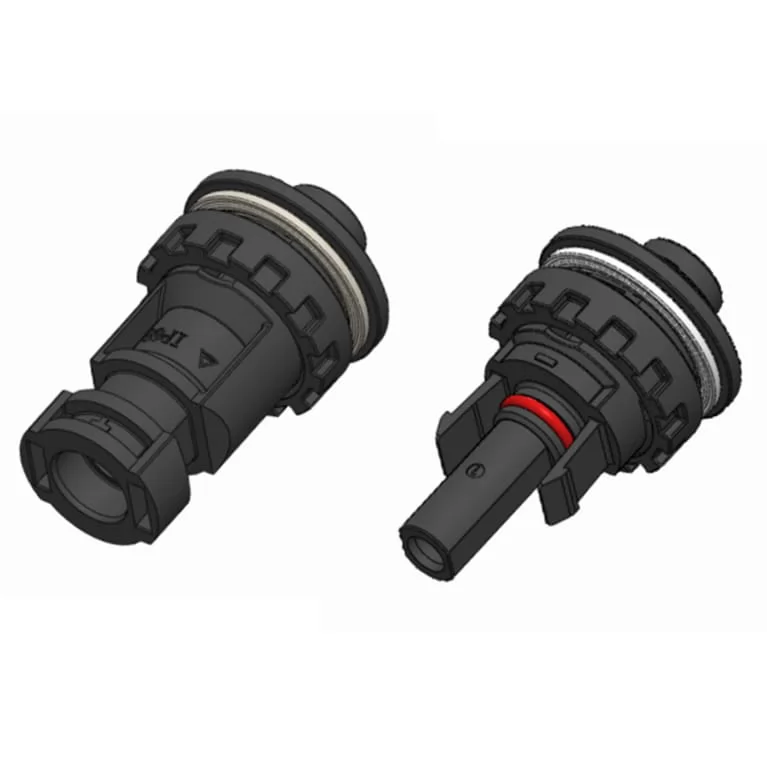

PV Panel Mount Positive Negative Connector

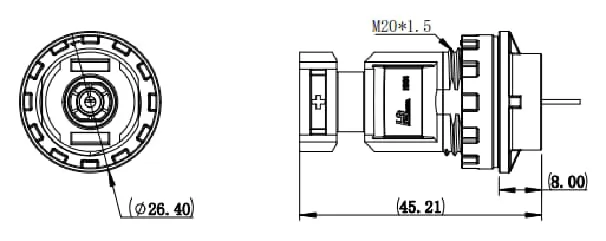

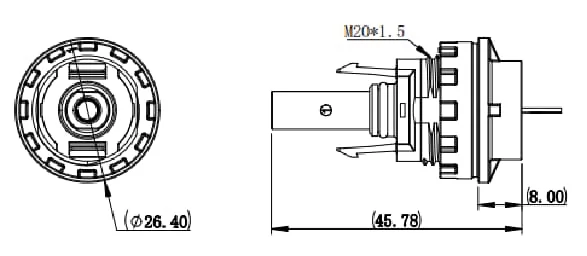

Handa HD PV Panel Mount Positive Negative Connector is the 2nd upgrade version of Handa HD HDC4 panel mount PV Solar connectors, updated the size from M12 to M20 and mounted nut from rear mounting to easier front screw for more convenient on-site installation.

Get a Quote

Technical Data

Model	HDC-41f2S	HDC-41m2S
Electrical
Rated Voltage	1500V DC	1500V DC
Rated Impulse Voltage	16KV	16KV
Rated Current	55A	55A
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.3mΩ	≤0.3mΩ
Mechanical
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Unlock Mode	Non-tool unlock	Non-tool unlock
Connector Retention Force	≥80N	≥80N
Connector Pull-Out Force	≤20N	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)	IP65/IP68 (1m,1H)
Application Temperature	-40°C∼+85°C	-40°C∼+85°C
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PA(f1)	PA(f1)
Pin Material	Copper Alloy, Sn Plating	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
