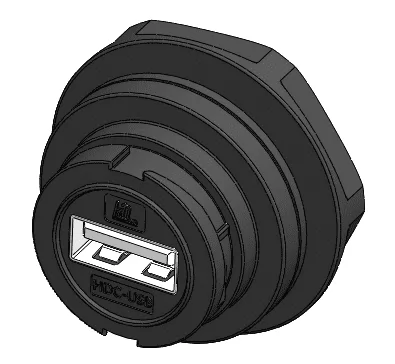

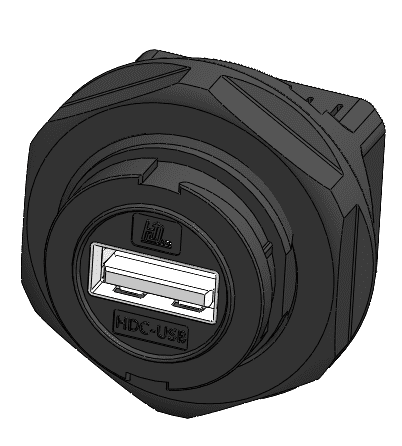

M25 USB 2.0 Connector

Handa HD brand USB 2.0 Network Connector are applicable to data transmission with quickly plug, fast transfer rate and strongly extensibility for Inverter, battery COM port. IP68 higher waterproof protection level, and socket side 4pin cables can be customized based on specific requirements. what's more the 4pins cable is quick plug-in type, separately 2 parts from Panel USB connectors (while other suppliers soldering the cables into the connectors), HD USB connectors is easily to replace the cable without unlocking the USB connector itself. Solid connections system also can provide the solutions for data transmission in harsh environments

Get a Quote
M25 USB 2.0 Connector

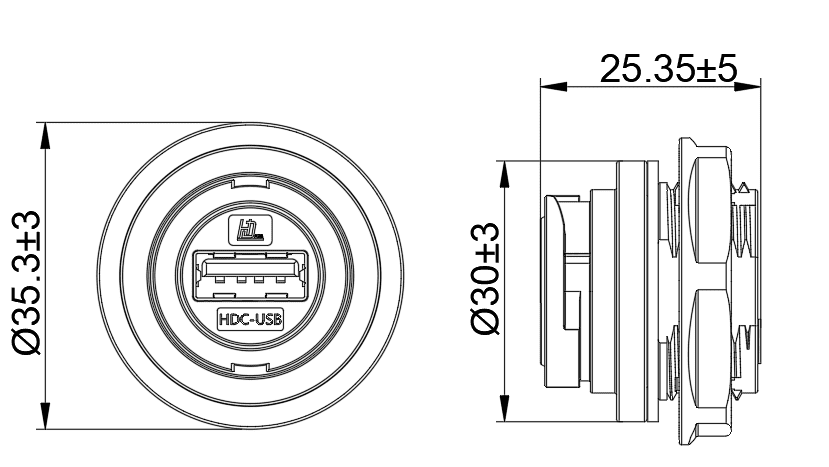

Technical Data

Model HDB-USB
Electrical
Rated Voltage30V DC
Rated Impulse Voltage 100V AC
Rated Current1.5A
Wet Insulation Resistance
≥100MΩ,@500V DC
Contact Resistance          ≤2mΩ
Mechanical
Mating Force
35N max;
Unmating Force
5~35N;
Operating LIFF
500 Cycles MIN;
Enviromental
Waterproof Rate IP68 (1m ,1H)
Application Temperature -20℃~ 70℃
Flamming Level UL94-V0
Material
Plastic Material
PA(f1),BK
Pin Material
NI plating over all;
Tin plating over solder area;
Au plating over contact area;
Sealing Material Sillicone Rubber
