HD 65A 3PIN AC Connectors in GOODWE Solar Single Phase On-grid Inverter 7/8/10KW

Case Year: 2023

Related Products:

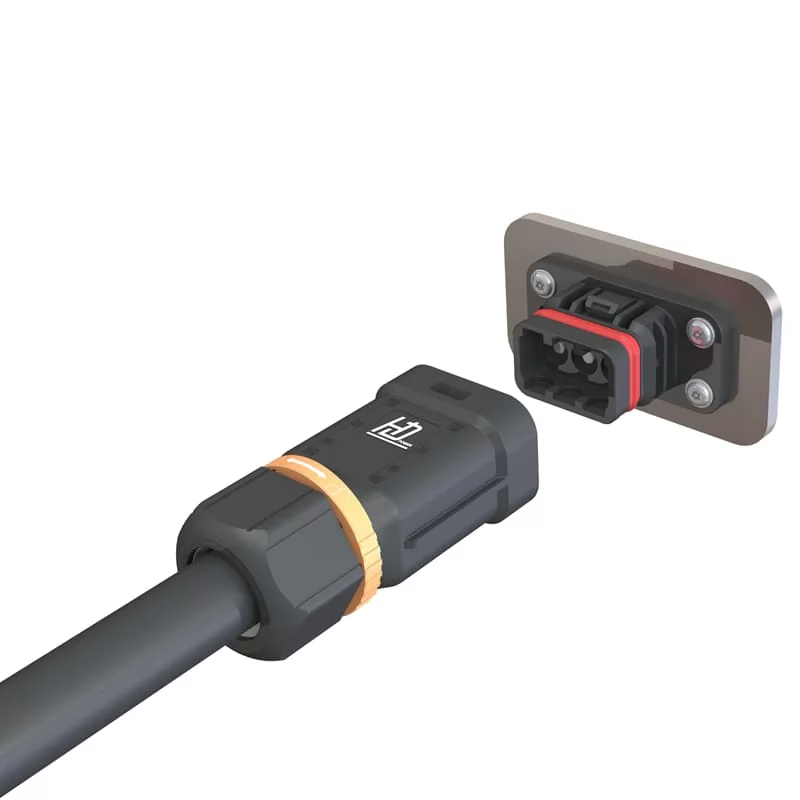

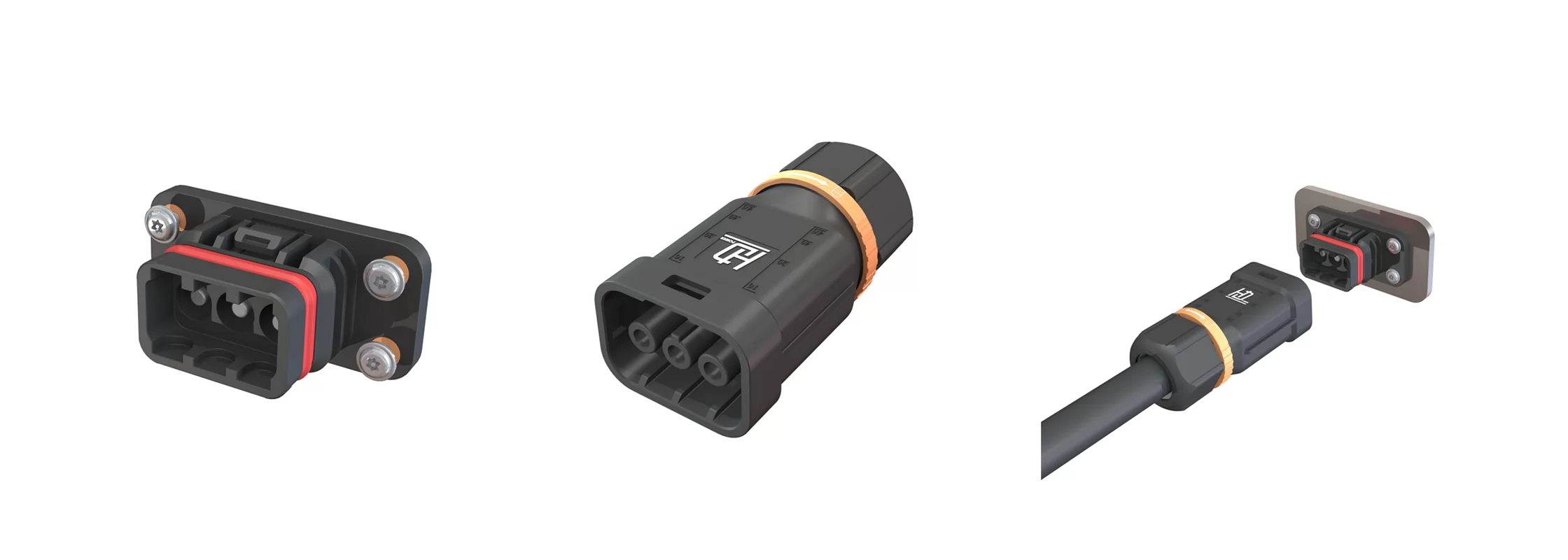

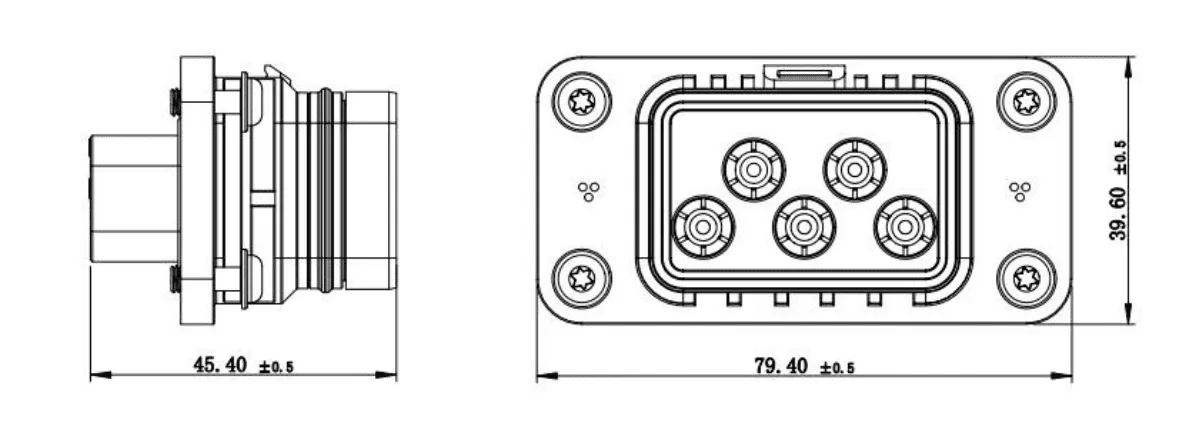

          65A 3PIN AC Panel Male Connector

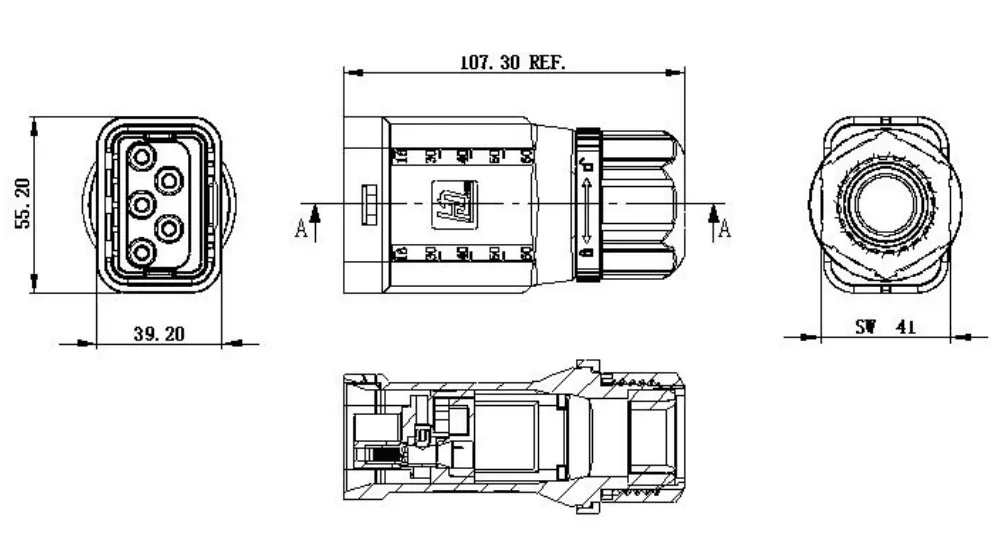

          65A 3PIN AC Cable Female Connector

Solar AC 65A 3 Pin On-grid Connector

Rated Voltagee（III/2)	1000V AC
Rated Impulse Voltage （III/2)	8KV
Rated Current	65A
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Rated Electrical Parameter	(III / 2) Overvoltage Category III / Pollution Degree 2

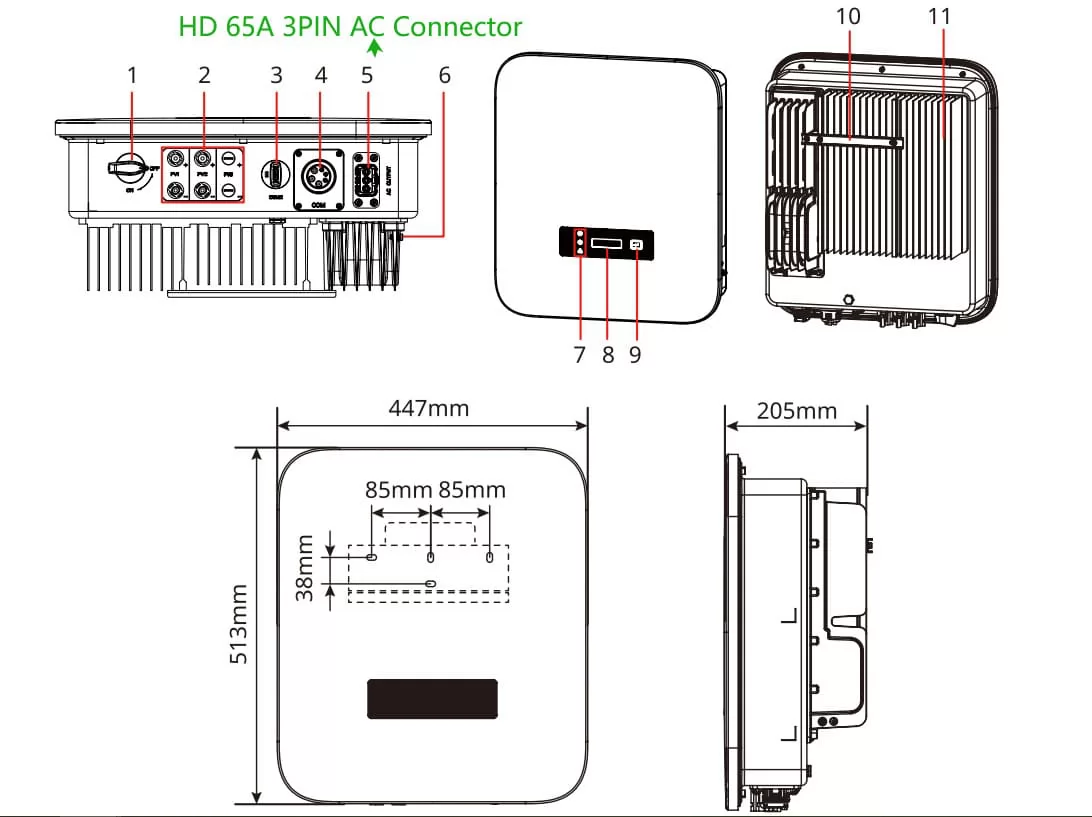

In the year 2023, GOODWE MS G3 series single phase on-grid inverter 8-10KW 2MPPT applied Handa Power HD brand 65A 3PIN AC connectors: panel male connectors and cable female connector for its AC port.

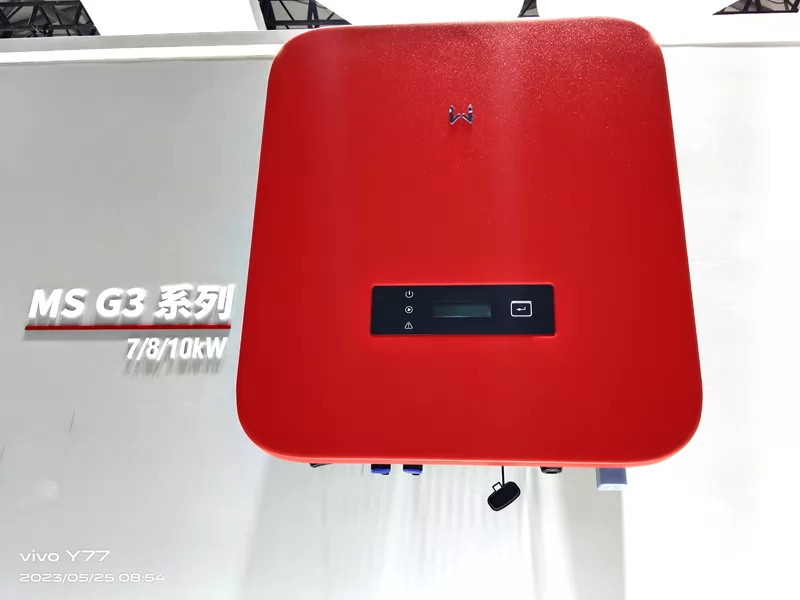

GOODWE MS G3 series adopts a new generation of appearance design and a new topology structure, fully meeting the market demand for high-power single-phase household models, and is suitable for houses with large roof areas. While ensuring revenue, it can significantly reduce the system cost and operation and maintenance cost investment that originally required multiple small-power single-phase inverters. This series includes three power segments of 7/8/10kW, with a maximum input current of 20A, adapting to various high-power components on the market, with a maximum DC over-capacity of 1.55 times, supporting DC arc protection, AC/DC surge protection (DC side lightning protection alarm), and integrating more safety protection functions, comprehensive software and hardware protection, and enjoying smart and safe electricity use.
