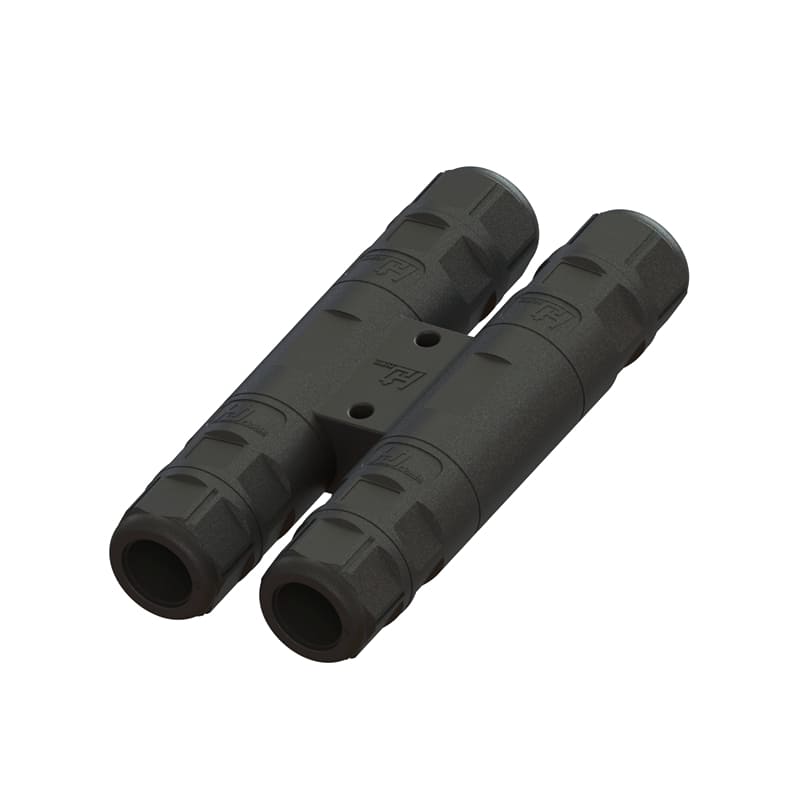

H4 Wiring M20 Branch Connector

Handa HD brand Solar AC series H3 Type Wiring M20 Branch Connector is suitable for solar industry and LED, Light system,Two AC input port and two AC output port for the lights system, 2/3/4/5pins both available for different applications.

Get a Quote

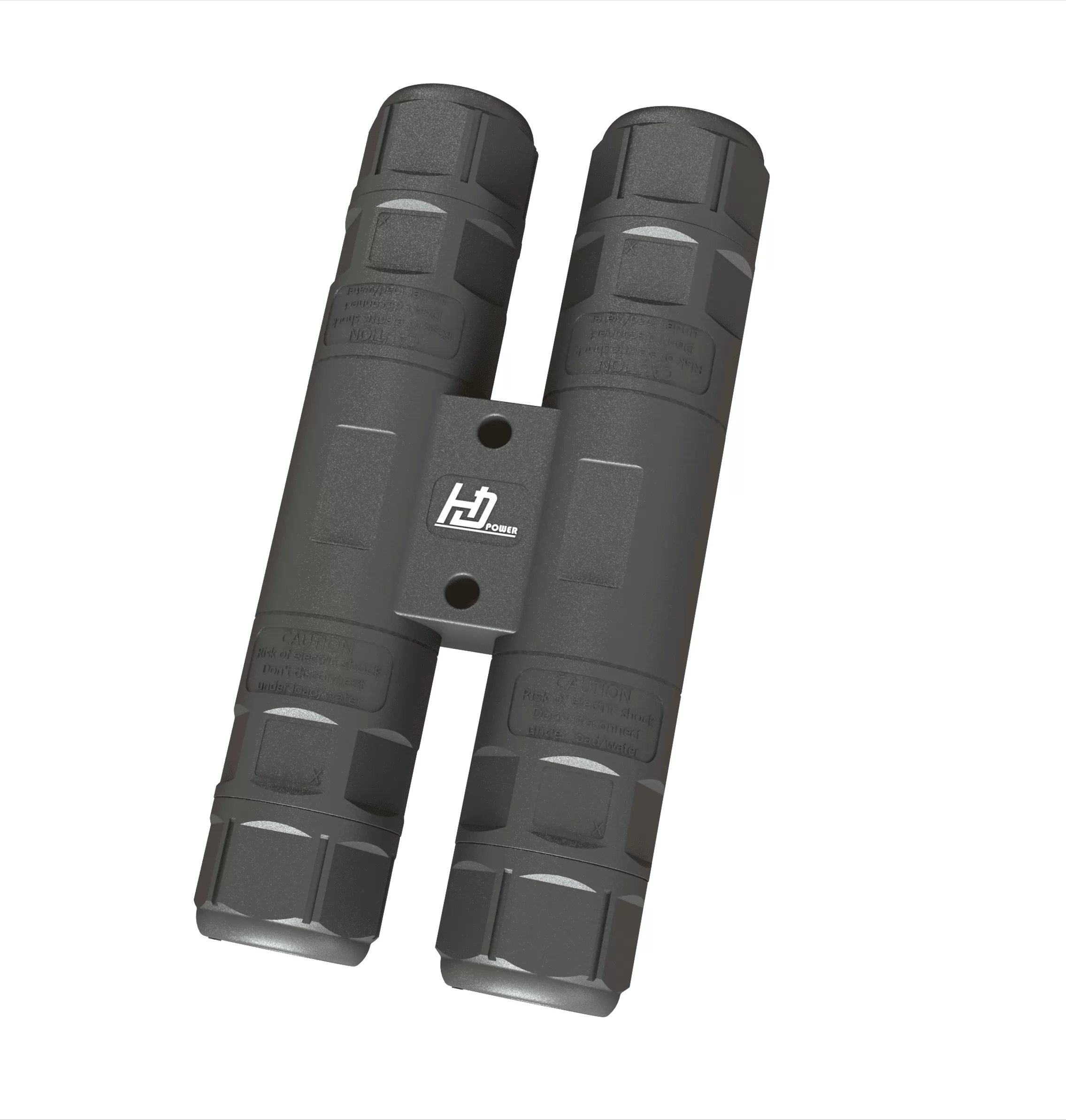

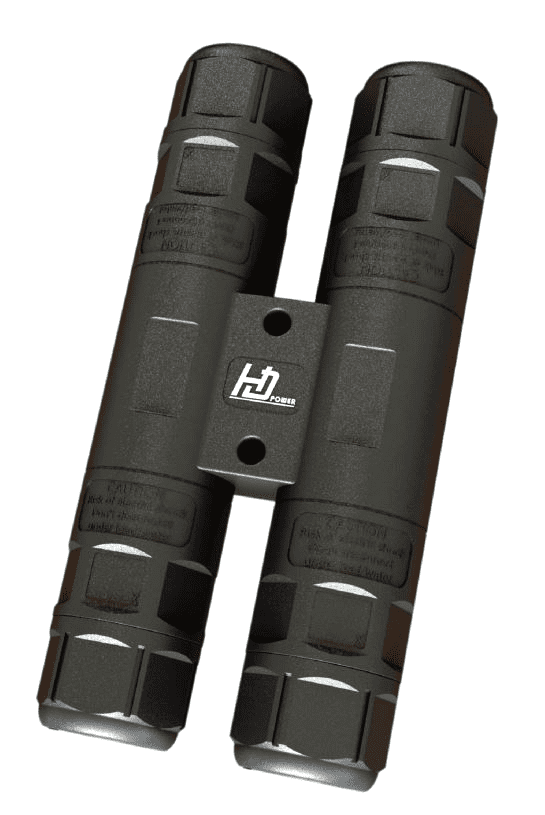

H4 Wiring M20 Branch Connector

Technical Data

ModelHDD-2H01/HDD-3H01/HDD-4H01
Electrical
Rated Voltage300V AC
Rated Impulse Voltage2500V AC
Rated Current 32A
Wet Insulation Resistance ≥500MΩ
Contact Resistance ≤5mΩ
Mechanical
Mating Cycle/
PIN Retention Force /
Wire Size ≤13mm
Wire Size ≤4 mm² (12Awg)
Unlock Mode Non- tool unlock
Connector Retention Force ≥80N
Connector Pull-Out Force ≤20N
Enviromental
Waterproof RateIP68(1m,1H)
Application Temperature -40℃~ 85℃
Flamming Level UL94-V0
Material
Plastic Material PA
Pin Material Copper Alloy, Sn Plating
Sealing Material Sillicone Rubber
Screw Material Fe, Zinc nickel alloy Plating
