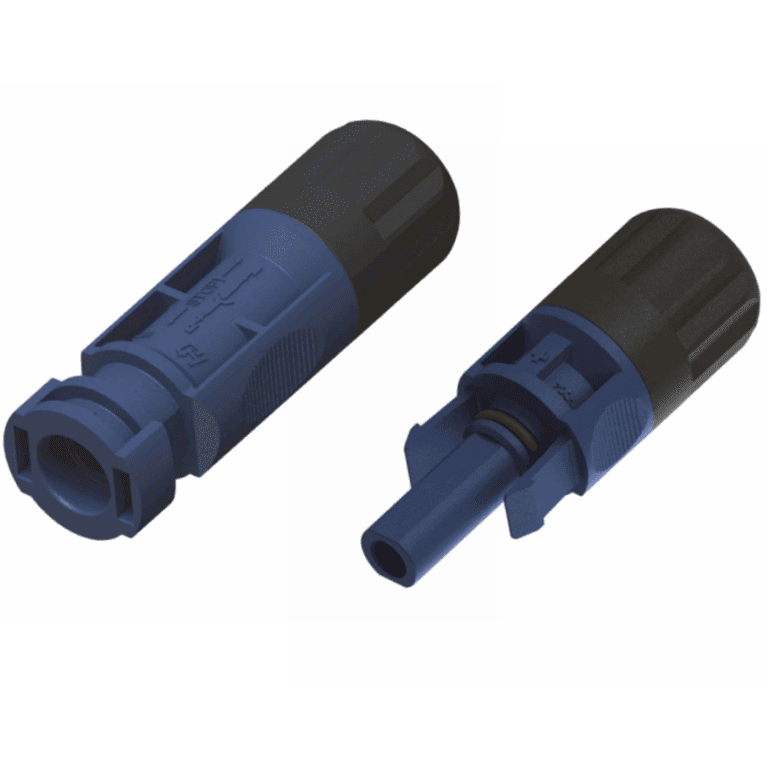

Energy Storge Male Female Cable Connector

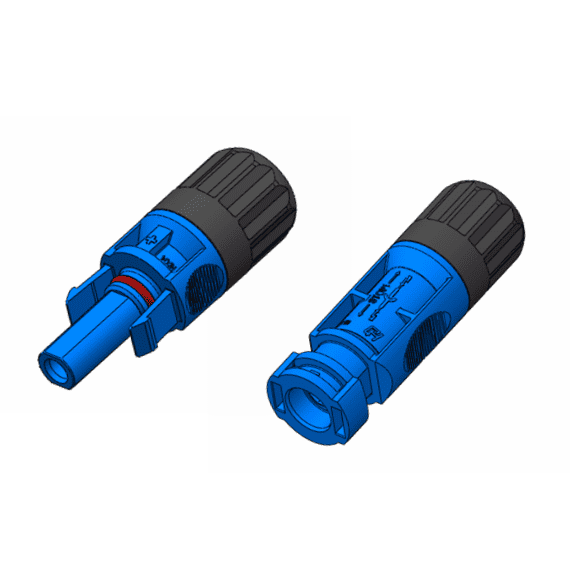

Handa HD brand ES Cable Connectors for battery energy storage system, connecting inverter ES port to the energy storage battery parts, suitable for solar hybird inverters and energy storage inverters.

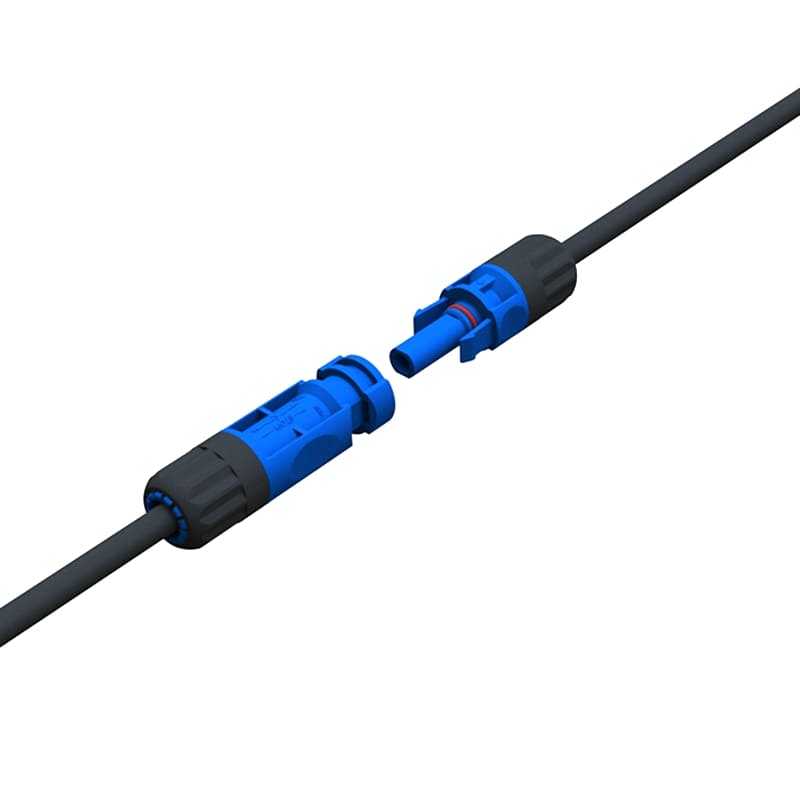

its size is the same as HD PV solars connectors, but with different color for the fool-proofing design, and it's 90 ° degree twisted mating face does not allow for mismatching with PV solar DC connector.

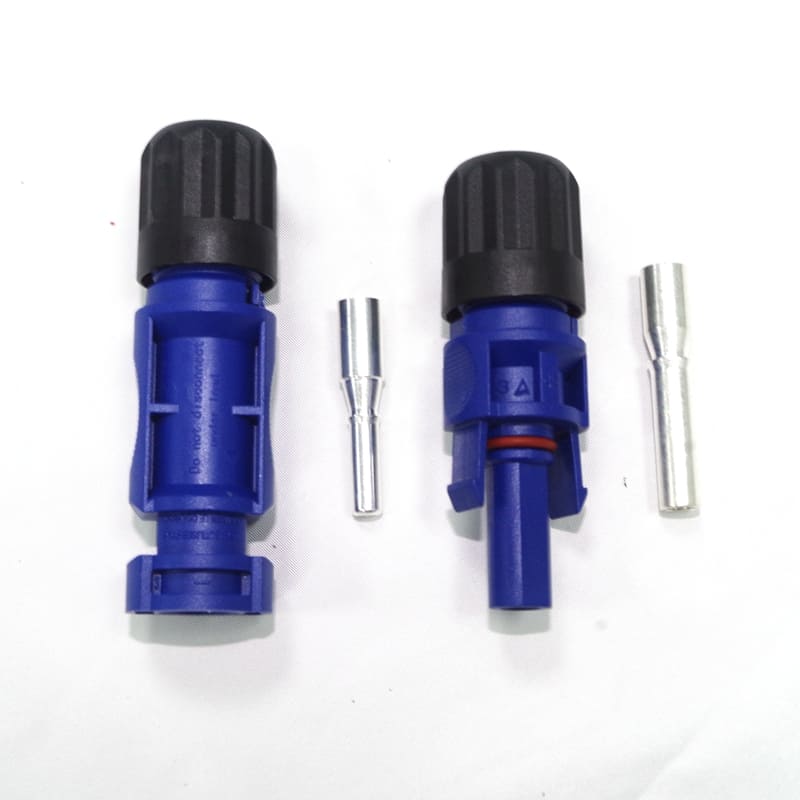

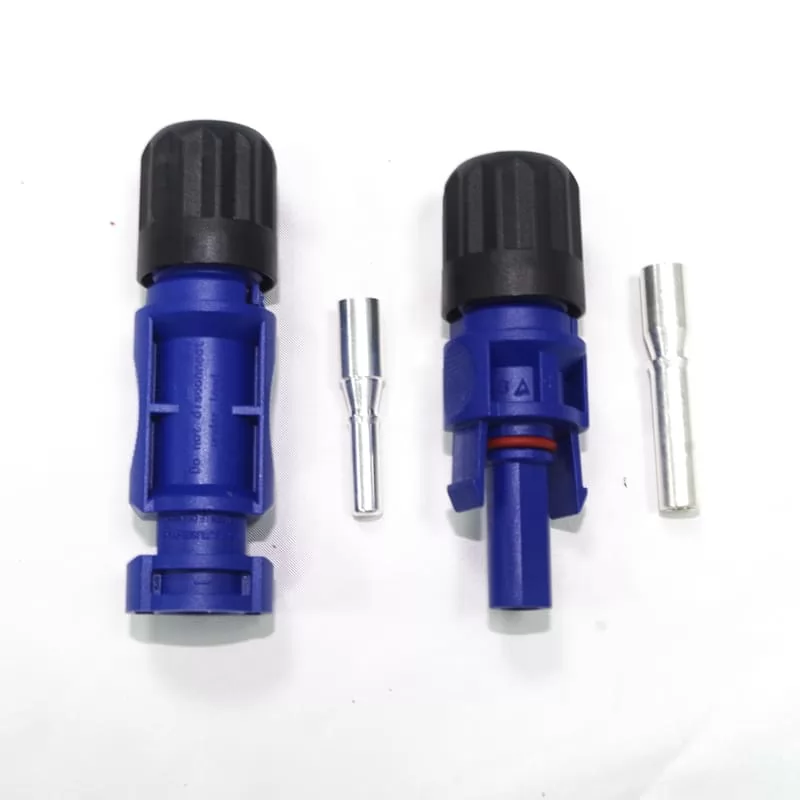

This Energy storage connectors not only have both cable male and female connectors, but also has panel mount male and female connectors total 4 pieces as a completely set.

Get a Quote

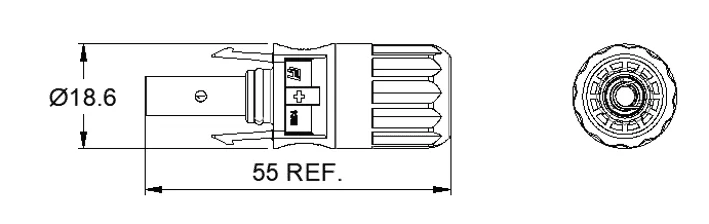

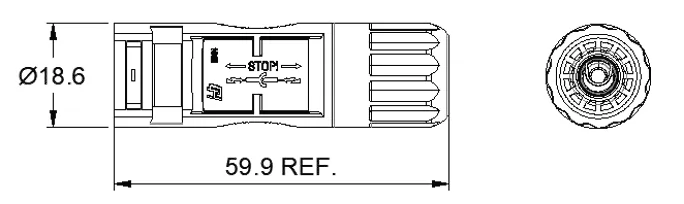

Technical Data

Model	HDC-70f1	HDC-70m1
Electrical
Rated Voltage	1000V DC	1000V DC
Rated Impulse Voltage	12KV	12KV
Rated Current (85℃)	70A for 10mm² 55A for 6mm² 41A for 4mm²	70A for 10mm² 55A for 6mm² 41A for 4mm²
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.5mΩ	≤0.5mΩ
Mechanical
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Cable Retention Force	≥180N	≥180N
Wire Size	10mm²（OD MAX 7.25mm）	10mm²（OD MAX 7.25mm）

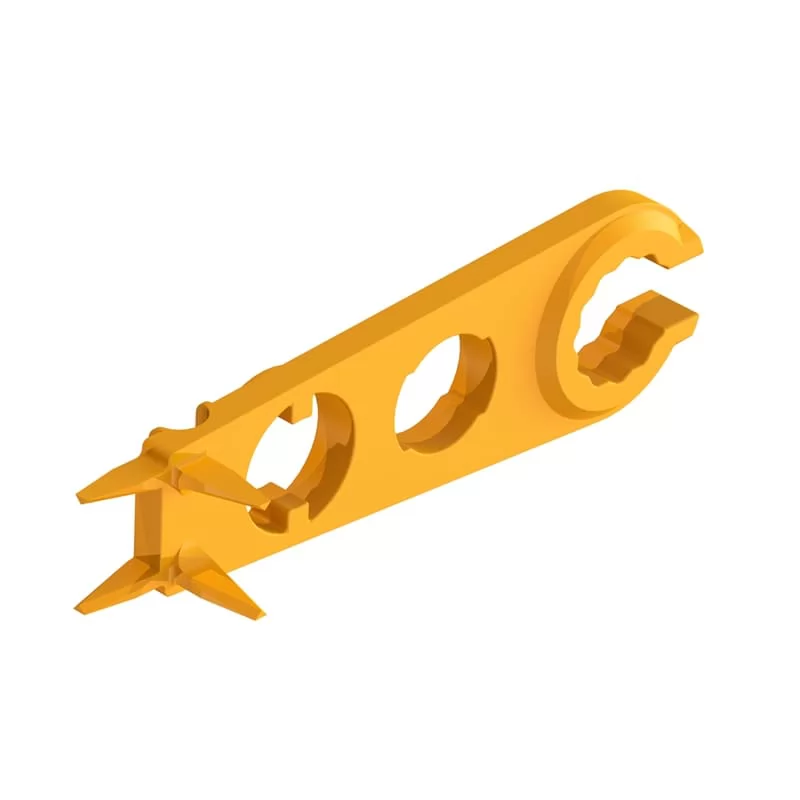

Unlock Mode	unlock without tools	unlock without tools
Connector Retention Force	≥80N	≥80N
Connector Pull-Out Force	≤20N	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)	IP65/IP68 (1m,1H)
Application Temperature	-40℃~ 85℃	-40℃~ 85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PA(f1)	PA(f1)
Pin Material	Copper Alloy, Sn Plating	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
