Energy Storage Panel Mount On-Board Connector

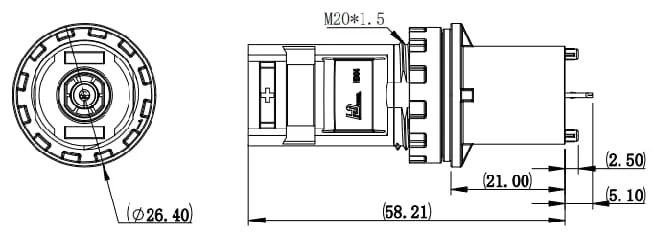

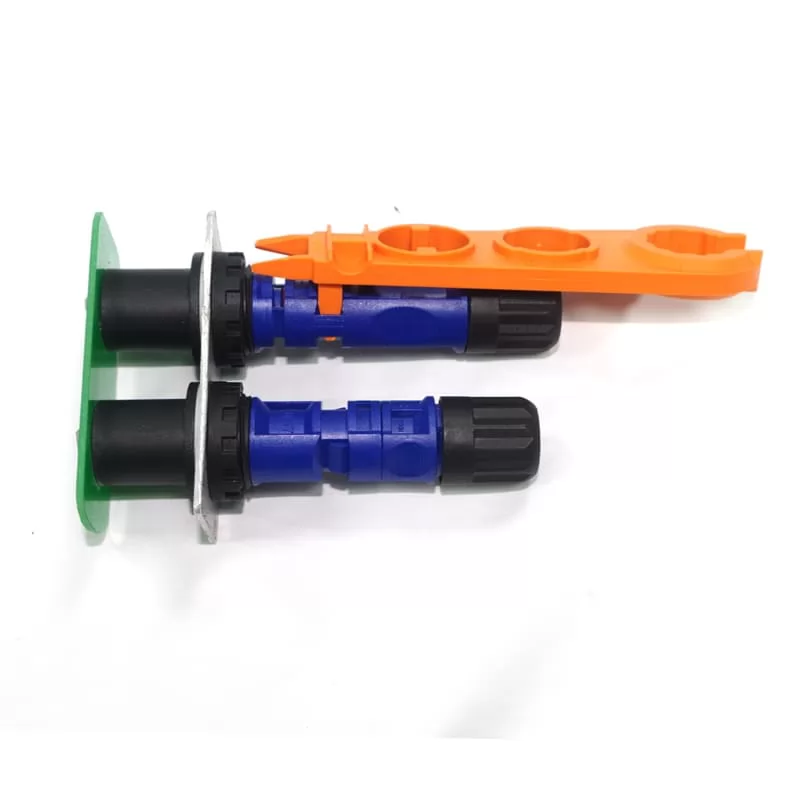

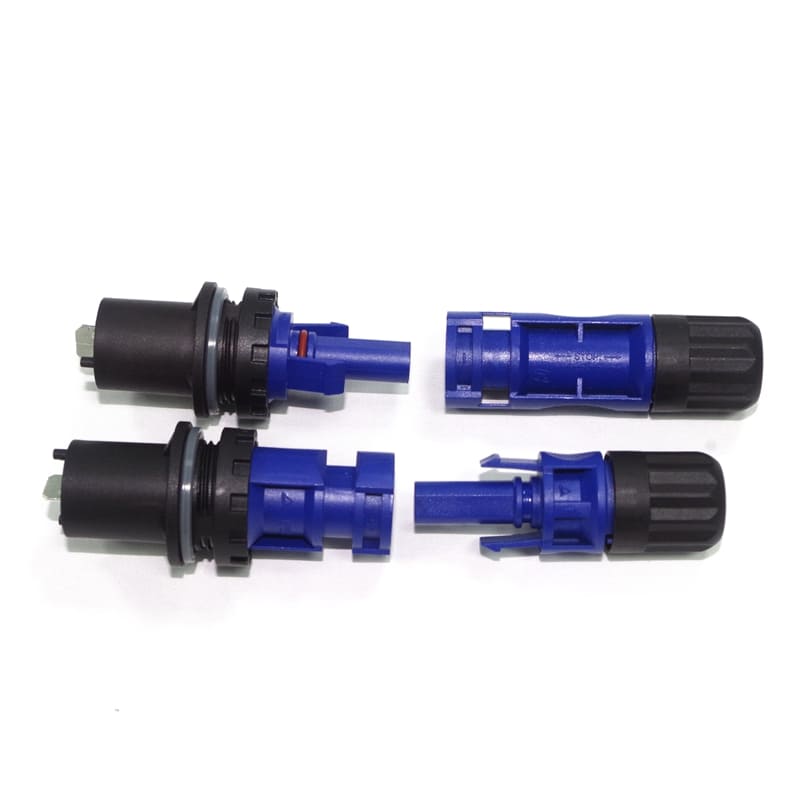

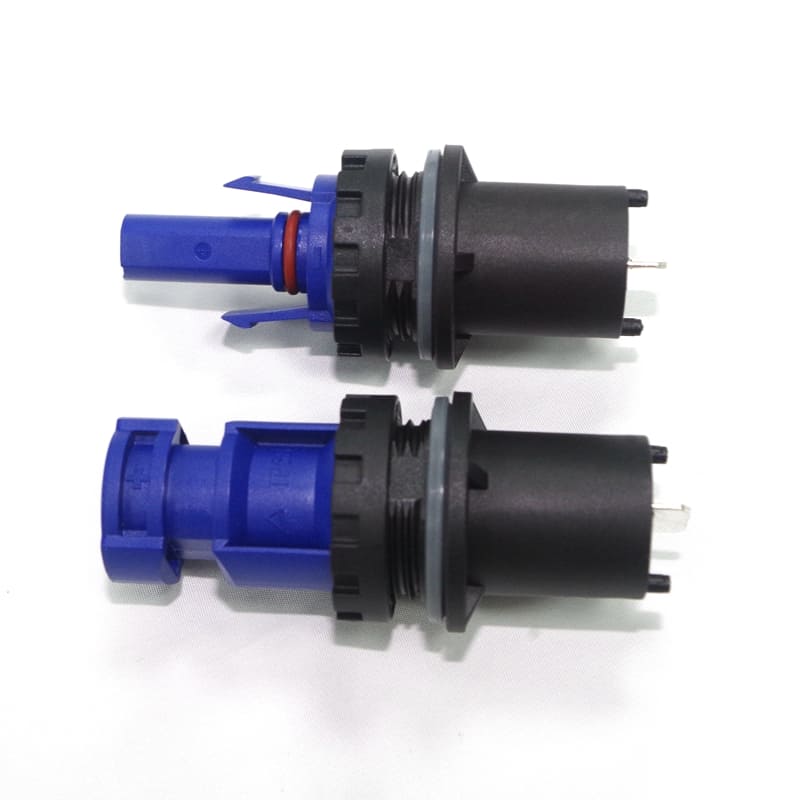

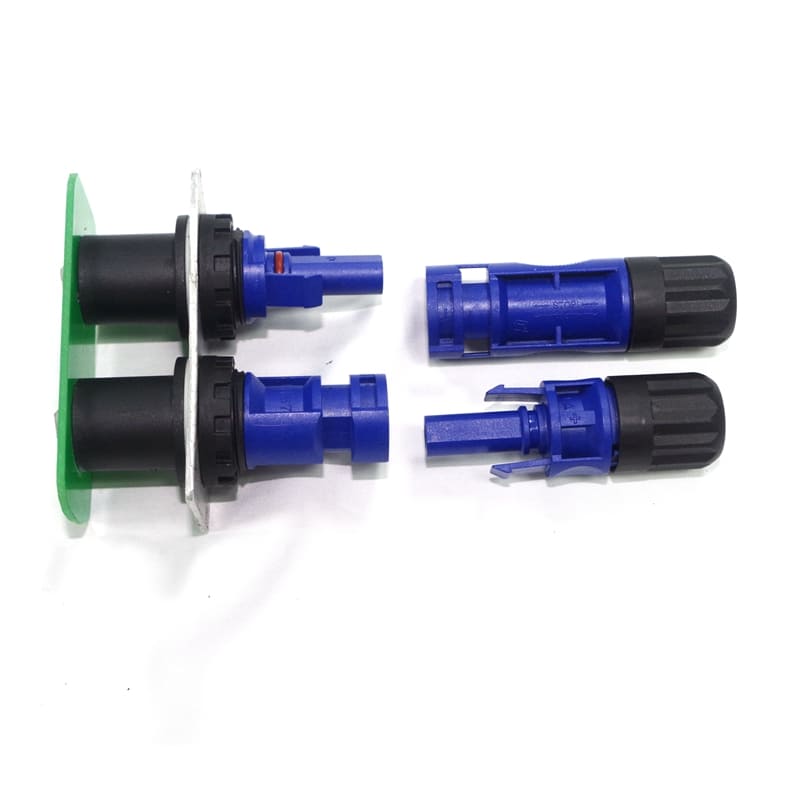

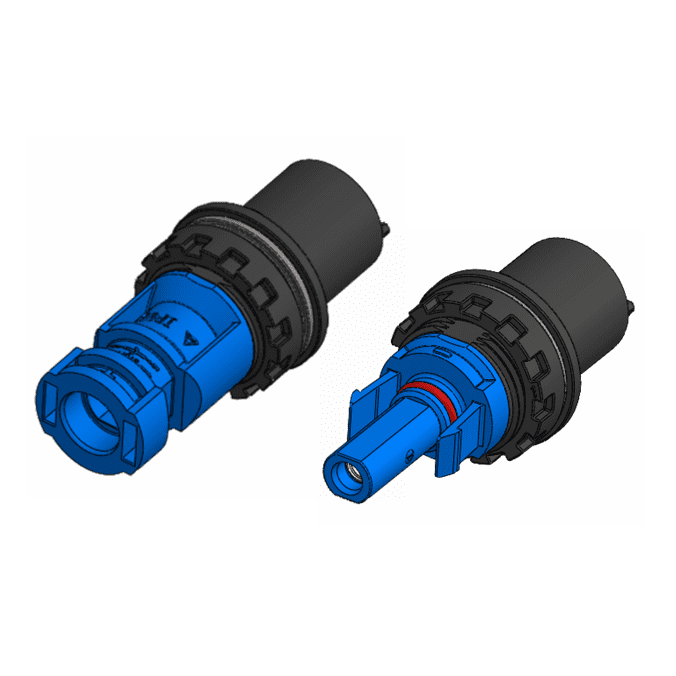

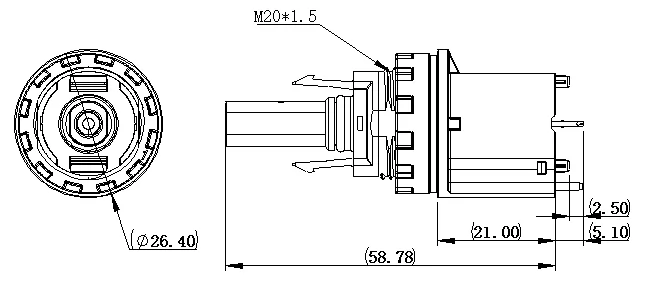

Handa HD brand Energy Storage Panel Mount On-Board Connector is the 2nd upgrade version of Handa HD ES Panel Mount Connectors ,updated the size from M12 to M20, the pins is all-in-one style without any breakpoint(Reduce the risk of burning caused by poor contact). Pins soldering directly on the PCB inside of the inverters, saving the inverter inner space without wiring inside.

Get a Quote

Technical Data

Model	HDC-41f2LE	HDC-41m2LE
Electrical
Rated Voltage	1000V DC	1000V DC
Rated Impulse Voltage	12KV	12KV
Rated Current (85℃)	55A	55A
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.3mΩ	≤0.3mΩ
Mechanical
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Unlock Mode	unlock without tools unlock with tools	unlock without tools unlock with tools
Connector Retention Force	≥80N	≥80N
Connector Pull-Out Force	≤20N	≤20N
Enviromental
Waterproof Rate	IP65/IP68 (1m,1H)	IP65/IP68 (1m,1H)
Application Temperature	-40℃~ 85℃	-40℃~ 85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PA(f1)	PA(f1)
Pin Material	Copper Alloy, Sn Plating	Copper Alloy, Sn Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
