Energy Storage Connector Manufacturer

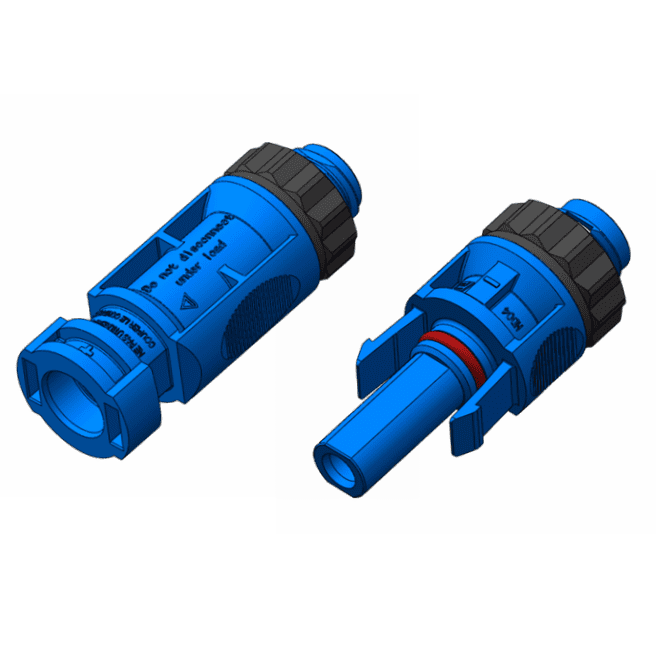

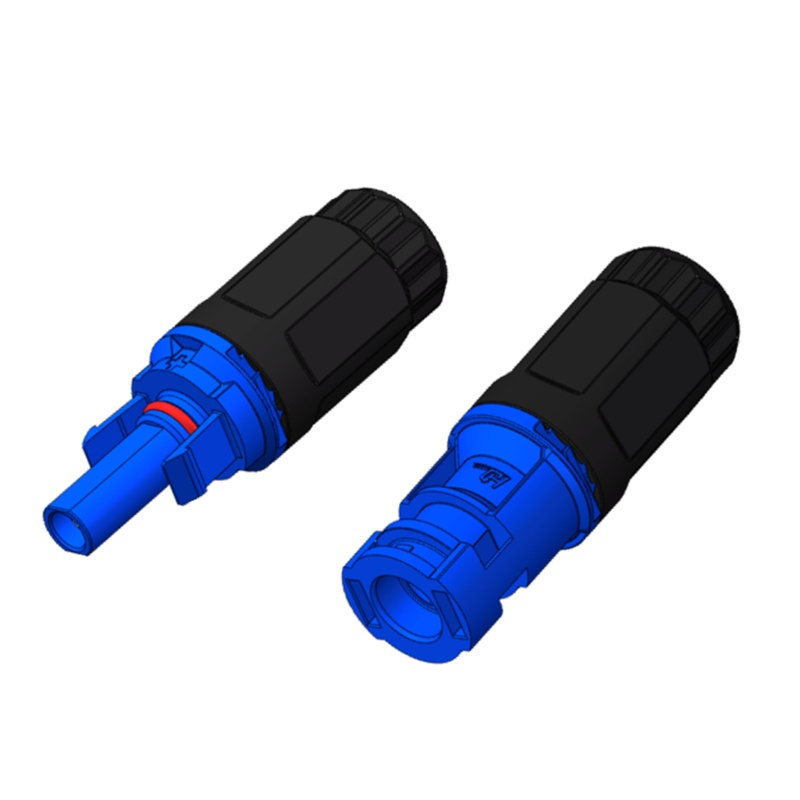

Energy Storge Male Female Cable Connector

Handa HD brand ES Cable Connectors for battery energy storage system, connecting inverter ES port to the energy storage battery parts, suitable for solar hybird inverters and energy storage inverters. its size is the same as HD PV solars connectors, but with different color for the fool-proofing design, and it's 90 ° degree twisted mating face does not allow for mismatching with PV solar DC connector. This Energy storage connectors not only have both cable male and female connectors, but also has panel mount male and female connectors total 4 pieces as a completely set.

Technical Data

Rated Voltage	1000V DC
Rated Impulse Voltage	12KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.5mΩ

Energy Storage Solar Male Female Panel Mount Connector

Handa HD brand ES Panel Mount Connectors for battery energy storage system, connecting inverter ES port to the energy storage battery parts, suitable for solar hybird inverters and energy storage inverters. its size is the same as HD PV solars connectors, but with different color for the fool-proofing design, and it's 90 ° degree twisted mating face does not allow for mismatching with PV solar DC connector. This Energy storage connectors not only have both panel mount male and female connectors, but also has cable male and female connectors as a completely set.

Technical Data

Rated Voltage	1000V DC
Rated Impulse Voltage	12KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.5mΩ

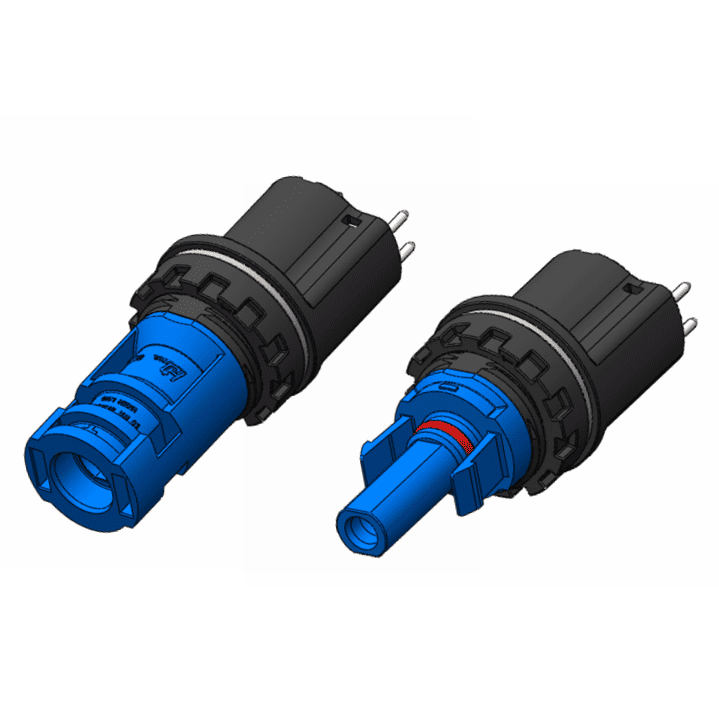

Energy Storage Panel Mount On-Board Connector

Handa HD brand Energy Storage Panel Mount On-Board Connector is the 2nd upgrade version of Handa HD ES Panel Mount Connectors ,updated the size from M12 to M20, the pins is all-in-one style without any breakpoint(Reduce the risk of burning caused by poor contact). Pins soldering directly on the PCB inside of the inverters, saving the inverter inner space without wiring inside.

Technical Data

Rated Voltage	1000V DC
Rated Impulse Voltage	12KV
Rated Current (85℃)	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.3mΩ

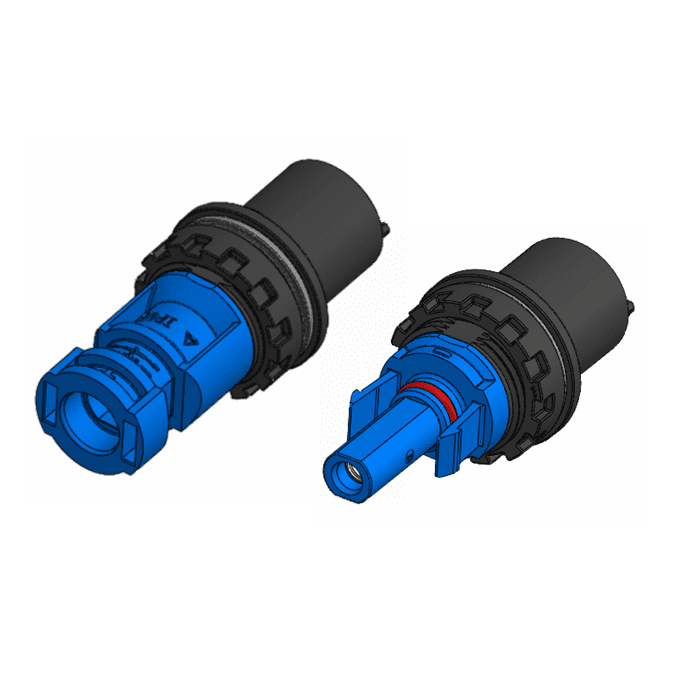

Energy Storage Panel On-Board Conenctor +NTC

Handa HD brand Energy Storage Panel Mount On-Board Connector with NTC is the 2nd upgrade version of Handa HD ES Panel Mount Connectors ,updated the size from M12 to M20, the pins is all-in-one style without any breakpoint(Reduce the risk of burning caused by poor contact). Pins soldering directly on the PCB inside of the inverters, saving the inverter inner space without wiring inside. what's more, it within NTC function integrated, make sure faster temperature monitoring to better protect your solar system.

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current (85℃)	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.3mΩ

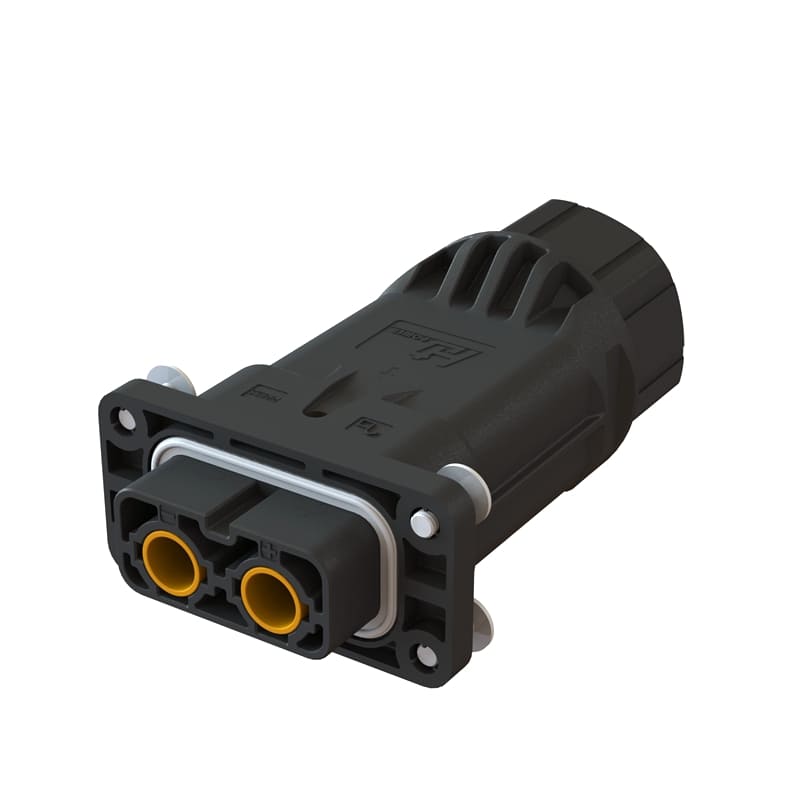

Energy Storage 120A 2Pin Terminal Block Connector

Handa HD brand ES 120A 2Pin Terminal Block Connector for battery energy storage system, connecting inverter ES port to the energy storage battery parts, suitable for solar hybird inverters and energy storage inverters. It integrated both positive pole and negative pole 2 pins together with rated amperage 120A, panel inside for both wiring or copper plate connection.

Technical Data

Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	6KV
Rated Current	100A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	III/ 2

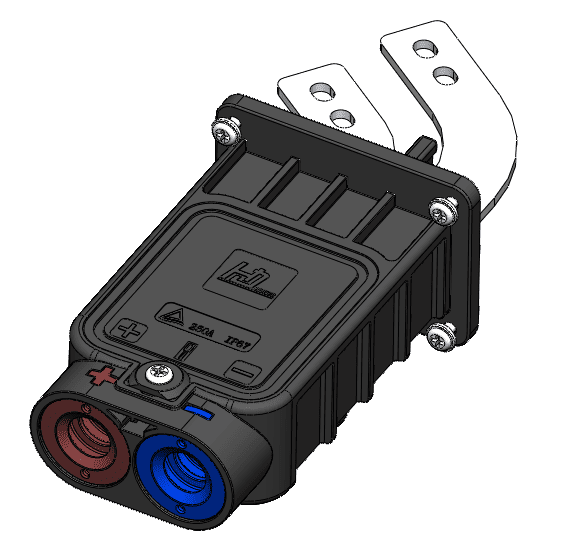

Energy Storage 250A 2Pin Terminal Block Connector

Handa HD brand Energy Storage 250A 2Pin Terminal Block Connector for battery energy storage system, connecting inverter ES port to the energy storage battery parts,is the larger one than 120A 2pin ES terminal block connectors, suitable for solar hybird inverters and energy storage inverters within big capacity batteries. It integrated both positive pole and negative pole 2 pins together with rated amperage 120A, panel inside for both wiring or copper plate connection.

Technical Data

Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV
Rated Current	250A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	II / 2

Handa HD Solar Connectors for Various Application Scenarios

HD Solar Connectors, Make Connection Simplier

HANDA Power Technology, excels as a leading global manufacturer of solar connectors. In addition to our comprehensive product portfolio, which includes solar PV connectors, solar AC power connectors, solar communication connectors, and solar energy storgae connectors. Besides the diverse standarded solar connectors, HD specialize in customized connectors and solutions tailored for harsh environments. This adaptability and innovation in our product range address the specific needs of diverse solar industry applications such as household roof, balcony,PV farm,solar smart bracket system, commercial and industrial solar system and other demanding solar applications.
