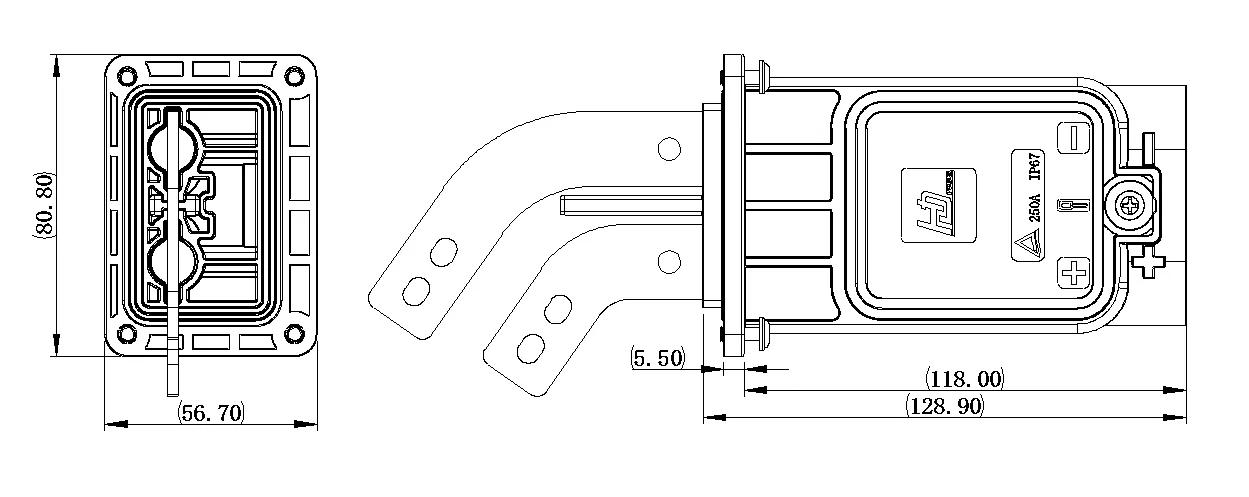

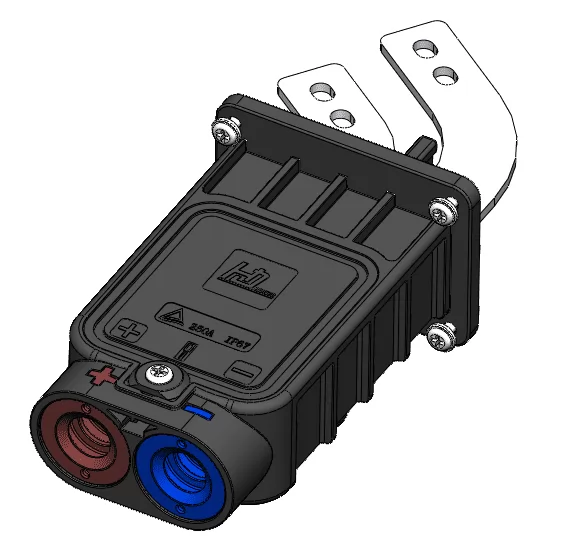

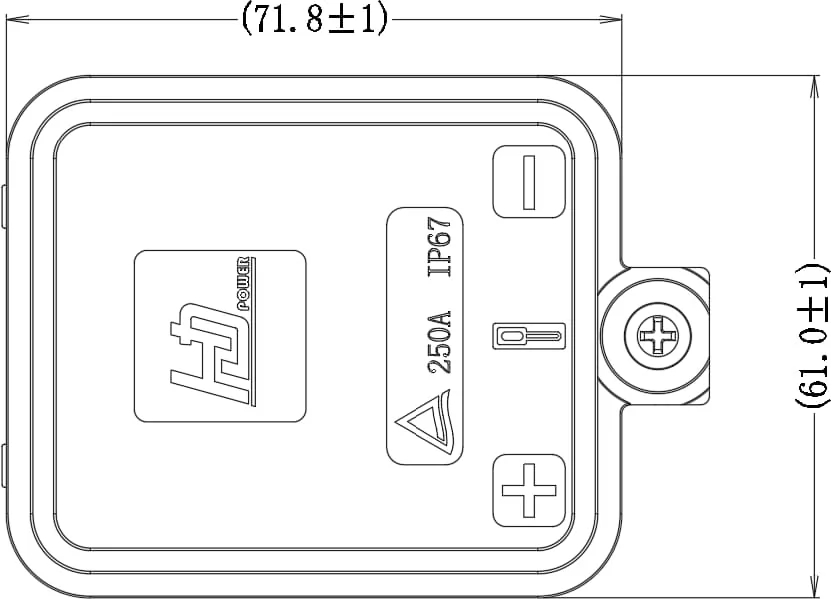

Energy Storage 250A 2Pin Terminal Block Connector

Handa HD brand Energy Storage 250A 2Pin Terminal Block Connector for battery energy storage system, connecting inverter ES port to the energy storage battery parts,is the larger one than 120A 2pin ES terminal block connectors, suitable for solar hybird inverters and energy storage inverters within big capacity batteries. It integrated both positive pole and negative pole 2 pins together with rated amperage 120A, panel inside for both wiring or copper plate connection.

Get a Quote

Technical Data

Model	HDB-100i5
Electrical Specification
Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV
Rated Current	250A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	II / 2
Mechanical Specification
Wire Size	Outside the machine: 70mm².;
Unlock Mode	Tools Unlock
Lock Screw Torsion Force	4.0 ±0.1N·m
Empty lock screw Torsion Force	1.0 ±0.1N·m
Enviromental Specification
Waterproof Rate	IP68 (1m 0.5H)
Application Temperature	-40℃~ 85℃
Flamming Level	UL94-V0
Material
Plastic Material	PC&PBT (f1)
Pin Material	T2,tinned
Sealing Material	Sillicone Rubber
Screw Material	Fe，Zn-Ni Allay Plating
