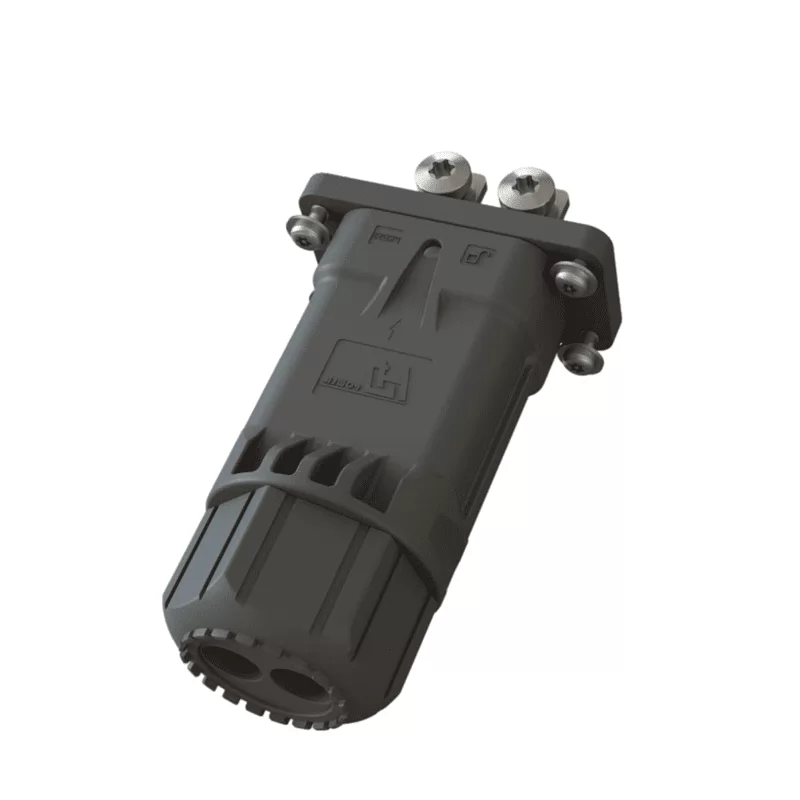

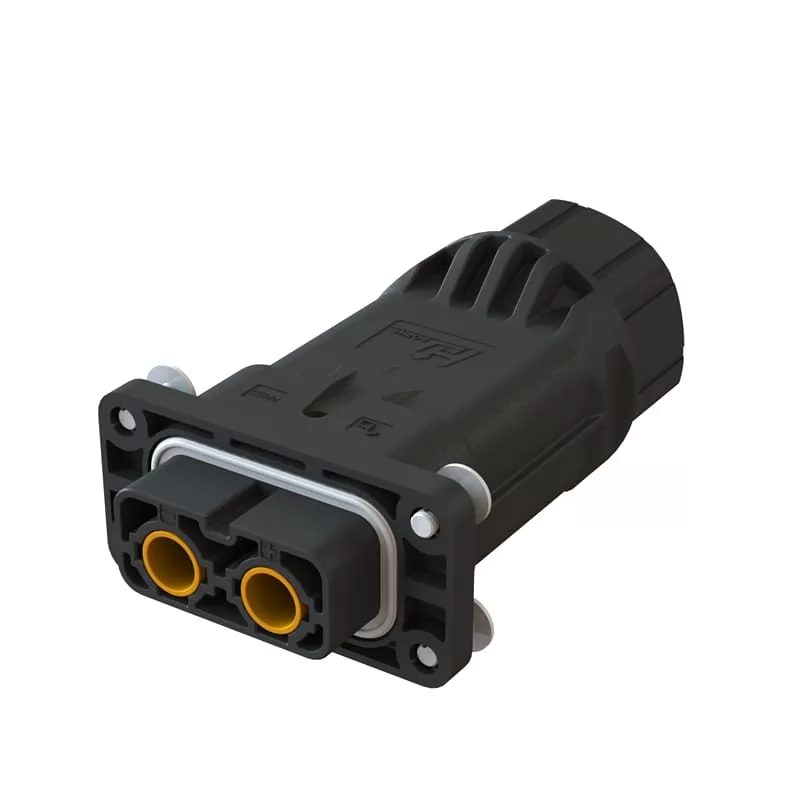

Energy Storage 120A 2Pin Terminal Block Connector

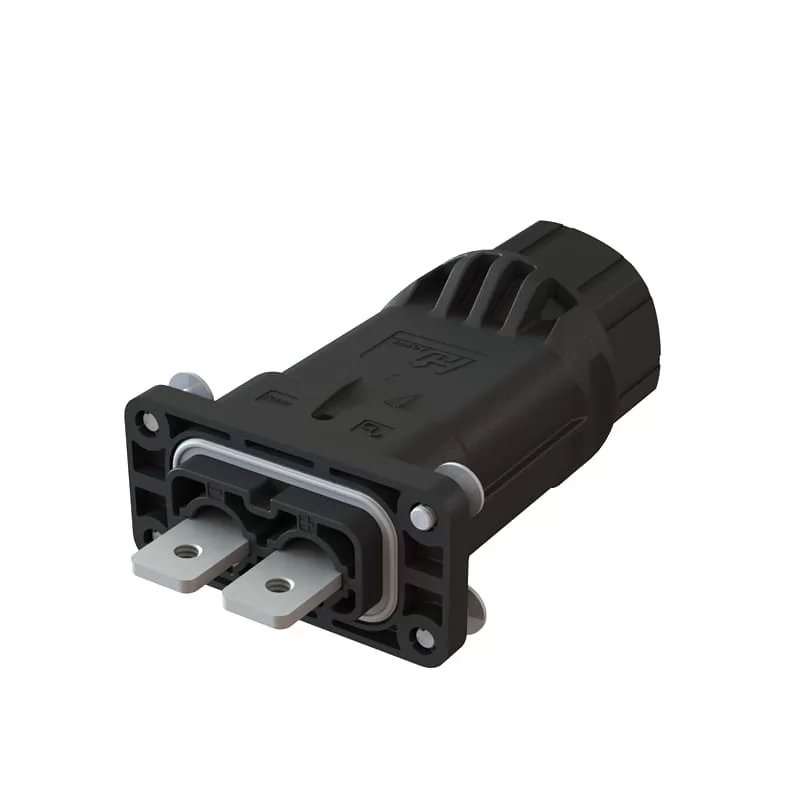

Handa HD brand ES 120A 2Pin Terminal Block Connector for battery energy storage system, connecting inverter ES port to the energy storage battery parts, suitable for solar hybird inverters and energy storage inverters. It integrated both positive pole and negative pole 2 pins together with rated amperage 120A, panel inside for both wiring or copper plate connection.

Get a Quote

Technical Data

Model	HDB-120i2
Electrical Specification
Rated Voltage（III/2)	1000V DC
Rated Impulse Voltage（III/2)	6KV
Rated Current	100A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	III / 2
Mechanical Specification
Mating Cycle	N/A
PIN Retention Force	≥80N
Cable Retention Force	≥120N
Wire Size	outside the machine: 4AWG MAX.(Soft Wire); inside the machine: 10mm²~25mm²(Soft/Hard)
Unlock Mode	Tools unlock
Connector Retention Force	>300N
Connector Pull- Out Force	＜50N
Lock Screw Torsion Force	M6 4.0 ±0.1N·m
Enviromental Specification
Waterproof Rate	IP68 (1m 2H)
Application Temperature	-40℃~ 85℃
Flamming Level	UL94-V0
Material
Plastic Material	PC&PBT (f1)
Pin Material	Copper Alloy,Sn Plating
Sealing Material	Sillicone Rubber
Screw Material	SUS
