AC Terminal Block Connector Manufacturer

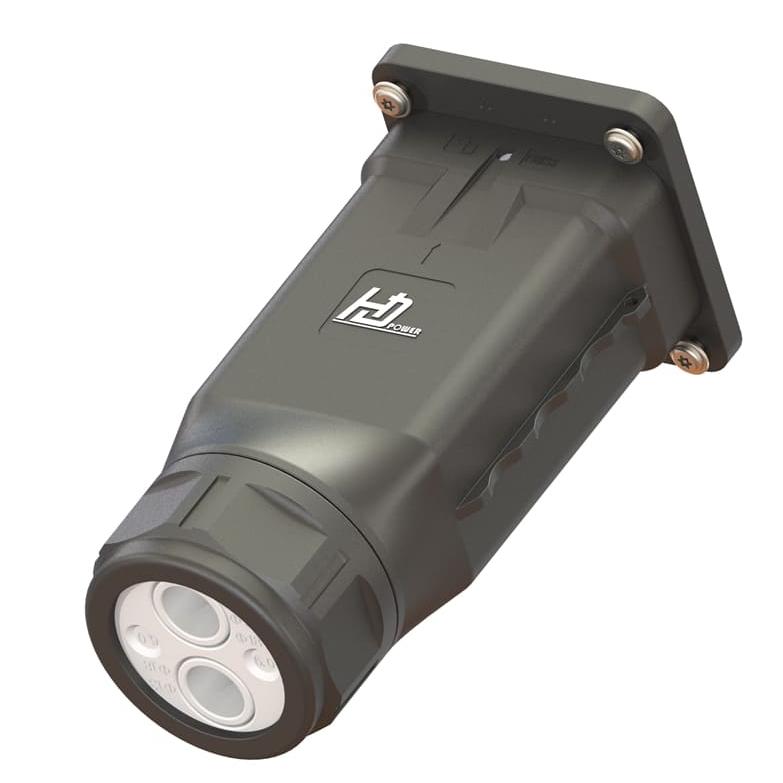

Solar AC 40A 50A 10PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 40A 50A 10pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Three Phases on-grid & Off-grid all-in-one inverter 12-25KW ) AC On-grid & Off-grid/Backup/EPS port(Each port 5pins, total 10pins),Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Rated Voltage	1000V AC
Rated Impulse Voltage	6KV
Rated Current	50A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category/ Pollution Degree	CAT III/2

MORE

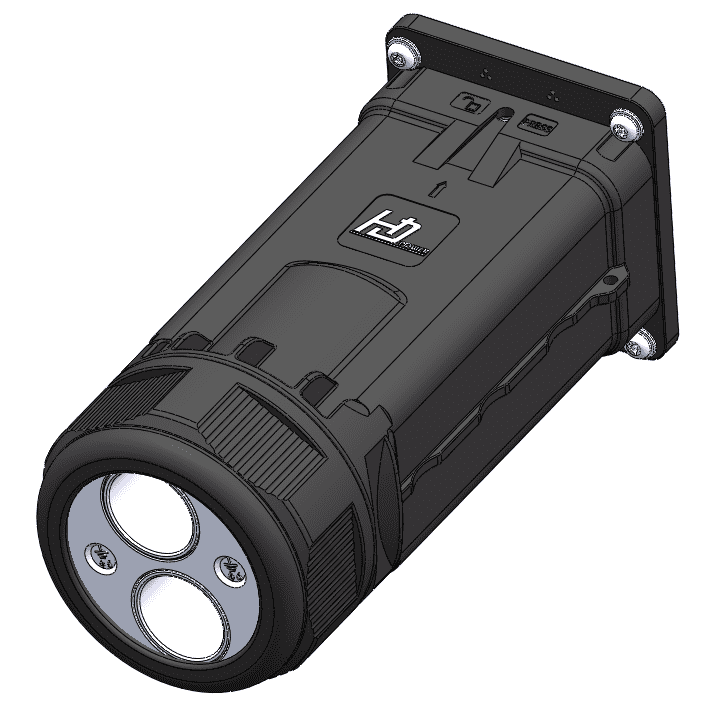

Solar AC 76A 10PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 76A 10pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Three Phases on-grid & Off-grid all-in-one inverter 30KW ) AC On-grid & Backup/EPS port(Each port 5pins, total 10pins),Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Rated Voltage	1000V AC
Rated Impulse Voltage	6KV
Rated Current	76A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category/ Pollution Degree	CAT III/2

MORE

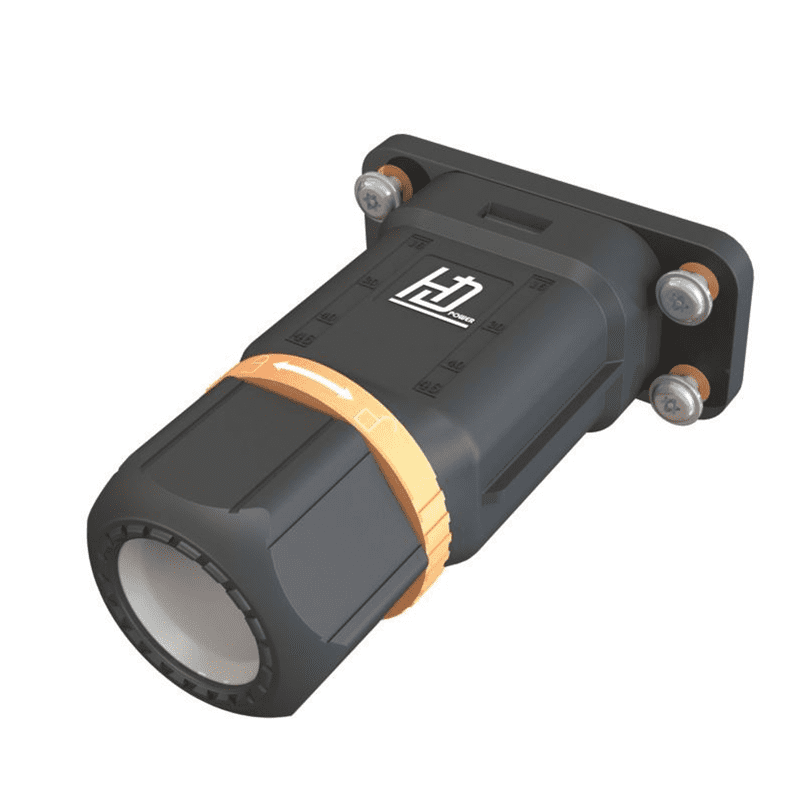

Solar AC 76A 3PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 76A 3pin Rectangle Connector,panel side and cable side installed all-in-one structure, compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Single Phase 8-10KW) AC On-grid port,Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Rated Voltage	1000V AC
Rated Impulse Voltage	8KV
Rated Current	76A（16mm²）
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category/ Pollution Degree	CAT III/2

MORE

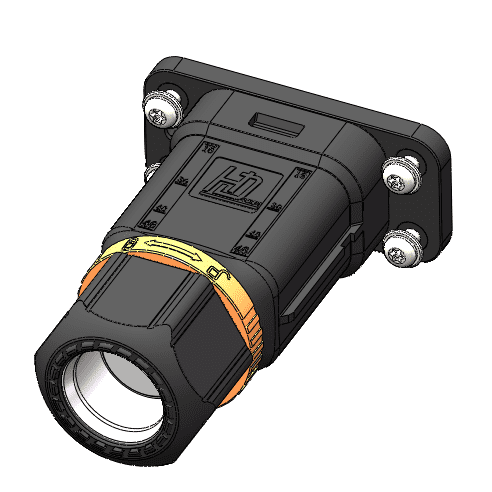

Solar AC 76A 5PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 76A 5pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Three Phases 12-25KW) AC On-grid port,Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Rated Voltage	1000V AC
Rated Impulse Voltage	8KV
Rated Current	76A（16mm²）
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Overvoltage Category/ Pollution Degree	CAT III/2

MORE

Solar AC 100A 5PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 100A 5pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Three Phases inverter 25-40KW), AC port,Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	6KV
Rated Current	100A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	II / 2

MORE

Solar AC 200A 5PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 200A 5pin Rectangle Connector,panel side and cable side installed all-in-one structure, more compact size and more cost-effective for inverter equipment. Is suitable for PV Solar inverter's(Three Phases on-grid & Off-grid all-in-one inverter 50-80KW ) AC On-grid & Backup/EPS port(Each port 5pins, total 10pins),Tool unlocking mode for safe on-site installation,IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Model	HDB-150i5
Unlocking mode	Tools to Unlock
Rated Current	200A
Rated Voltage	1000VAC
Rated impulse Voltage	8KV AC

MORE

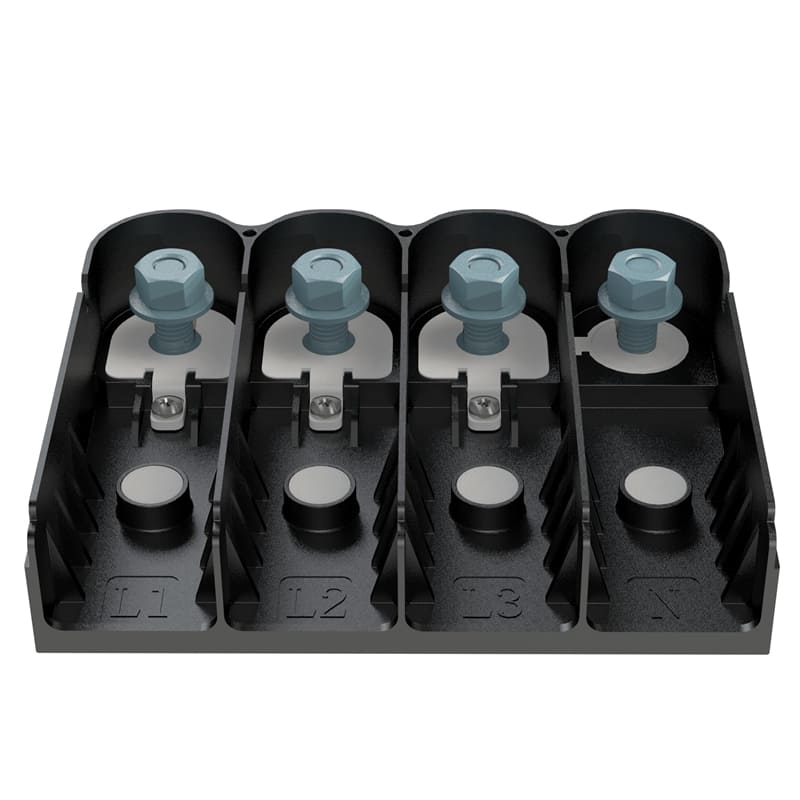

Solar AC 200A 4PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 200A 4pin, L1, L2, L3 and N 4pins screwing locking type, Is suitable for larger capacity industrial and commercial solar inverter's(Three Phases 100-136KW),IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV AC
Rated Current	200A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	III / 2

MORE

Solar AC 300A 3PIN Terminal Block Connector

Handa HD brand Waterproof AC Power Terminal Block Connector 300A 3pin, L1, L2, L3 3pins screwing locking type, Is suitable for larger capacity industrial and commercial solar inverter's(Three Phases 350KW),IP68 high level waterproof wall-through terminal block style, wire harness of this waterproof terminal block can be customized by clients' requirement.

Technical Data

Rated Voltage（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV AC
Rated Current	200A
Insulation Resistance	≥500MΩ
Contact Resistance	≤2mΩ
Overvoltage Category / Pollution Degree	III / 2

MORE
